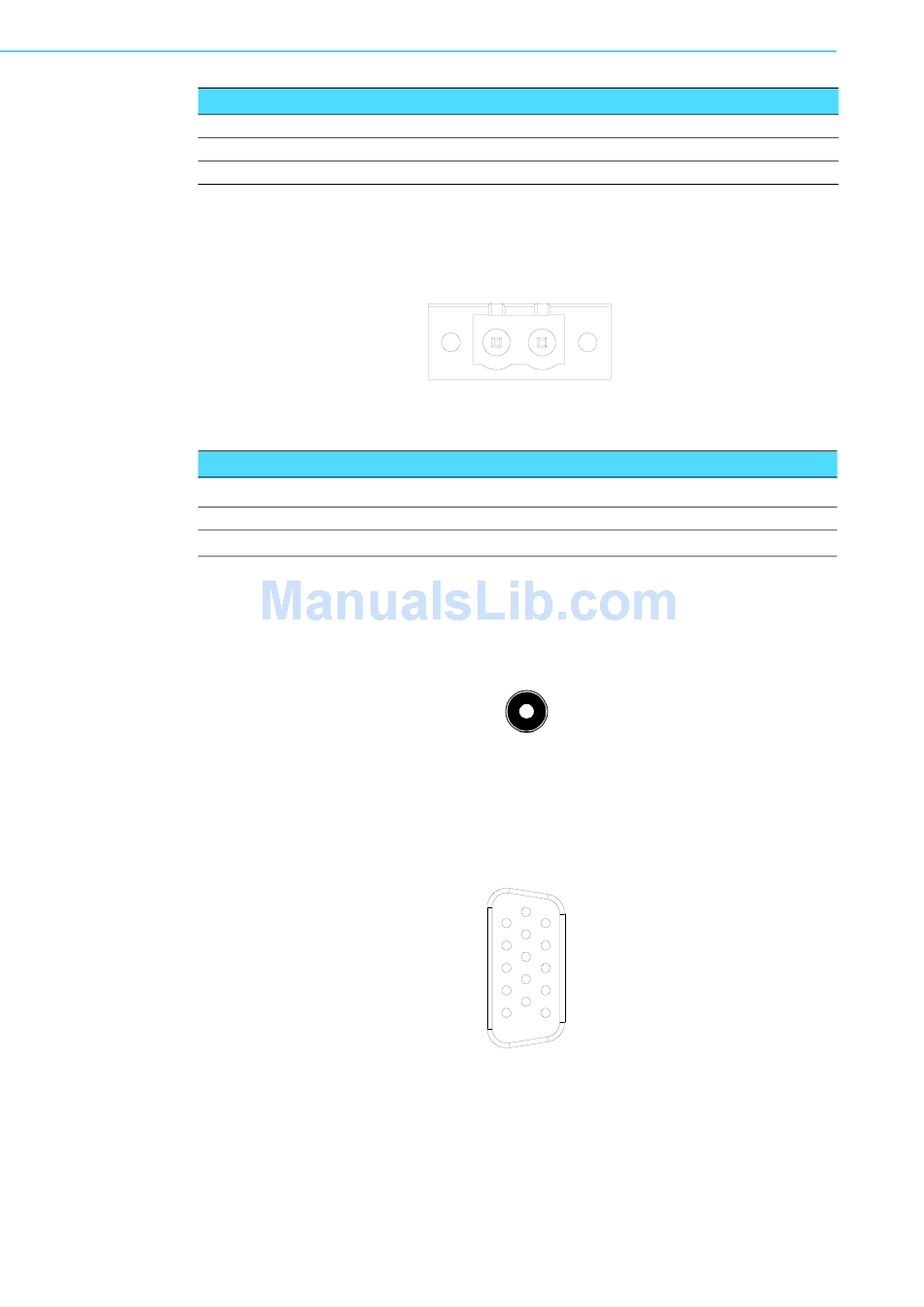

Figure 2.7 2-Pin Header - Advantech AIIS-1200 User Manual

Table 2.7: DP Port Connector Pin Assignments
C1 N/C
C3 N/C
C5 N/C
2.3.1.7 Power Input Connector
AIIS-1200 comes with a four-pin header as default that carries 9VDC - 36VDC exter-
nal power input.
Table 2.8: Pin Assignments for Power Connector Pin Header
Pin
1
2
2.3.1.8 Power ON/OFF button
AIIS-1200 comes with a Power On/Off button with LED indicators on the front side to
show its On status (Green LED) and Off/Suspend status (RED LED), that supports
dual function of Soft Power-On/Off (instant off or delay 4 seconds), and suspend.
2.3.1.9 LED Indicators
AIIS-1200 provides HDD and thermal LED for date transmission status monitoring.
2.3.1.10 DIO connector
AIIS-1200 User Manual
C2
C4

Figure 2.7 2-pin header

Signal Name
GND
+9 V ~ 36 V
DC DC
Figure 2.8 Power Button
5
1
14
N/C
N/C
15
11
