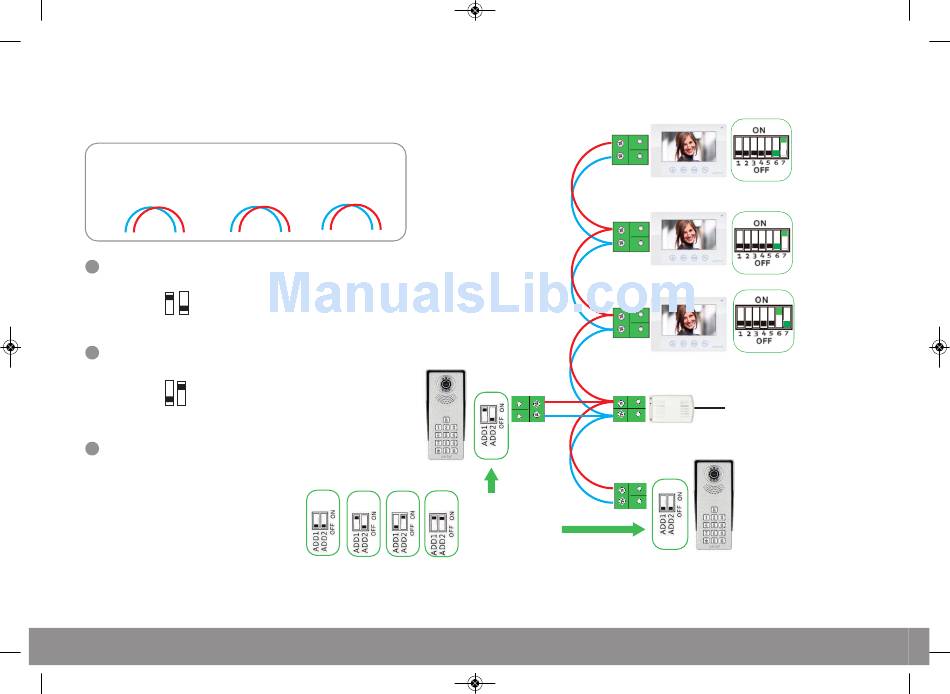

System Connections Example 2

The system power supply can support up to 5 devices
Total cable run
should not exceed Power supply to be
150 meters between with-in 100 meters
door station and monitor
Only one monitor is set as the MASTER:
1
ON
MASTER=
6 7
OFF
2
All other monitors set as SLAVE:
ON
SLAVE=
6 7
OFF
3 Refer to instructions supplied when
using different version of monitor
for MASTER/ SLAVE configuration
6
No cable
or connection
of monitor polarity
Address ID
Address ID Address ID
01
02 03
The dipswitches are accessable
on the rear of the door station
Address ID
02
BUS
Address ID
When using multiple
04
door stations ensure
that each unit has a
seperate Address ID
BUS
SLAVE
BUS
BUS
BUS
240vAC
POWER
SUPPLY
INPUT
Address ID
01
BUS
SLAVE
MASTER
