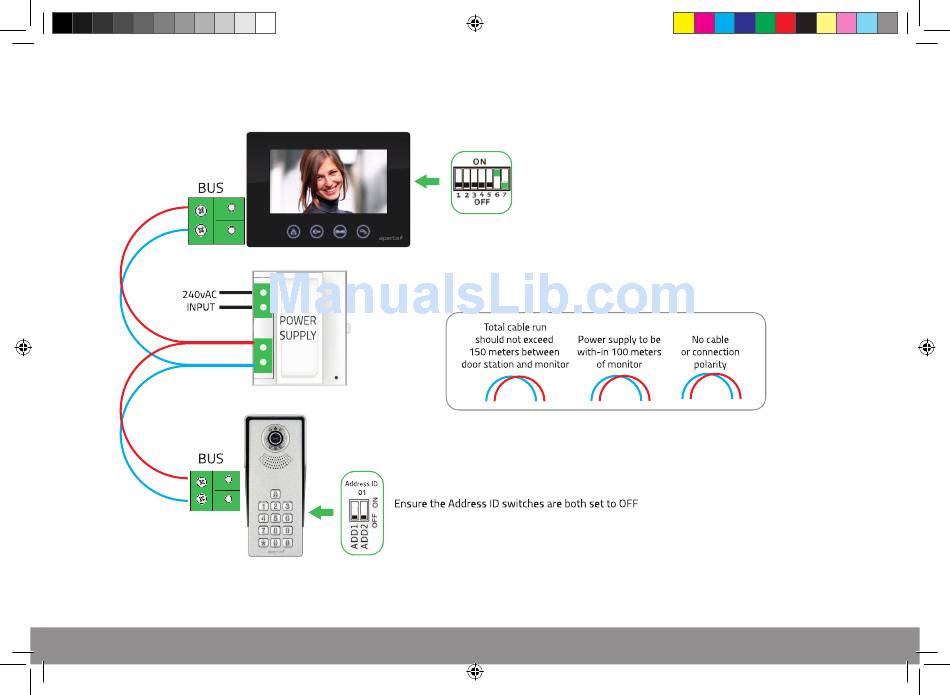

System Connections Example 1

Dip switch 6 set to ON when device is at the end of system line.
Dip switch 7 set to OFF to select monitor as the 'Master'
Only one monitor on the system can be the 'Master'
5
APKITKPBLK Manual.indd 5
26/04/2017 10:00:19
