Saving Data onto a USB Memory Stick
When a USB memory stick is inserted into the connector in front of the instrument an audible click will be heard as the
stick is recognized. Whenever a USB stick is inserted, all data will automatically be saved to the USB memory stick. The
format used is selected from the utilities menu under printer options. The options available are PVC format (the PC PVC
program is used to open the data which can then be printed or exported). TSV tab separated format or CSV comma
separator format can be imported into programs such as Excel. However, CSV format should not be selected when the
number format is set to use a comma instead of a decimal point, otherwise, the data will not load cleanly into Excel.

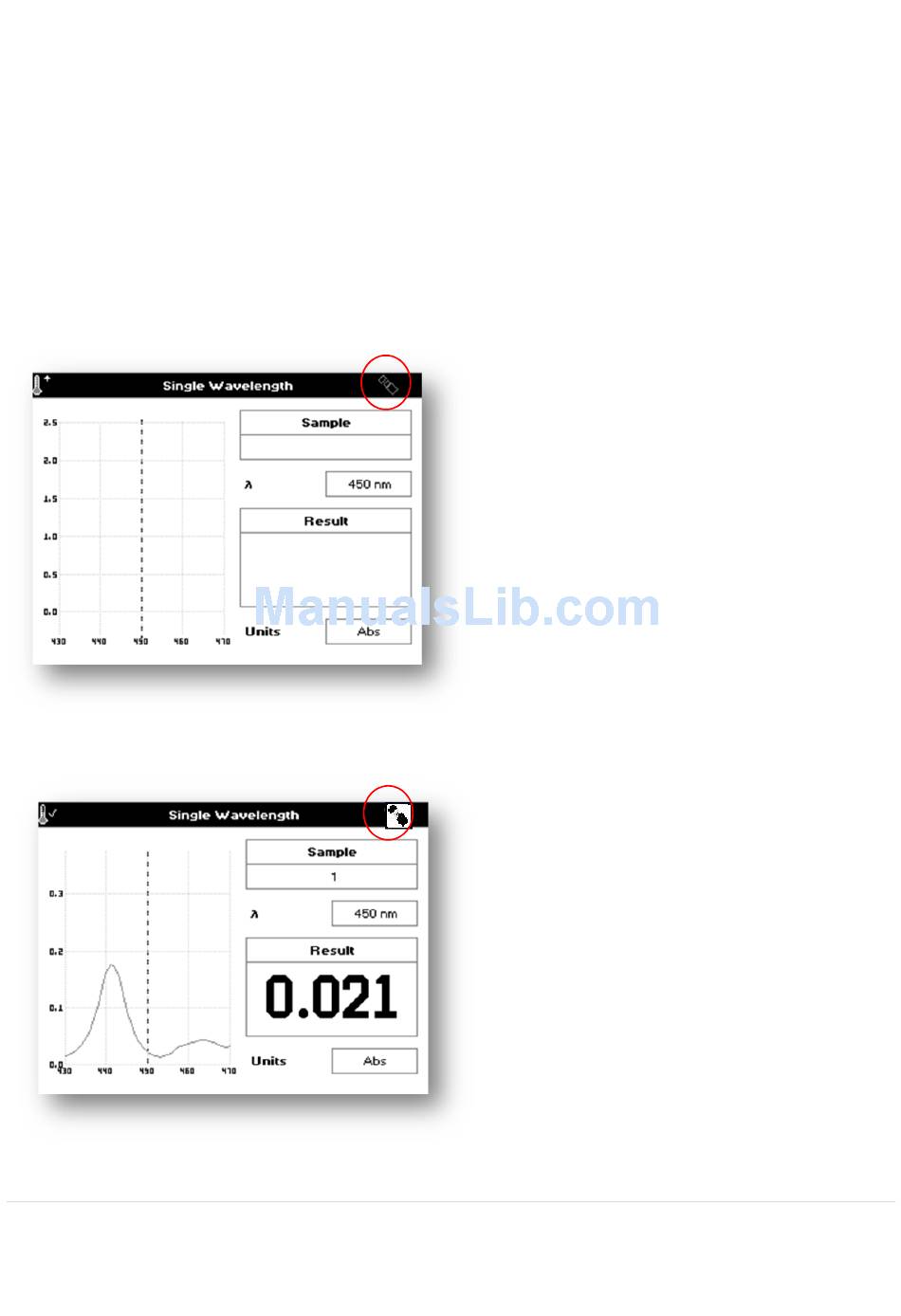

When a USB stick is inserted and an
application selected, an icon will appear on the
top right hand side of the status bar.
When the stick is being written to the icon will
change
30 | P a g e
