Installation
W W ARNING
The earth connection cable cross section must be at least
2
10 mm
or 2 rated mains wires terminated separately
according to EN 50178/IEC 61800-5-1.
2
2
4.
Mount mains plug and tighten wires

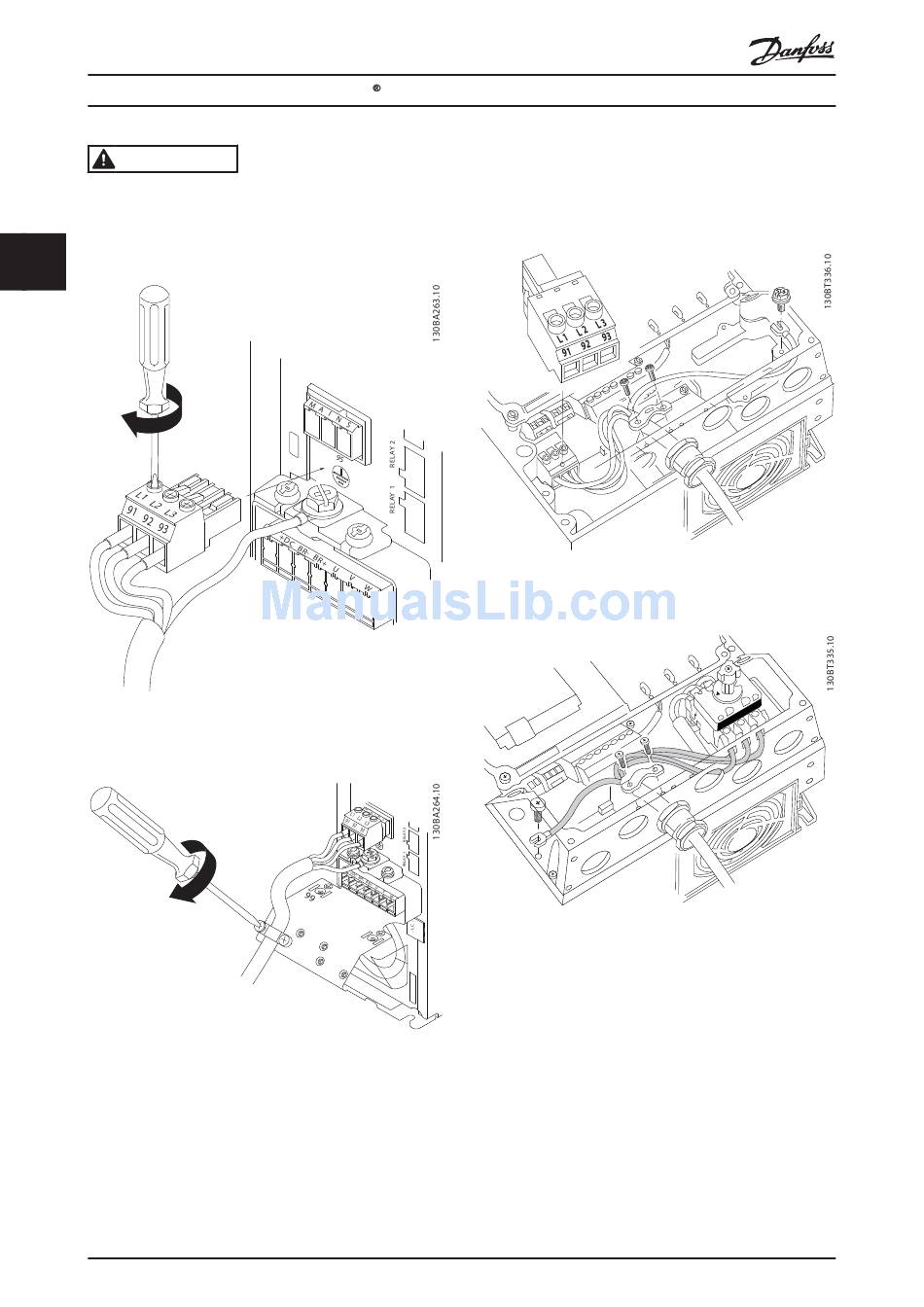

Illustration 2.21 Mains Plug Mounting
5.
Tighten support bracket on mains wires.
Illustration 2.22 Support Bracket Mounting
18
inverter.ru
(812) 702-47-50
VLT Refrigeration Drive FC 103 1.1-90 kW Operating Instructions
2.4.5.2 Mains Connection for A4 and A5
NOTE
A cable clamp is used.
Illustration 2.23 Connection to Mains and Earthing without
Mains Disconnect Switch
Illustration 2.24 Connection to Mains and Earthing with Mains
Disconnect Switch
MG16E202 - VLT® is a registered Danfoss trademark
