Application Set-Up Examples

6.2.2 Single or Multiple Fans or Pumps

The wizard guides through the process of setting up of a refrigeration condenser fan or pump. Enter data about the

condenser or pump and the refrigeration system on which the frequency converter will be running. All terminology and

units used within the wizard are common refrigeration type and set-up is thus completed in 10-15 easy steps using two

keys on the LCP.

gL/UR

91 92 93

Alarm

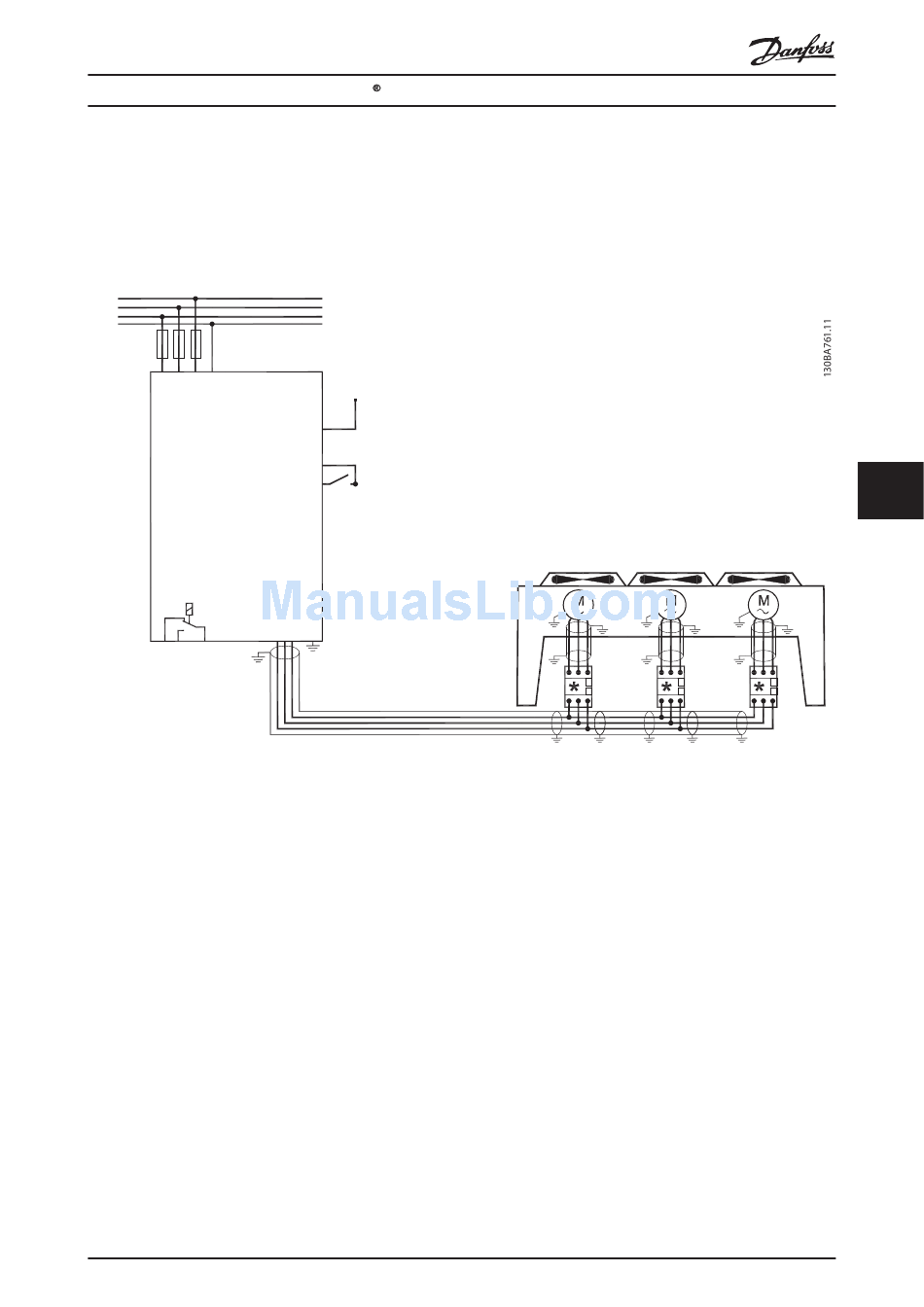

Illustration 6.2 Speed Control Using Analogue Reference (Open Loop) – Single Fan or Pump/Multiple Fans or Pumps in Parallel

inverter.ru

(812) 702-47-50

VLT Refrigeration Drive FC 103 1.1-90 kW Operating Instructions

Control signal

0-10 V or

FC 103

4-20 mA

53/54

Start

Motor

U V W PE

96 97 95 93

Cables type: LIYCY

Ltot. max. = 40 mm

MG16E202 - VLT® is a registered Danfoss trademark

Motors insulation class B minimum
