2.4.4.2 Motor Connection for A4 and A5

1. Terminate the motor earth
2. Place motor U, V and W wires in terminal and
tighten
2 2
3. Ensure that the outer insulation of the motor
cable is removed under the EMC clamp

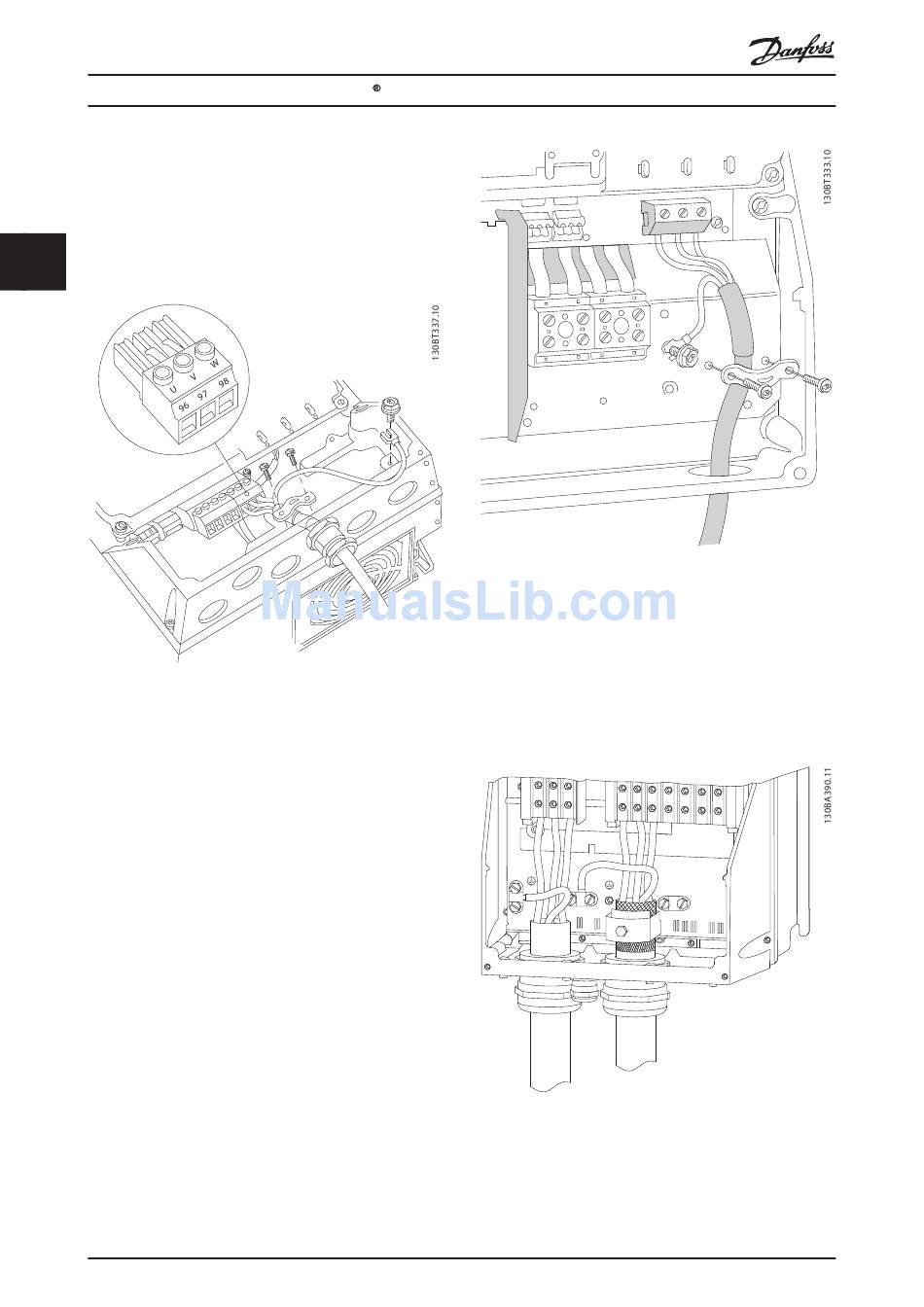

I I llustration 2.15 Motor Connection for A4 and A5

2.4.4.3 Motor Connection for B1 and B2

1. Terminate the motor earth
2. Place motor U, V and W wires in terminal and
tighten
3. Ensure that the outer insulation of the motor
cable is removed under the EMC clamp
16
inverter.ru (812) 702-47-50
VLT Refrigeration Drive FC 103 1.1-90 kW Operating Instructions
Illustration 2.16 Motor Connection for B1 and B2

2.4.4.4 Motor Connection for C1 and C2

1.
2.
3.
Illustration 2.17 Motor Connection for C1 and C2
MG16E202 - VLT® is a registered Danfoss trademark
Terminate the motor earth
Place motor U, V and W wires in terminal and
tighten
Ensure that the outer insulation of the motor
cable is removed under the EMC clamp
