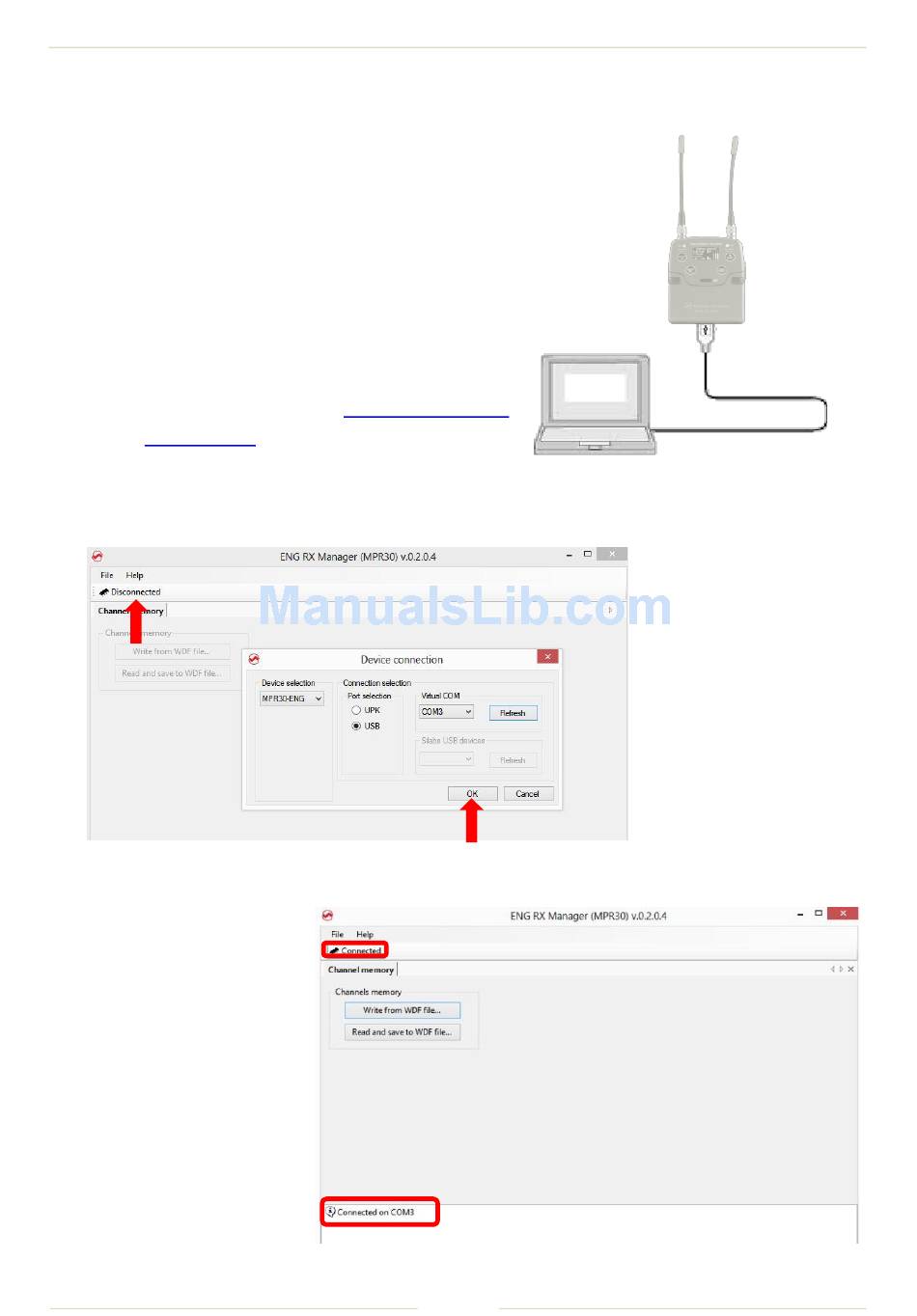

Instruction to connect MPR30 using USB cable:
In order to use the microUSB port to configure the
MPR30, it is necessary to install the MPR30 USB
driver (see How to install MPR30 USB driver)
1.
Connect the MPR30 to the PC thru the
micro USB interface using the USB cable
2.
Check if the version of ENG RX Manager
installed in your PC is the latest version. If
not, uninstall the ENG RX Manager actives
in your PC and install the new version as
indicated in the section
RX Manager .
3.
Run ENG RX Manager
4.
Power up the receiver MPR30
5.
Push Disconnected button. On the Device connection windows select USB port and
6.
If the connection
is ended well, the
Connected icon is
showed on the
top of the panel
and "Connected
on COMx" is
displayed on the
information panel
How to update ENG
Pag. 3
MPR30 Manager
verify that a COMx is
selected on the Virtual
COM panel. If COMx is
not showed, push
Refresh button and/or
try to disconnect and
reconnect the USB cable
connected to the
MPR30. Then click OK.
