DIRECTIONS FOR USE
4/1553-ANF 901 54
D4
2014
01
14
DBC 225 for MX-ONE
twulff
HF
Cecilia Lindgren
QPEHMON
HF
EBC
KCM/DP
DIRECTIONS FOR USE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DBC 225 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aastra DBC 225

Summary of Contents for Aastra DBC 225

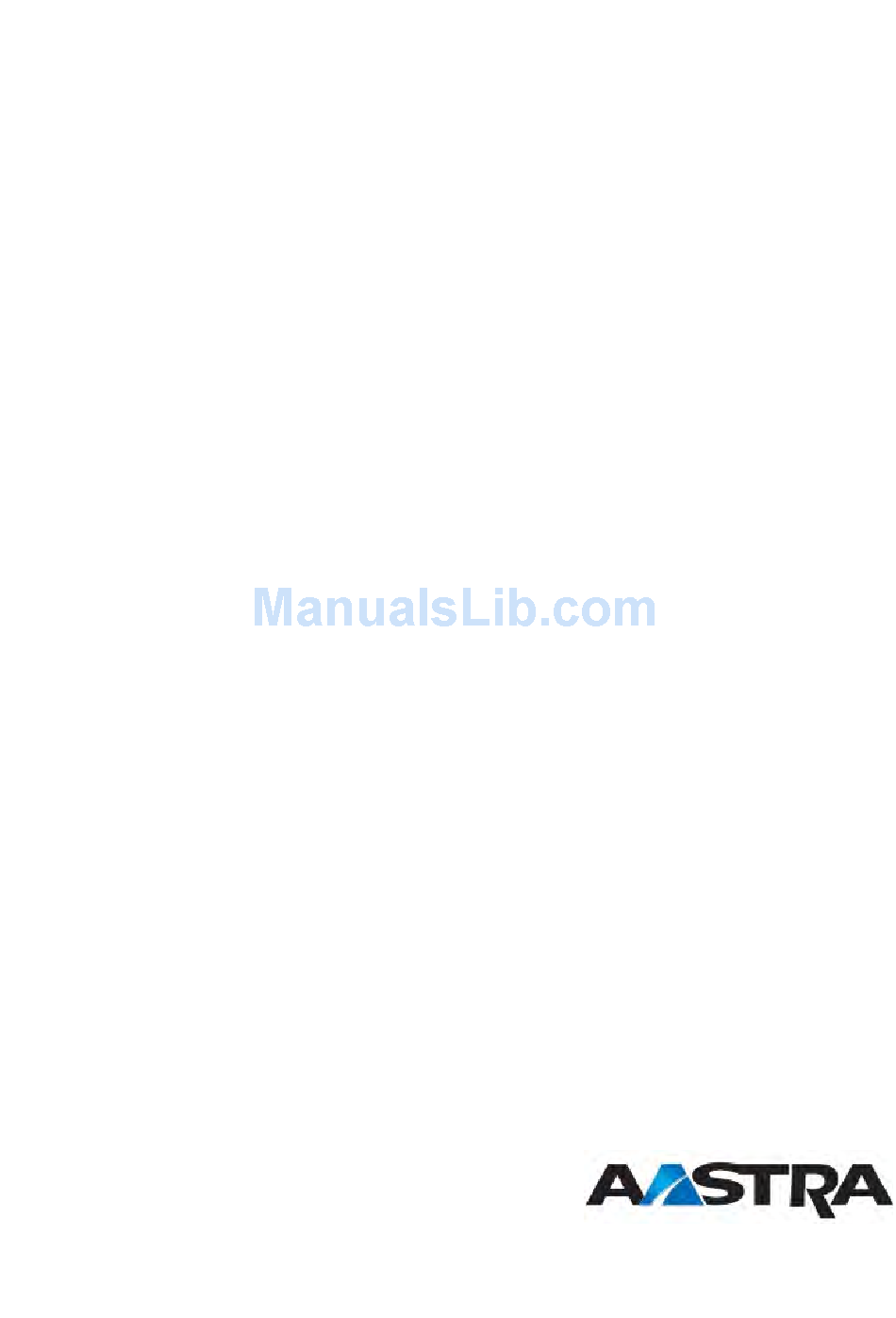

  • Page 1 DIRECTIONS FOR USE 4/1553-ANF 901 54 2014 DBC 225 for MX-ONE twulff Cecilia Lindgren QPEHMON KCM/DP DIRECTIONS FOR USE...
