5.8

Mounting of the device

The NMS5 is delivered in two different packing styles depending on the mounting method of the dis-
placer.
• For the all-in-one method, the displacer is mounted on the measuring wire of NMS5.
• For the displacer shipped separately method, it is necessary to install the displacer on the measuring
wire inside NMS5.

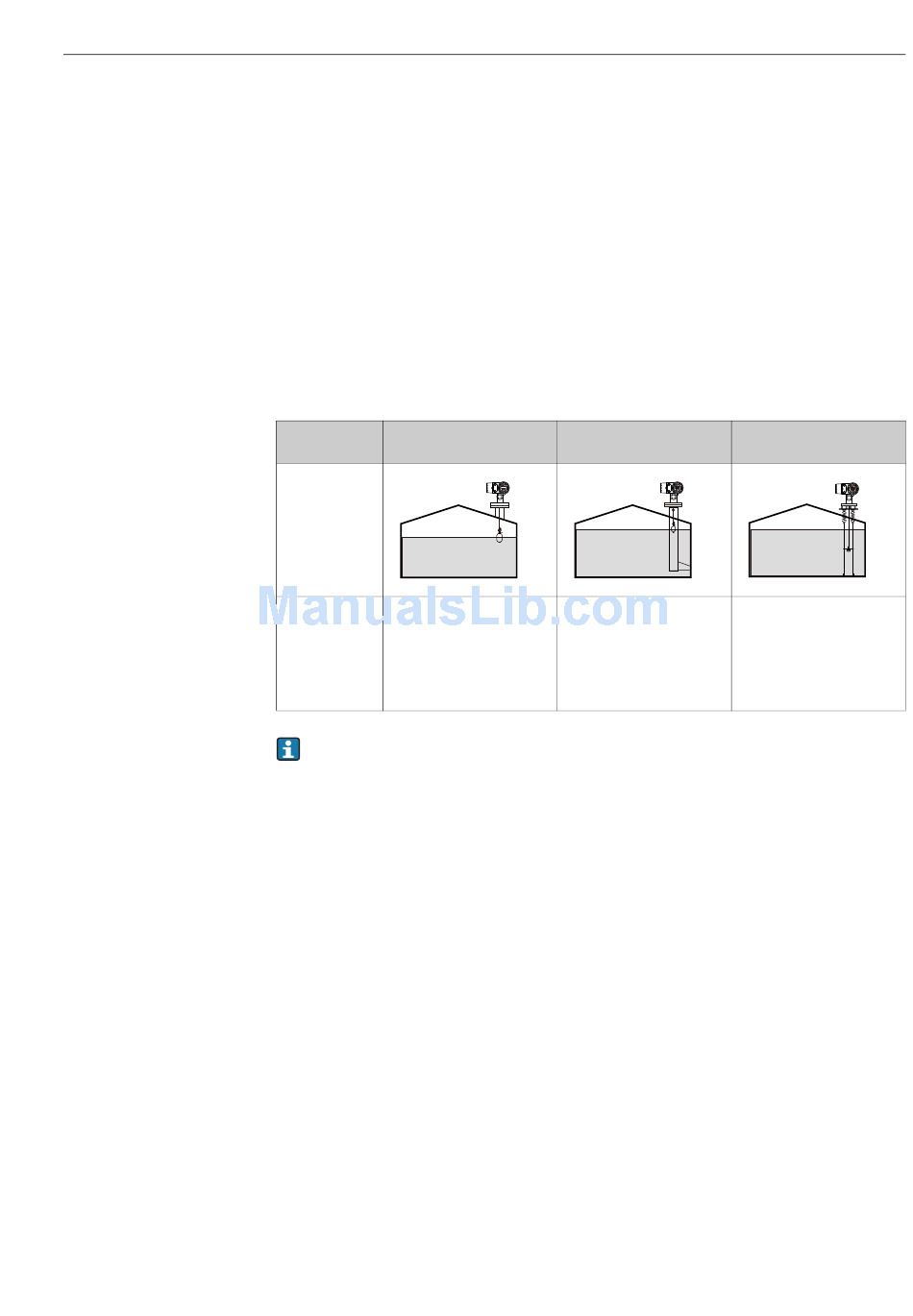

5.8.1 Available installations
The following installation procedures are available for NMS5.
• Mounting without guide system
• Mounting with stilling well
• Mounting with guide wire
Mounting Without guide system
option (Free-space mounting)
Type of tanks
Type of • All-in one
installations
• Displacer shipped sepa-
rately
• Displacer installation
through calibration win-
dow
NMS5 is shipped as an all-in-one package when selected order codes meet all the following conditions:
• Feature 070: C or L
• Feature 090: A, C, E, G, J, L, N, Q or S
• Feature 110: D
• Feature 120: 0, 1, 2, 3, 6 or 8
• Feature 130: A, C, D, G, H, J, L, M, T or U
With stilling well
• All-in one
• Displacer shipped sepa-
rately
• Displacer installation
through calibration win-
dow
5 Installation
With guide wire
Displacer shipped separately
