8.8

Sealing of NMS5

NMS5 can be sealed, and data can be made unchangeable for custody transfer purposes as follows.
Sealing of NMS5 procedure
1. Set OPE. DENSITY at GVH278 as the liquid density (if the density is expected to change during
operation, set the average value.).
2. Turn off the power supply, open NMS5.
3. Turn the micro switch to the "on position" on the printed circuit board TCB (see figure below).
NMS5 will then enter "write-protect" mode and not accept any further level, weight, or density
data changes.
This completes the sealing of NMS5 procedure.
U3
C35
U2
DC-DC Converter

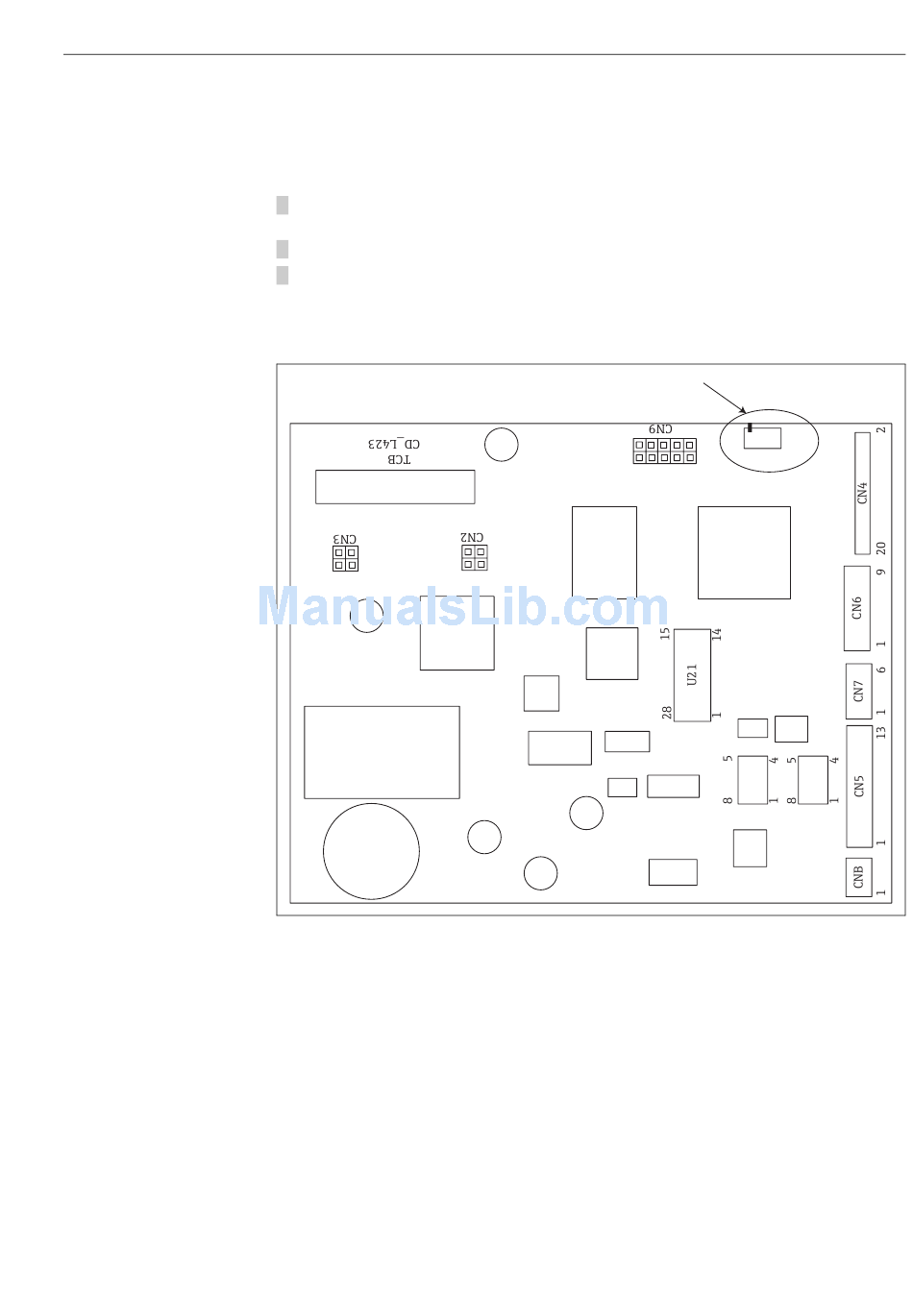

Figure 77: Printed circuit board TCB
Protect switch
C38
U4
U7
U6
1
8 1 7
U12
U24
8 14
8
9 16
U11
9
C16
C7
7
C8
8
8 Commissioning
ON OFF
SW1
U1
4 1
4 1
U20
U19
5 8
5
1
U15 U13
U14
16
U10
1
U9
83
