Mounting with a stilling well

The stilling well diameter that is required to protect the measuring wire without disturbing its opera-
tion varies depending on the tank height. The stilling well could either be of constant diameter, or nar-
rower at its upper part and wider at its lower part. The following figure shows two examples of the lat-
ter case, namely a concentric stilling well and an asymmetric stilling well.
A
D
d
r
D

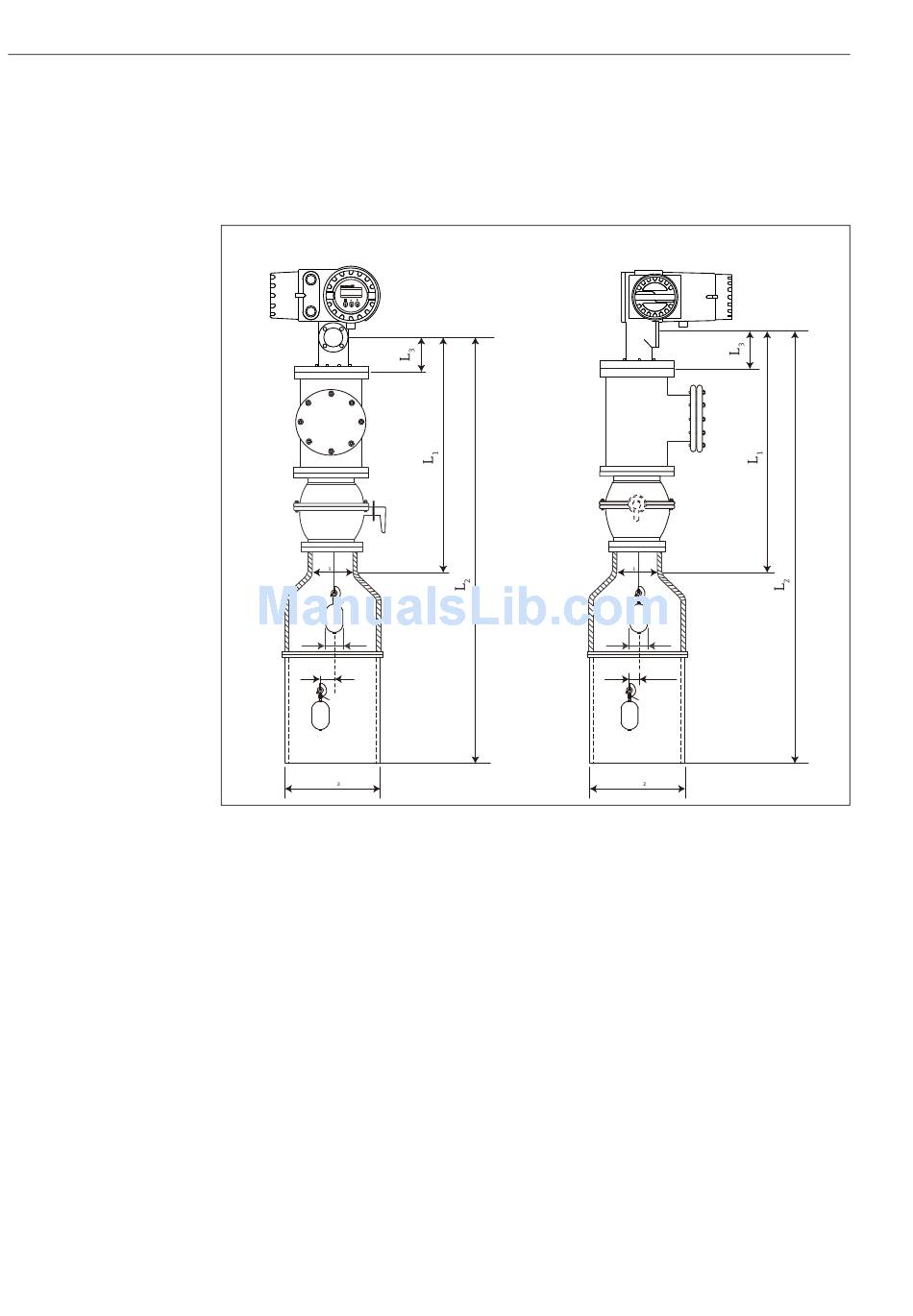

Figure 18: Mounting with connection pipe
A Front view
B Side view
L1 Length from the center of the calibration window to the upper part of the stilling well
L2 Length from the center of the calibration window to the bottom of the stilling well
L3 Length from the center of the calibration window to the bottom of the flange
D1 Diameter of upper part of stilling well
D2 Diameter of stilling well
d Diameter of displacer
p(Lx) Longitudinal wire position from the center of the flange
r Radial direction offset
Proservo NMS5
B
D
d
p (Lx)
D
