15 Appendix
154
15
Appendix
15.1
RS 485 MODBUS (COM- 5) terminator
Terminator switch setting procedure
1.
RS- 485 Communication Module until 2008
Set all slide switch (four bits) turn to ON when termination is required.

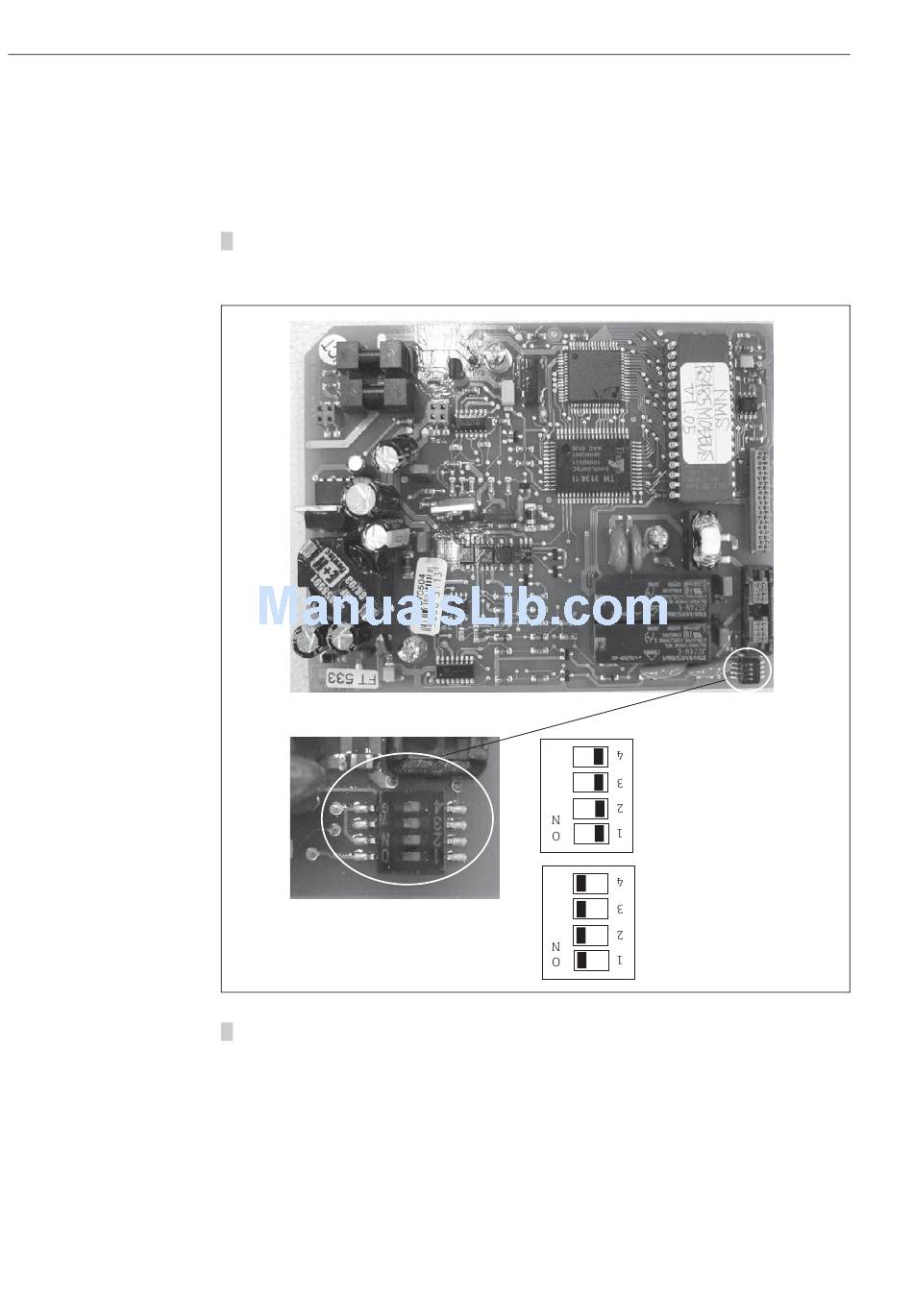

Figure 104: RS-485 communication module
2.
COMM-5 RS- 485 Communication Module from 2009
Proservo NMS5
Terminator Switch OFF
Terminator Switch ON
Endress+Hauser
