Proservo NMS5
Endress+Hauser
PROSERVO NMS53
Order code
Ser. no.
Supply
Measuring range
Displacer weight
Displacer dia.
Measure wire dia.
Density range
Manufacturing date
Test date
Tester
Zero point of liquid level gauge is
under the reference point.
Only read level when indication "BAL" is present.
Ex d IIC T6...T3
ATEX II 1/2 G
KEMA 05 ATEX 2071
Ambient temperature: -20 ∼ +60°C
Process temperature: -200 ∼ +200°C
Certification no.
Tank ID
XA00578G-A/08
Warning: Do not open the cover when energized.
Warning: Do not open the cover when an
exposive atmoaphere is present.
Endress+Hauser Yamanashi Co.,Ltd.
Yamanashi 406-0846

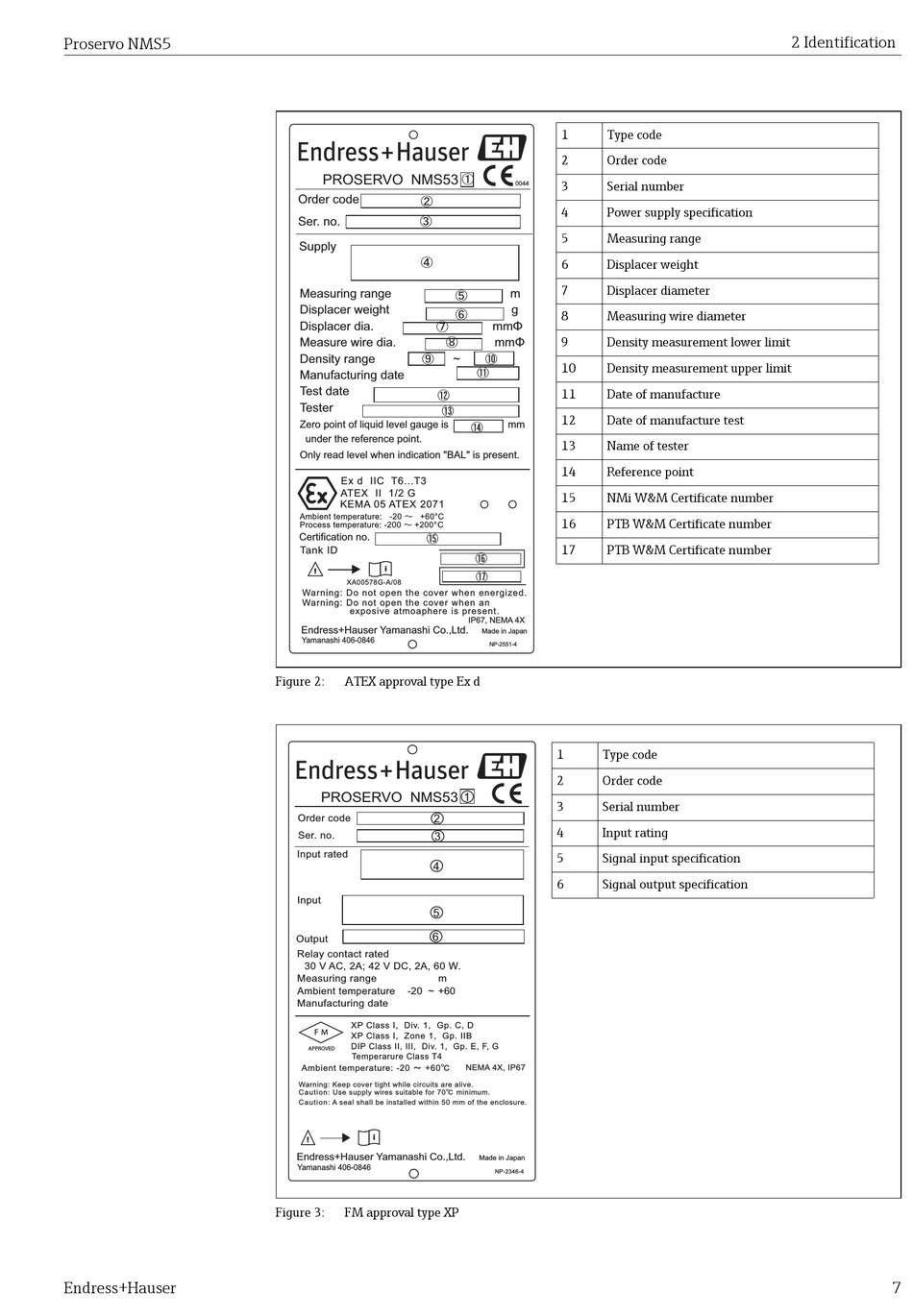

Figure 2: ATEX approval type Ex d
PROSERVO NMS53
Order code
2
Ser. no. 3
Input rated
4
Input
5
6
Output
Relay contact rated
30 V AC, 2A; 42 V DC, 2A, 60 W.
Measuring range m
Ambient temperature -20 ~ +60
Manufacturing date
XP Class I, Div. 1, Gp. C, D
F M
XP Class I, Zone 1, Gp. IIB
DIP Class II, III, Div. 1, Gp. E, F, G
APPROVED
Temperarure Class T4
Ambient temperature: -20 +60
Warning: Keep cover tight while circuits are alive.
Caution: Use supply wires suitable for 70
Caution: A seal shall be installed within 50 mm of the enclosure.
Endress+Hauser Yamanashi Co.,Ltd.
Yamanashi 406-0846
Figure 3: FM approval type XP
1 Type code
2 Order code
3 Serial number
0044
4 Power supply specification
5 Measuring range
6 Displacer weight
7 Displacer diameter
m
g
8 Measuring wire diameter
mm
9 Density measurement lower limit
mm
~
10 Density measurement upper limit
11 Date of manufacture
12 Date of manufacture test
mm
13 Name of tester
14 Reference point
15 NMi W&M Certificate number
16 PTB W&M Certificate number
17 PTB W&M Certificate number
IP67, NEMA 4X
Made in Japan
NP-2551-4
1 Type code
2 Order code
1
3 Serial number
4 Input rating
5 Signal input specification
6 Signal output specification
NEMA 4X, IP67
minimum .
Made in Japan
NP-2346-4
2 Identification
7
