Proservo NMS5
Endress+Hauser
PROSERVO NMS53
Order code
Ser. no.
Supply
Measuring range
Displacer weight
Displacer dia.
Measure wire dia.
Density range ~
Manufacturing date
Test date
Tester
Zero point of liquid level gauge is
under the reference point.
Only read level when indication "BAL" is present.
Ex d IIC T6...T3 Ga/Gb
IECEx KEM 09.0062
Ambient temperature: -20 ∼ +60°C
Process temperature: -200 ∼ +200°C
Certification no.
Tank ID
XA00582G-A/08
Warning: Do not open the cover when energized.
Endress+Hauser Yamanashi Co.,Ltd.
Yamanashi 406-0846

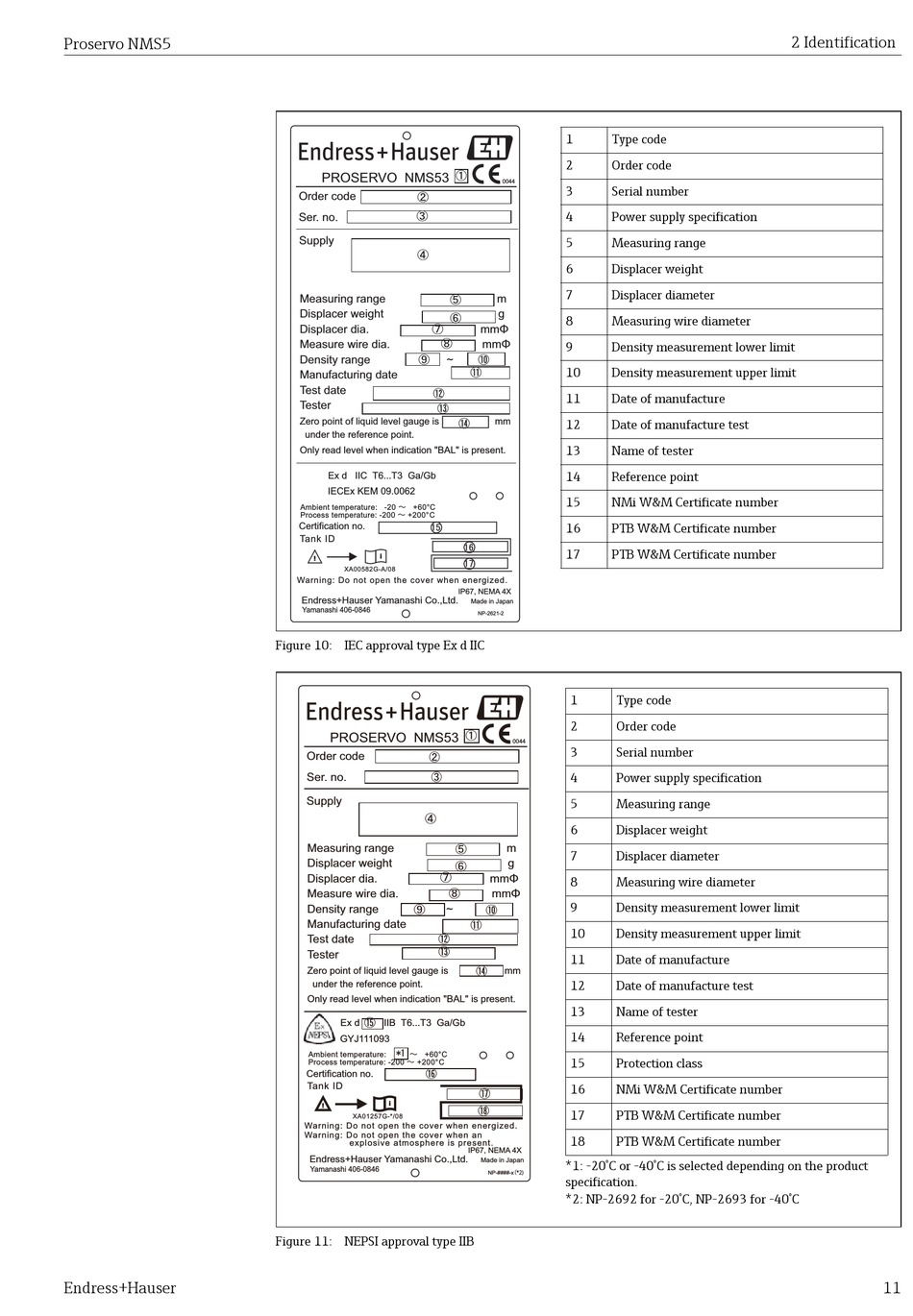

Figure 10: IEC approval type Ex d IIC
PROSERVO NMS53
Order code
Ser. no.
Supply
Measuring range
Displacer weight
Displacer dia.
Measure wire dia.
Density range ~
Manufacturing date
Test date
Tester
Zero point of liquid level gauge is
under the reference point.
Only read level when indication "BAL" is present.
Ex d IIB T6...T3 Ga/Gb
GYJ111093
Ambient temperature: ∼ +60°C
Process temperature: -200 ∼ +200°C
Certification no.
Tank ID
XA01257G-*/08
Warning: Do not open the cover when energized.
Warning: Do not open the cover when an
explosive atmosphere is present.
Endress+Hauser Yamanashi Co.,Ltd.
Yamanashi 406-0846
Figure 11: NEPSI approval type IIB
1 Type code
2 Order code
0044
3 Serial number
4 Power supply specification
5 Measuring range
6 Displacer weight
7 Displacer diameter
m
g
8 Measuring wire diameter
mm
9 Density measurement lower limit
mm
10 Density measurement upper limit
11 Date of manufacture
12 Date of manufacture test
mm
13 Name of tester
14 Reference point
15 NMi W&M Certificate number
16 PTB W&M Certificate number
17 PTB W&M Certificate number
IP67, NEMA 4X
Made in Japan
NP-2621-2
1 Type code
2 Order code
0044
3 Serial number
4 Power supply specification
5 Measuring range
6 Displacer weight
m
7 Displacer diameter
g
8 Measuring wire diameter
mm
mm
9 Density measurement lower limit
10 Density measurement upper limit
11 Date of manufacture
mm
12 Date of manufacture test
13 Name of tester
14 Reference point
15 Protection class
16 NMi W&M Certificate number
17 PTB W&M Certificate number
18 PTB W&M Certificate number
IP67, NEMA 4X
Made in Japan *1: -20°C or -40°C is selected depending on the product
NP-####-x （ *2)
specification.
*2: NP-2692 for -20°C, NP-2693 for -40°C
2 Identification
11
