Mounting without guide system
NMS5 is mounted on a nozzle of the tank roof without a guide system. Sufficient clearance inside the
nozzle is necessary to allow the displacer to move without hitting the inner walls.

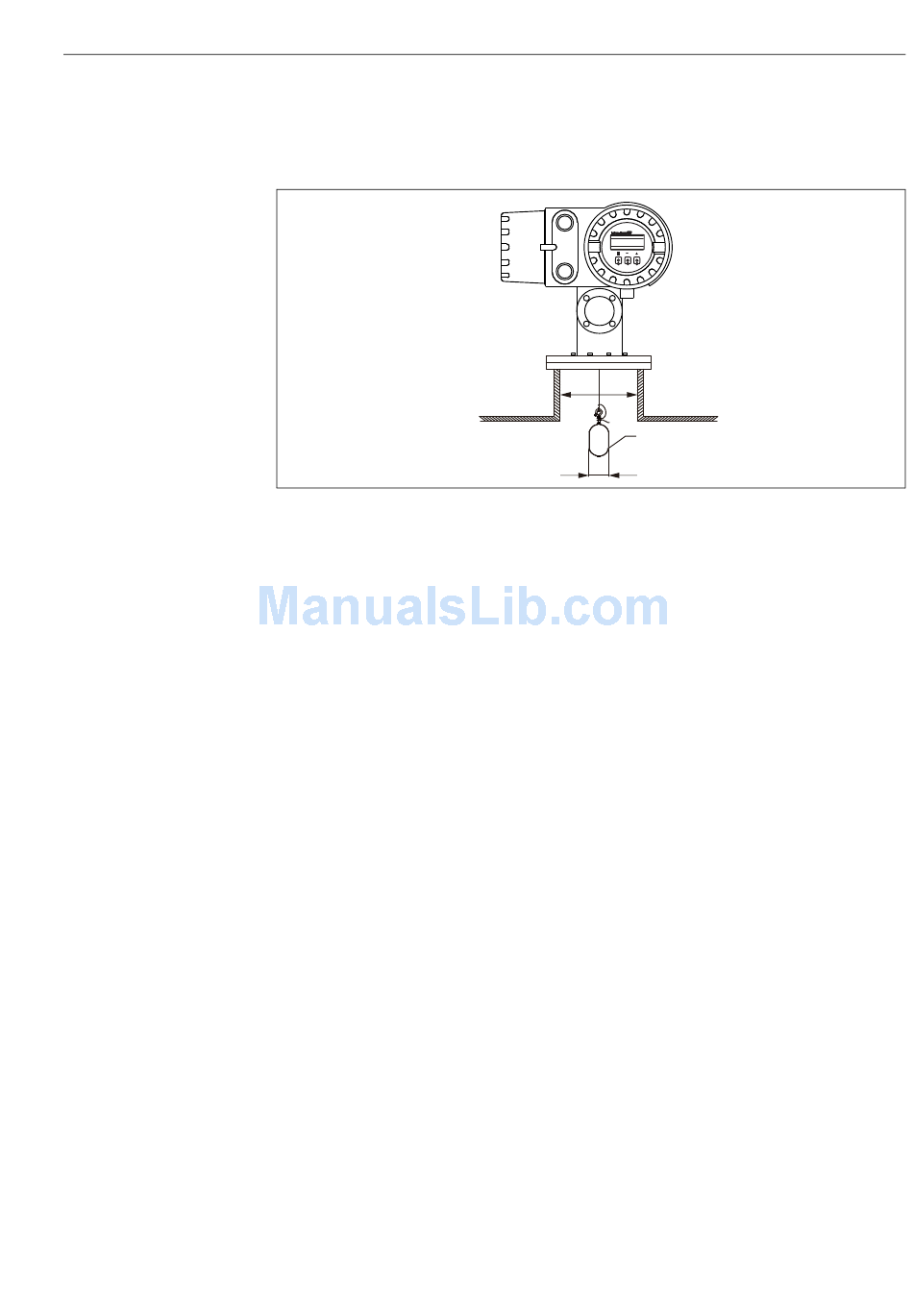

Figure 17: Mounting without guide system
D
Inner Diameter of the tank nozzle
1
d
Diameter of the displacer
1
Displacer
D
1
1
d
