Design And Dimensions - Endress+Hauser Proservo NMS5 Operating Instruction

Proservo NMS5
Max. 39.7 (1.56)
Travel distance of displacer
34.6 (1.36) for 28m (93.33ft)
Wire Ø0.15 (0.0059)
39.7 (1.56) for 36 (120ft)
Wire Ø0.15 (0.0059)
Max. 41.6 (1.64)
Travel distance of displacer
34.6 (1.36) for 28m (93.33ft)
Wire Ø0.15 (0.0059)
39.7 (1.56) for 36 (120ft)
Wire Ø0.15 (0.0059)
41.6 (1.64) for 47m (156.67ft)

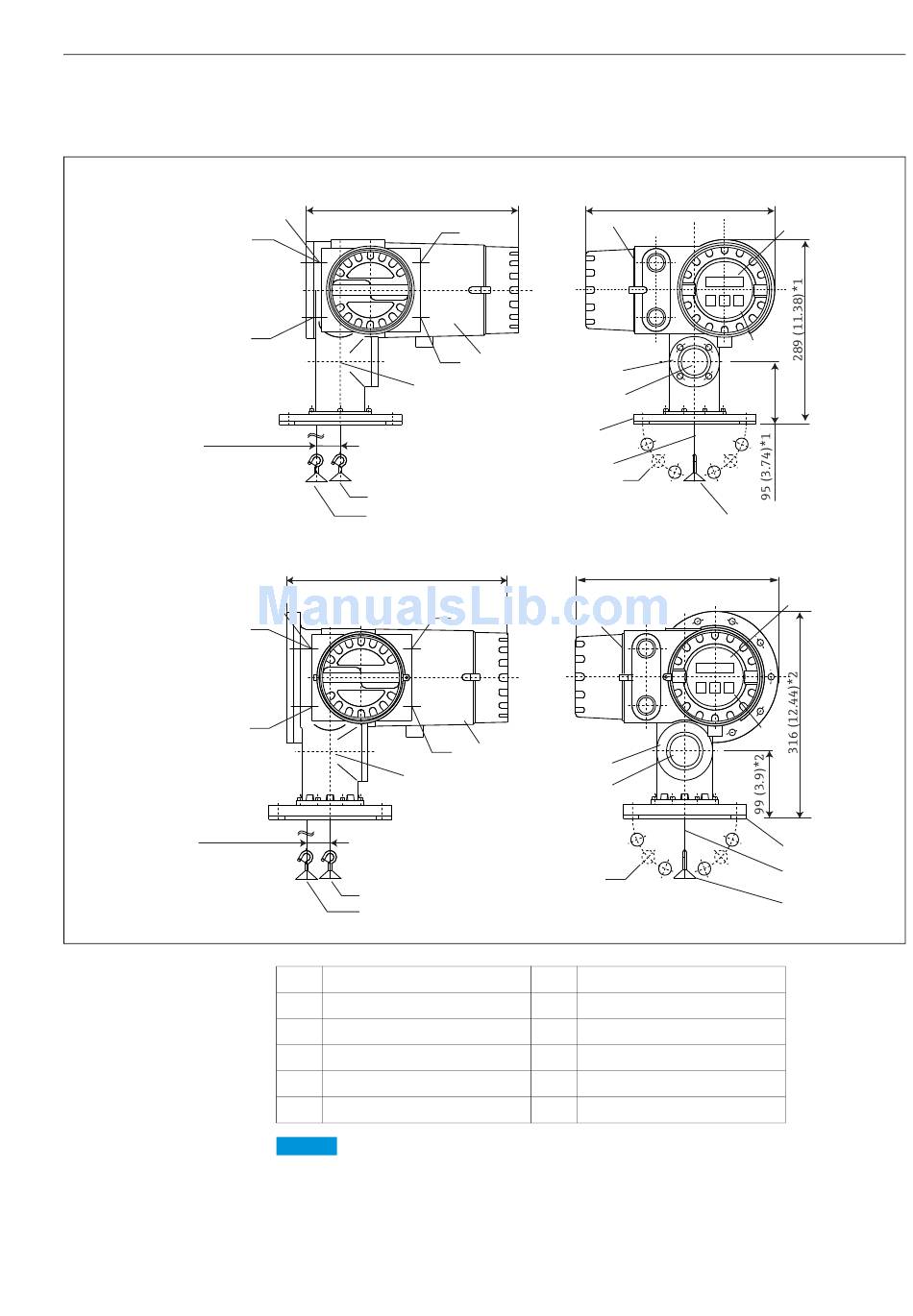

Figure 14: NMS5 dimension, unit
of measurement: mm (in)
Endress+Hauser
3.3

Design and dimensions

NMS5 - 1/ NMS5 - 4
338 (13.31)
4
A
B
5
Displacer position at top of tank (center of flange)
Displacer position at bottom of tank
NMS5 - 2/ NMS5 - 5 / NMS5 - 6
351 (13.82)
4
A
B
5
Displacer position at top of tank (center of flange)
Displacer position at bottom of tank
1 Electrical compartment
2 Terminal box
3 Display (LCD)
4 Cable entry (A, B, C, D)
5 Wire drum housing
6 Flange
NOTICE
*1: In case of 18mm (Flange thickness) at JIS10K80ARF
*2: In case of 20mm (Flange thickness) at JIS20K80ARF
C
2
1
D
10
6
7
8 Holes flange
C
2
D 1
10
9
8 Holes flange
7 Measuring wire
8 Displacer
9 Calibration window
10 Window cover
11 Touch control
301 (11.85)
3
11
9
8
321 (12.64)
11
6
7
8
3 Installation
3
