Operating Basics

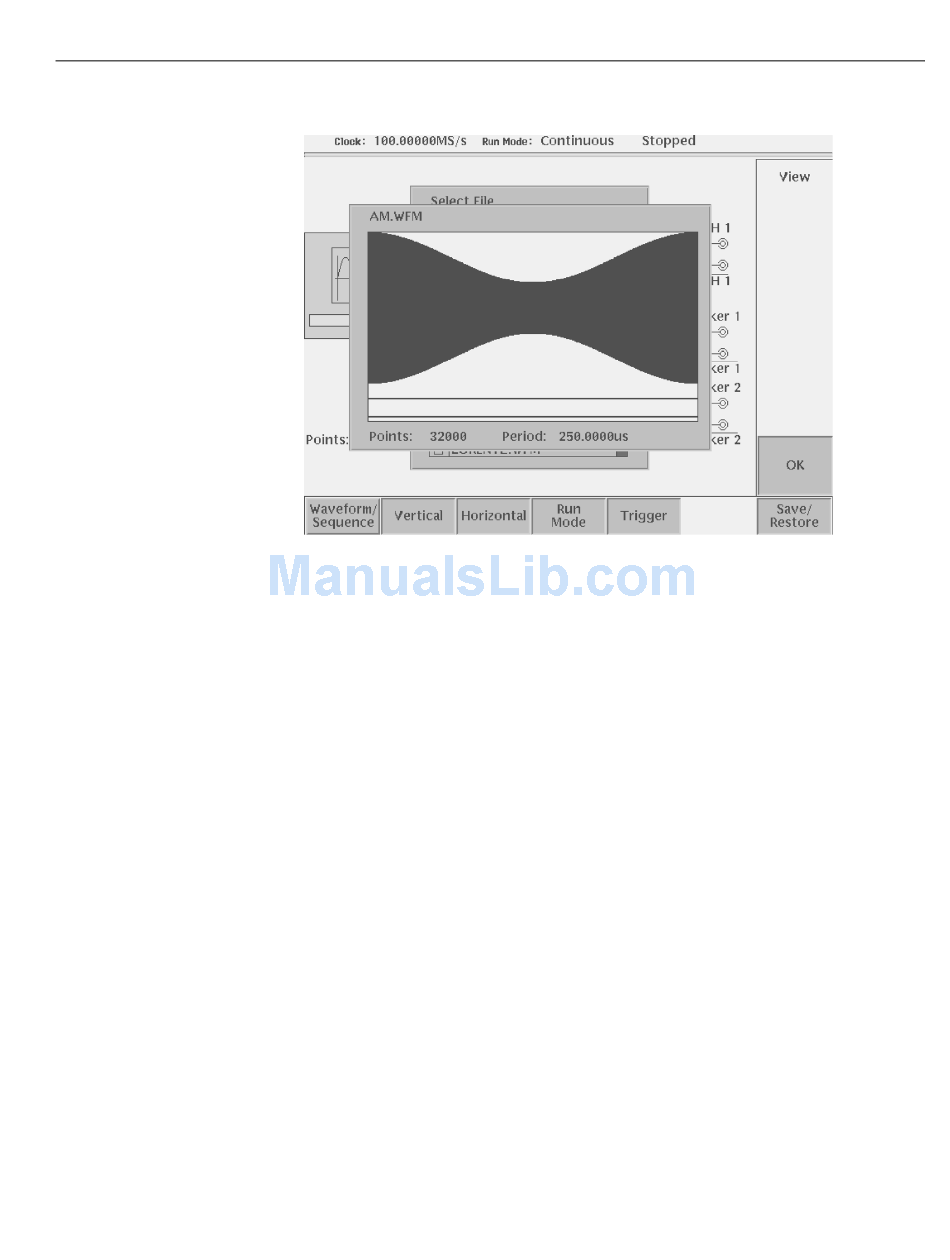

Figure 2-18: Viewing a file by Quick View function

Push the OK side menu button to close the view window. You cannot view files

other than waveform or pattern in this function.

This function is always available when a file list window or file list dialog box is

displayed on the screen.

AWG710&AWG710B Arbitrary Waveform Generator User Manual
