Appendix B: Performance Verification (AWG710B)

External Clock Input and VCO Out Output Tests

Signal Generator
Output
SMA(Female)-BNC
(Male) adapter

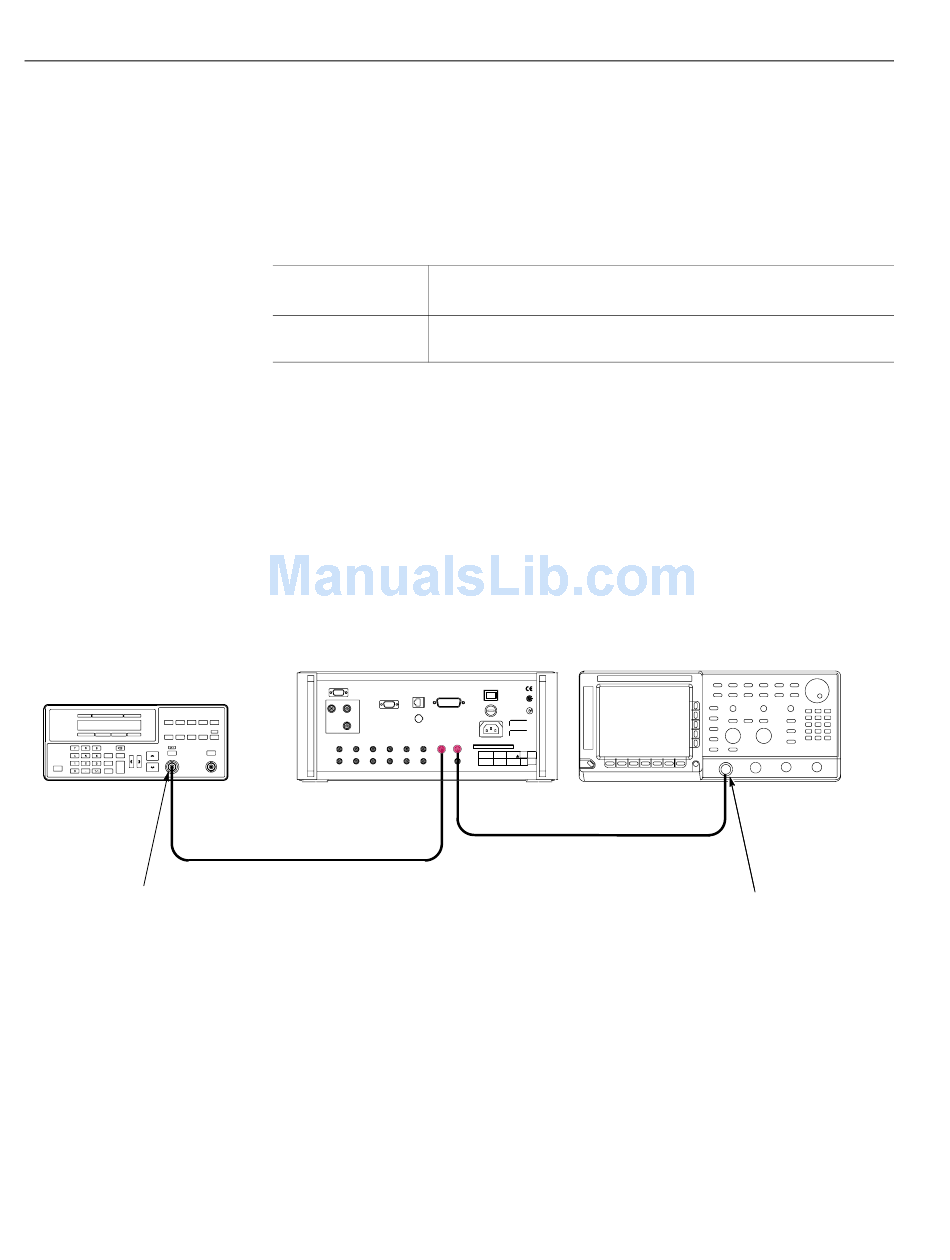

Figure B-31: Trigger input initial test hookup

B-46
These procedures check the external clock input function and the VCO output
function of the AWG710B Arbitrary Waveform Generator.
Equipment
required
Prerequisites
Do the following steps to install the test hookup and set the test equipment controls:
1. Use a 50 Ω SMA coaxial cable and an SMA(Fe)–BNC(Fe) adapter to connect
the AWG710B Arbitrary Waveform Generator VCO OUT output connector to
the oscilloscope CH1 input connector.
2. Use a 50 Ω SMA coaxial cable to connect the AWG710B Arbitrary Waveform
Generator EXT CLOCK IN input connector to the signal generator output
connector.
AWG710B Arbitrary Waveform
Generator rear panel
EXT CLOCK IN
50 Ω SMA coaxial cable
3. Set the oscilloscope controls as follows:
Vertical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CH1
CH1 coupling. . . . . . . . . . . . . . . . . . . . . . . . . DC
CH1 scale . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 mV/div
CH1 input impedance . . . . . . . . . . . . . . . . . . 50 Ω
Horizontal
Sweep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 ns/div
AWG710&AWG710B Arbitrary Waveform Generator User Manual
Two 50 Ω SMA coaxial cables, a SMA(Fe)–BNC(Ma) adapter, a signal
generator, and an oscilloscope (TDS700).
The AWG710B Arbitrary Waveform Generator must meet the
prerequisites listed on page B-7.
VCO OUT
50 Ω SMA coaxial cable
Oscilloscope (TDS700)
CH1 input
SMA(Female)-BNC
(Male) adapter
