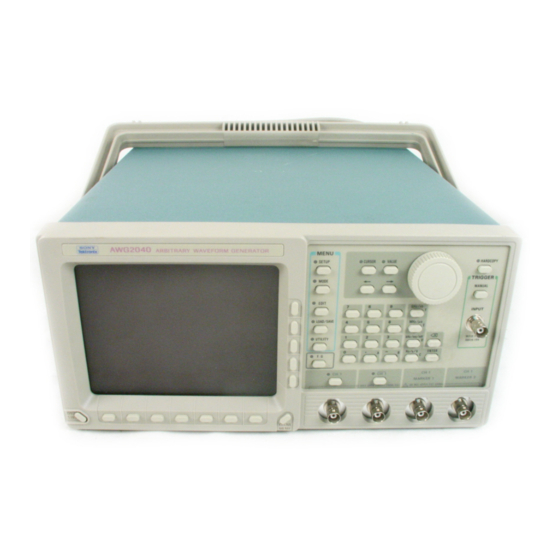

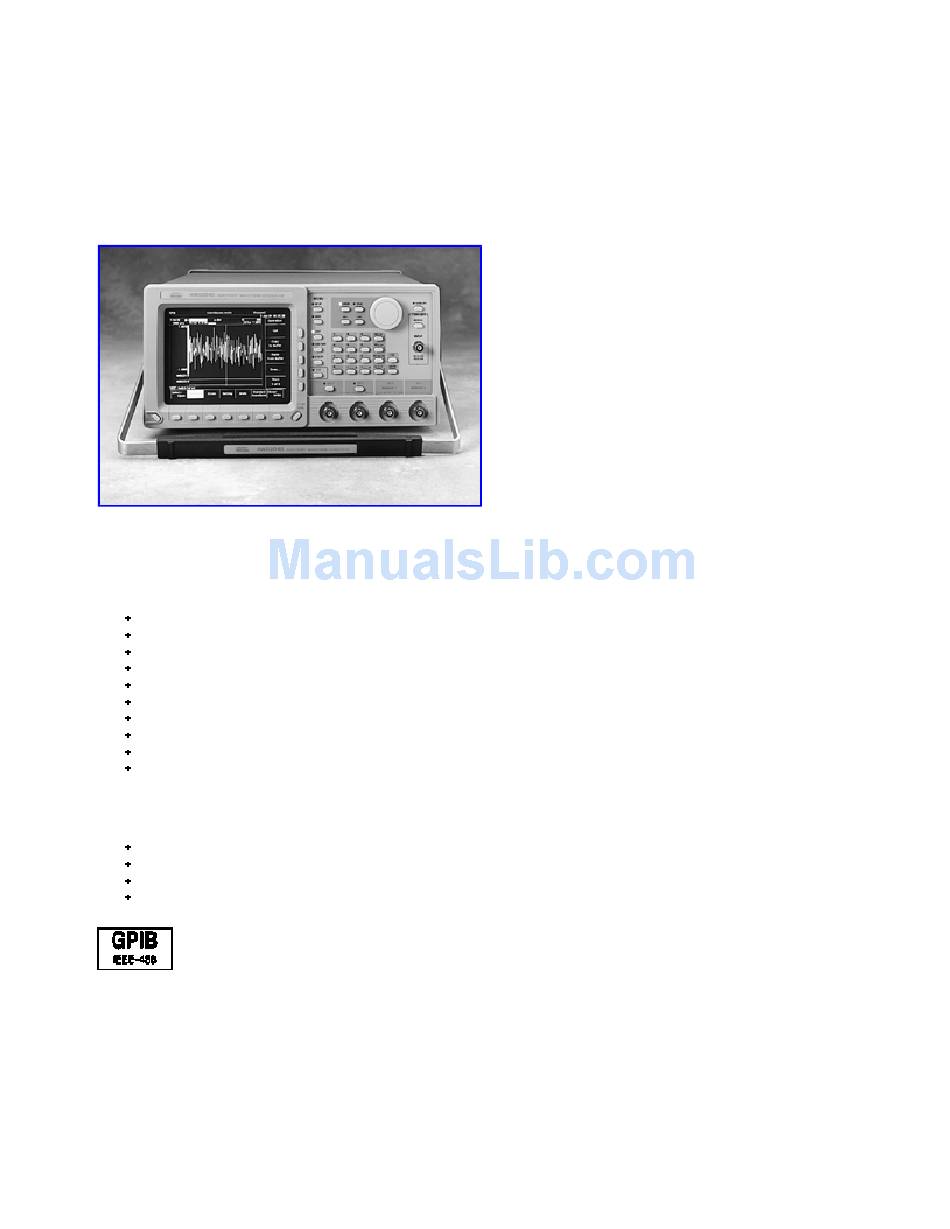

Tektronix: Products > AWG 2040 Arbitrary Waveform Generator
Arbitrary Waveform Generator
AWG 2040
This product is no longer carried in our catalog.
Features
1.024 GS/sec Clock Rate Provides up to 500 MHz Waveforms
1 MB Record Length (4 MB with Opt. 01)
8-Bit (1/256) Vertical Resolution
Direct Waveform Transfers from DSO
Optional 8-Bit Digital Pattern Generator
Built-in 1.4 MB PC-compatible 3.5 in. Floppy Disk for Storage and Transfer
FFT Editor (Opt. 09) Allows Editing in the Frequency Domain
Easily Create Automatic Test Sequences with Waveform Sequencing
Formula Entry of Parameters for Mathematically Precise Waveforms
Fully Programmable from Front Panel, RS-232, or GPIB (IEEE 488.2)
Applications
Broadcast Telecom Test
Network Test
Computer Peripherals
Electronic Warfare Simulation
All 2000 Series Arbs comply with IEEE Standard 488.1-1987, and with Tektronix Standard Codes and
Formats.
For additional information or to order, contact your local Tektronix representative.
Characteristics
http://ftp.tektronix.com/Measurement/Products/catalog/archive/ca-AWG2040/index.html
Page 1 of 7
9/27/2007
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tektronix AWG 2040
Summary of Contents for Tektronix AWG 2040
- Page 1 Applications Broadcast Telecom Test Network Test Computer Peripherals Electronic Warfare Simulation All 2000 Series Arbs comply with IEEE Standard 488.1-1987, and with Tektronix Standard Codes and Formats. For additional information or to order, contact your local Tektronix representative. Characteristics http://ftp.tektronix.com/Measurement/Products/catalog/archive/ca-AWG2040/index.html...
- Page 2 Tektronix: Products > AWG 2040 Arbitrary Waveform Generator Page 2 of 7 Standard Waveshapes Sine, square, triangle, ramp, pulse, arbitrary, linked sequence, and DC. Arbitrary Waveforms Memory Waveform: 1 Mwords x 8-Bits (4 Mwords x 8-Bits with Option 01). Marker: 1 Mwords x 2-Bits (4 Mwords x 2-Bits with Option 01).
- Page 3 Tektronix: Products > AWG 2040 Arbitrary Waveform Generator Page 3 of 7 Range: -1.000 V to 1.000 V into 50 ohm. Resolution: 1 mV. Accuracy (20 mV Amplitude, 7F waveform data): ± (1% of offset + 5 mV). Rise Time: Amplitude >1.0 V, </= 2.5 ns.
- Page 4 Tektronix: Products > AWG 2040 Arbitrary Waveform Generator Page 4 of 7 Connector: SMB. Master Clock: Level: ECL compatible (-1.620 to -0.810 into 50 ohm). Connector: SMB. 8-Bit ECL Digital Out (Option 03): Output Signals: D0 to D7, Clock. Level: Differential ECL compatible (-1.81 V to -0.810 V into 50 ohm).
- Page 5 Tektronix: Products > AWG 2040 Arbitrary Waveform Generator Page 5 of 7 Programmable Interface GPIB: IEEE 488.2-1987 compatible. RS-232: 9-Pin D connector. Environmental Temperature: Operating: +10 to +40 degrees C. Nonoperating: -20 to +60 degrees C. Humidity: Operating: 20% to 80% (no condensation).
- Page 6 Tektronix: Products > AWG 2040 Arbitrary Waveform Generator Page 6 of 7 Includes: User/Programmer's Manual, GPIB Programming Examples Disk, Sample Waveform Library Disk, Power Cable. Opt. 01: Increase Memory to 4 Mwords (Overseas Only) Opt. 03: IGBPS, ECL Level Digital Output Opt.
- Page 7 Tektronix: Products > AWG 2040 Arbitrary Waveform Generator Page 7 of 7 Tektronix Site Home Products Support Contact Us Investors Careers International myTek © Copyright Tektronix, Inc. Terms of Use Privacy Statement Sitemap Learn More http://ftp.tektronix.com/Measurement/Products/catalog/archive/ca-AWG2040/index.html 9/27/2007...
