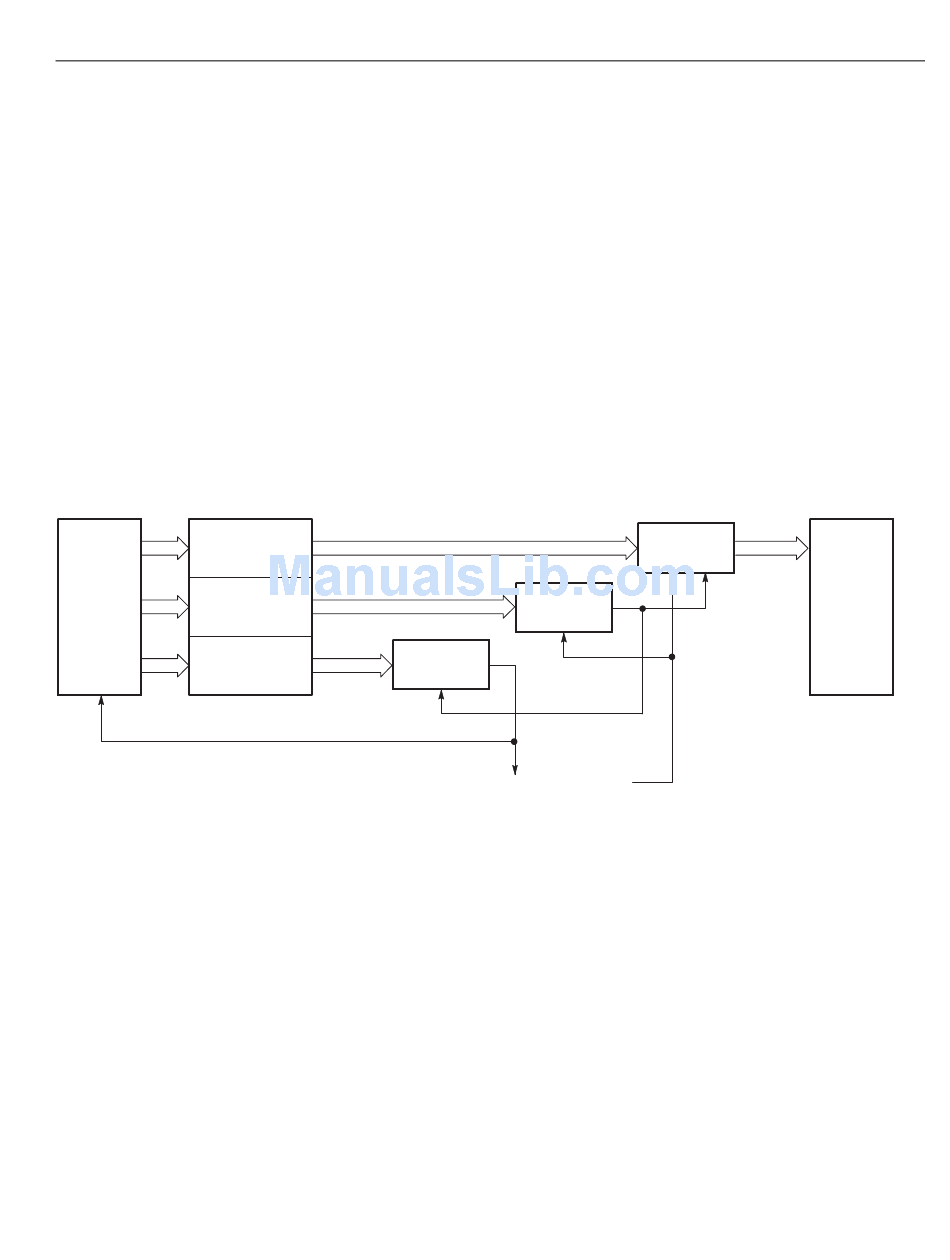

Figure 2-29: Relationship between memory address control and waveform memory
AWG710&AWG710B Arbitrary Waveform Generator User Manual
Memory Address Control. The Memory Address Control controls the addresses
used to read waveform memory data.
This block loads the first address of the waveform into the Address Counter that
was loaded into the waveform memory. It loads the waveform data length to the
Length Counter. The Address Counter specifies the point from which the
waveform was generated, and the Length Counter waveform ending position.
The Address and Length Counters operate with clocks produced by quarter
frequency–division for the clocks from the clock oscillator.
If the repeat count value has been loaded in the Repeat Counter, the waveform is
generated the specified number of times.
This block controls the sequence to the event signals generated in Enhanced Mode.
Start
Figure 2-29 shows the relationship between the memory address control and the
waveform memory.
Length
Counter
Repeat
Counter
End of Waveform
Clock
Operating Basics
Address
Counter
Waveform
Memory
2-45
