Tutorials
2-78
2. Push the Event Jump bottom button. The screen as shown in Figure 2-47
appears.
AWG710

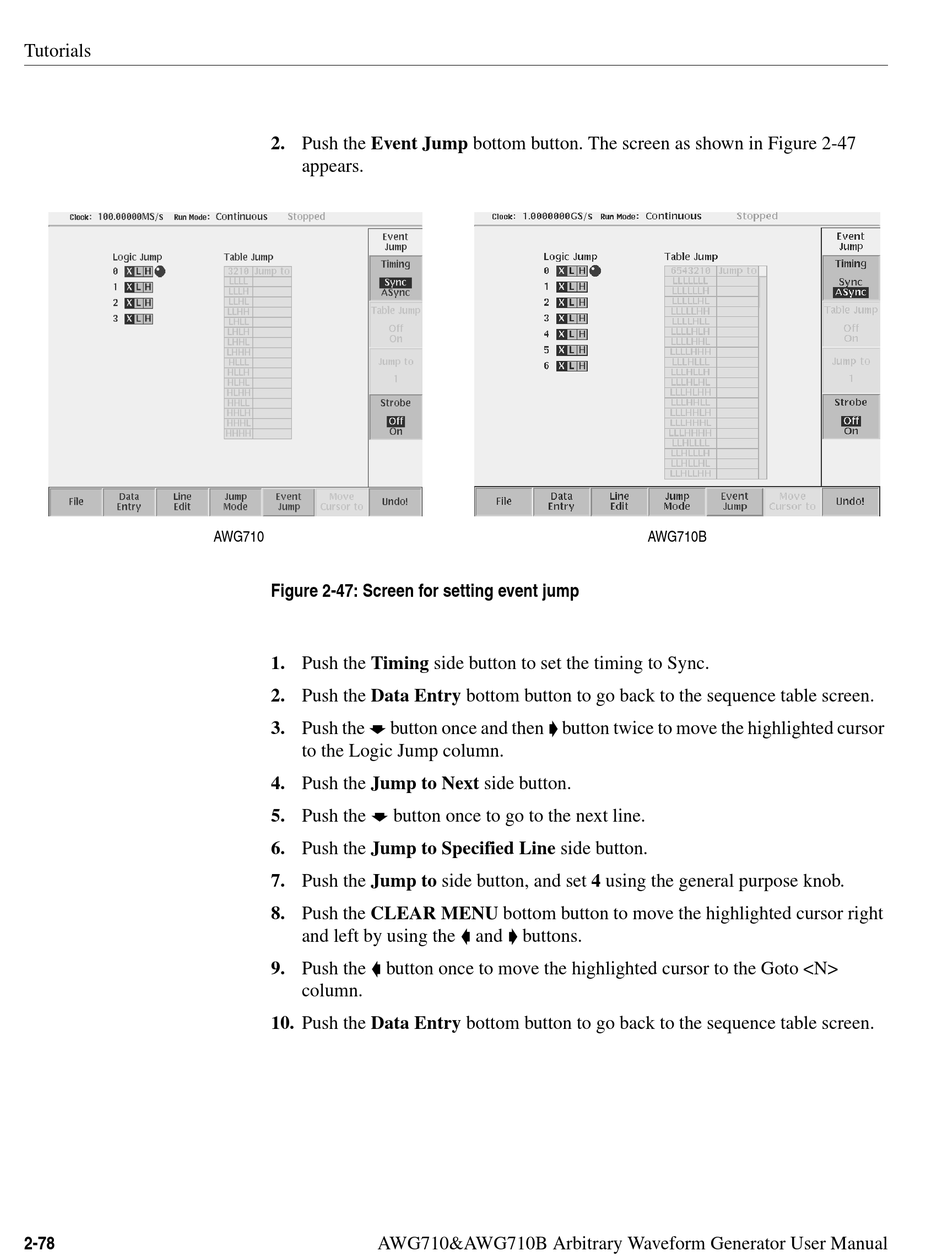

Figure 2-47: Screen for setting event jump

1. Push the Timing side button to set the timing to Sync.
2. Push the Data Entry bottom button to go back to the sequence table screen.
3. Push the b button once and then ' button twice to move the highlighted cursor
to the Logic Jump column.
4. Push the Jump to Next side button.
5. Push the b button once to go to the next line.
6. Push the Jump to Specified Line side button.
7. Push the Jump to side button, and set 4 using the general purpose knob.
8. Push the CLEAR MENU bottom button to move the highlighted cursor right
and left by using the a and ' buttons.
9. Push the a button once to move the highlighted cursor to the Goto <N>
column.
10. Push the Data Entry bottom button to go back to the sequence table screen.
AWG710&AWG710B Arbitrary Waveform Generator User Manual
AWG710B
