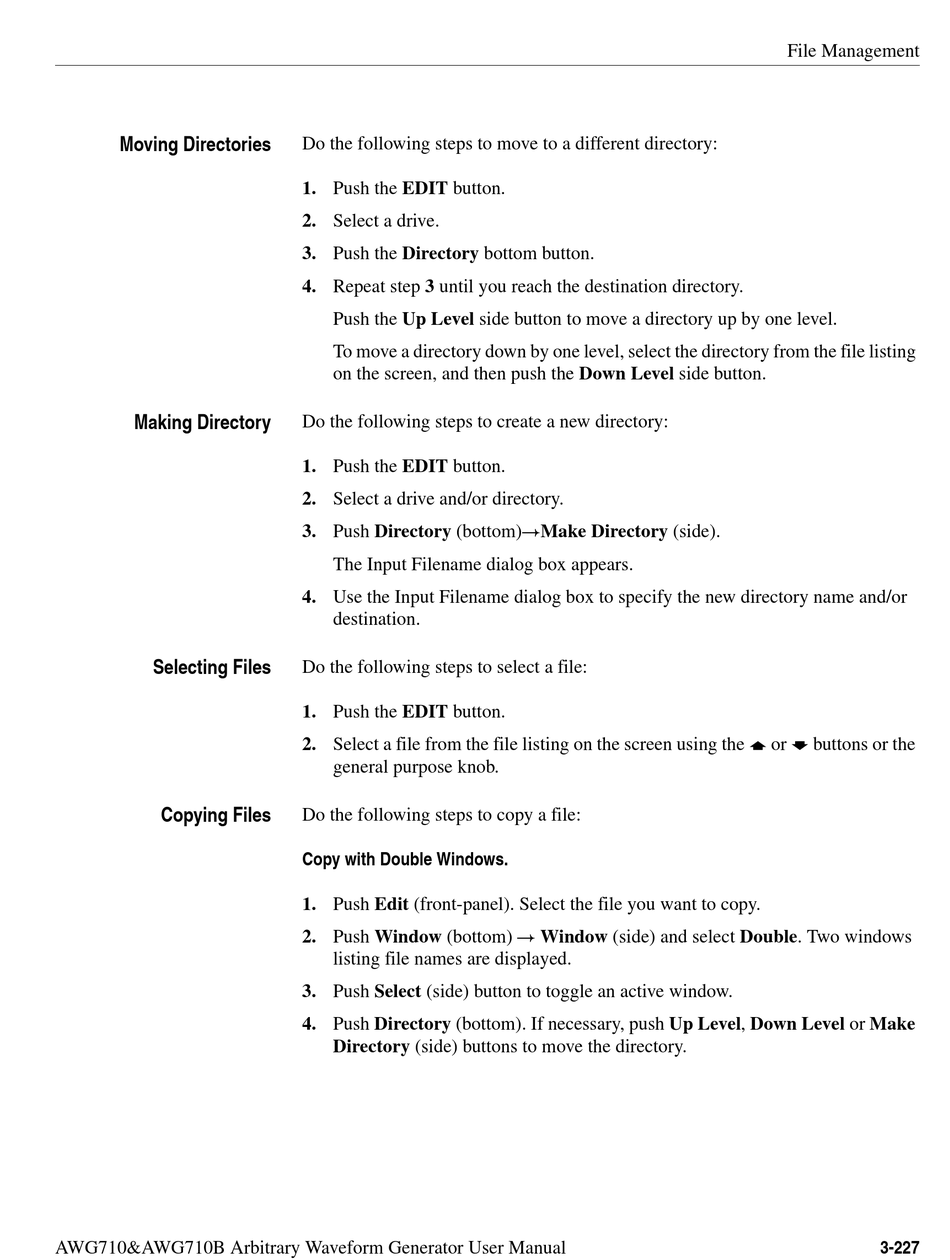

Tektronix AWG710 User Manual page 357

Moving Directories
Making Directory
Selecting Files
Copying Files
AWG710&AWG710B Arbitrary Waveform Generator User Manual
Do the following steps to move to a different directory:
1. Push the EDIT button.
2. Select a drive.
3. Push the Directory bottom button.
4. Repeat step 3 until you reach the destination directory.
Push the Up Level side button to move a directory up by one level.
To move a directory down by one level, select the directory from the file listing
on the screen, and then push the Down Level side button.
Do the following steps to create a new directory:
1. Push the EDIT button.
2. Select a drive and/or directory.
3. Push Directory (bottom)!Make Directory (side).
The Input Filename dialog box appears.
4. Use the Input Filename dialog box to specify the new directory name and/or
destination.
Do the following steps to select a file:
1. Push the EDIT button.
2. Select a file from the file listing on the screen using the y or b buttons or the
general purpose knob.
Do the following steps to copy a file:
Copy with Double Windows.
1. Push Edit (front-panel). Select the file you want to copy.
2. Push Window (bottom) ! Window (side) and select Double. Two windows
listing file names are displayed.
3. Push Select (side) button to toggle an active window.
4. Push Directory (bottom). If necessary, push Up Level, Down Level or Make
Directory (side) buttons to move the directory.
File Management
3-227
