Figure B-50: Trigger Signal And Waveform Output (+5 V Check 1; Figure B-51: Trigger Signal And Waveform Output (+5 V Check 2 - Tektronix AWG710 User Manual

AWG710&AWG710B Arbitrary Waveform Generator User Manual
Trigger
CH2
signal
Waveform
CH1
output

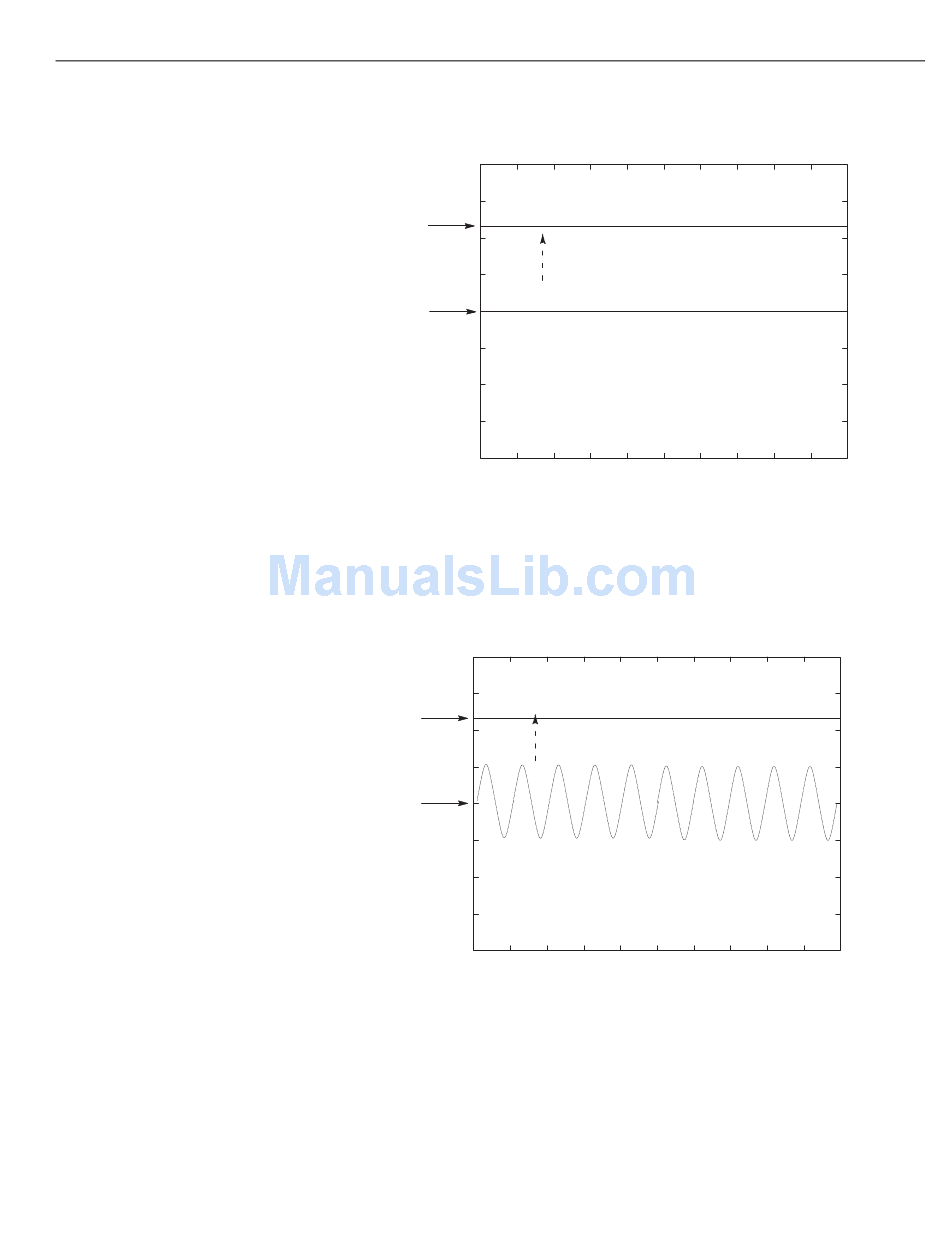

Figure B-50: Trigger signal and waveform output (+5 V check 1)

e. Change the pulse waveform high level to 5.35 V by using cursor keys.
f. Check that sine waves are displayed on the oscilloscope as shown in Figure
B-41.
Trigger
CH2
signal
Waveform
CH1
output

Figure B-51: Trigger signal and waveform output (+5 V check 2)

7. Follow the substeps below to check trigger level accuracy at –5 V:
a. Push –, 5 and ENTER keys in this order.
b. Set the DC waveform low level of function generator to –5.35 V by using
cursor keys.
Appendix B: Performance Verification (AWG710)
B-89
