Appendix B: Performance Verification (AWG710)
Check Strobe Input
B-96
d. Verify that the oscilloscope displays the waveform in Figure B-55.
11. Retain the test hookup and control settings.
Use the test hookup and oscilloscope settings from previous check.
1. Follow the substeps below to set the AWG710 Arbitrary Waveform Generator
controls and select the sequence file:
a. Push UTILITY (front–panel)!System (bottom)!Factory Reset
(side)!OK (side).
b. Load the PT_STROB.SEQ file.
Refer to Loading Files on page B-62 for file loading procedures.
c. Push SETUP (front–panel)!Run Mode (bottom)!Enhanced (side) to
set the run mode to enhanced.
2. Push the RUN and CH1 OUT buttons.
The LEDs above the RUN button and CH1 output connector are on.
3. Check the EVENT IN connector strobe pin input:
a. Verify that the waveform displayed on the oscilloscope has the same
amplitude as shown in Figure B-60.

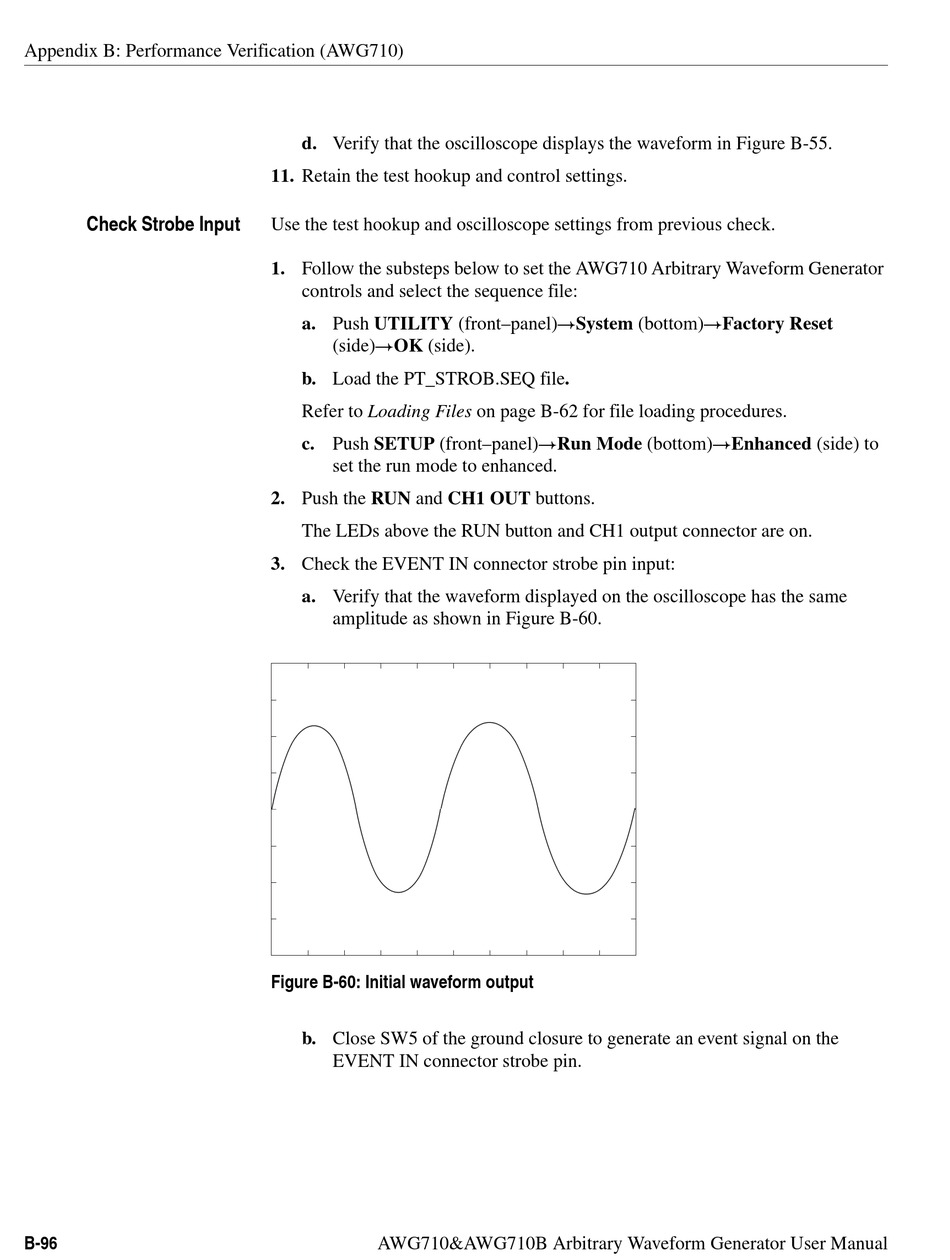

Figure B-60: Initial waveform output

b. Close SW5 of the ground closure to generate an event signal on the
EVENT IN connector strobe pin.
