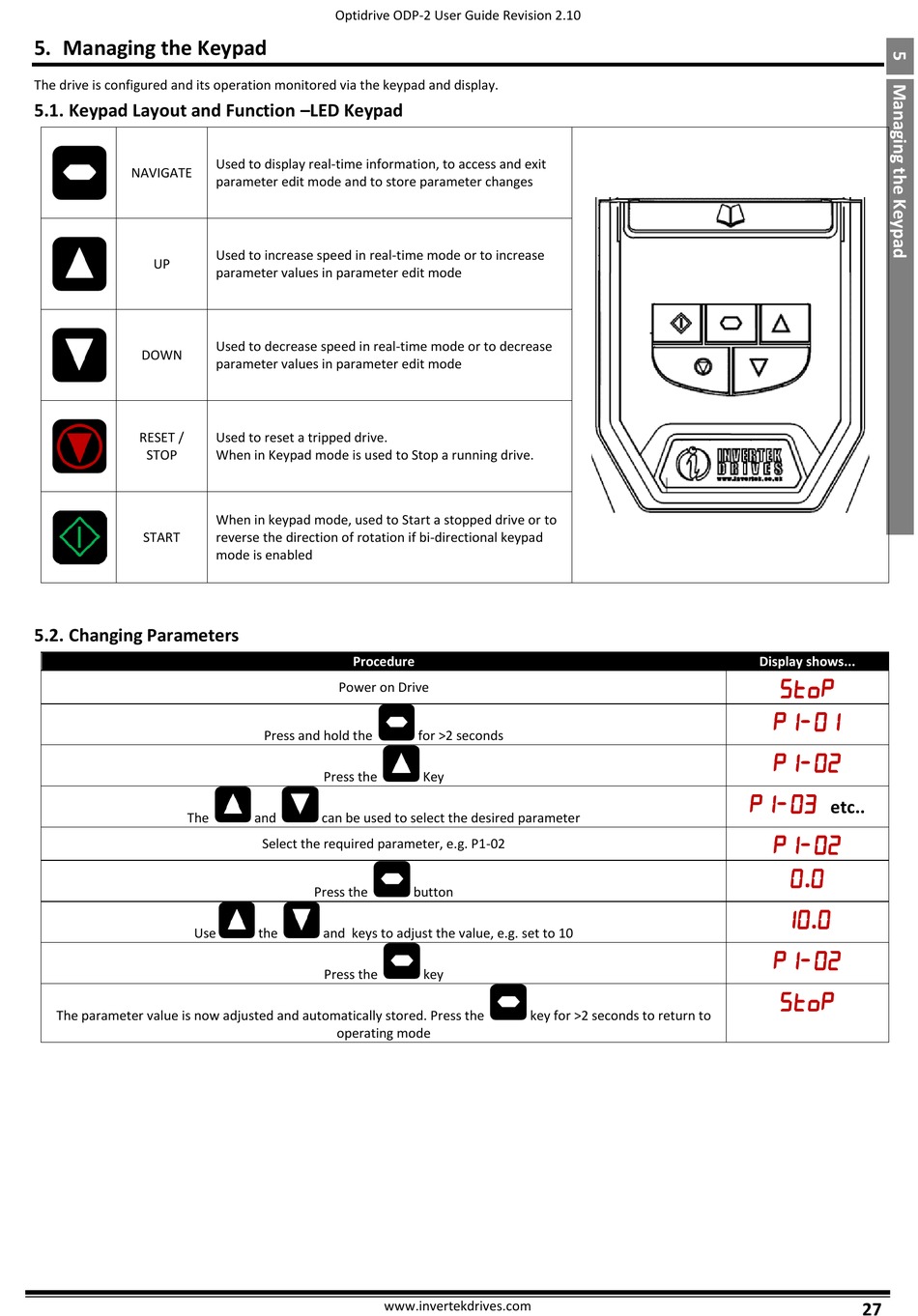

5. Managing the Keypad

The drive is configured and its operation monitored via the keypad and display.
5.1. Keypad Layout and Function –LED Keypad
NAVIGATE
UP
DOWN
RESET /
STOP
START
5.2. Changing Parameters
The
Use
The parameter value is now adjusted and automatically stored. Press the
Optidrive ODP-2 User Guide Revision 2.10
Used to display real-time information, to access and exit
parameter edit mode and to store parameter changes
Used to increase speed in real-time mode or to increase
parameter values in parameter edit mode
Used to decrease speed in real-time mode or to decrease
parameter values in parameter edit mode
Used to reset a tripped drive.
When in Keypad mode is used to Stop a running drive.
When in keypad mode, used to Start a stopped drive or to
reverse the direction of rotation if bi-directional keypad
mode is enabled
Procedure
Power on Drive
Press and hold the
Press the
and can be used to select the desired parameter
Select the required parameter, e.g. P1-02
Press the
the and keys to adjust the value, e.g. set to 10
Press the
operating mode
