Optidrive P2 IP20 Easy Start Up Guide
AC Supply Connection
3 Phase Units : Connect L1 L2 L3, PE
1 Phase Units : Connect L1, L2, PE
Fuses or MCB
2
Optidrive ODP-2 User Guide Revisions 1.30
M
www.invertekdrives.com
Supply Voltage
200 – 240 Volts + / - 10%
380 – 480 Volts + / - 10%
Fuses or MCB
o
Check the Drive Rating Information on page 48
Help Card
Display
Keypad Operation can be found on page27
IMPORTANT!
HARDWARE ENABLE FUNCTION
1 9 12 13
Link the terminals as shown, optionally through switch contacts, to
enable the drive.

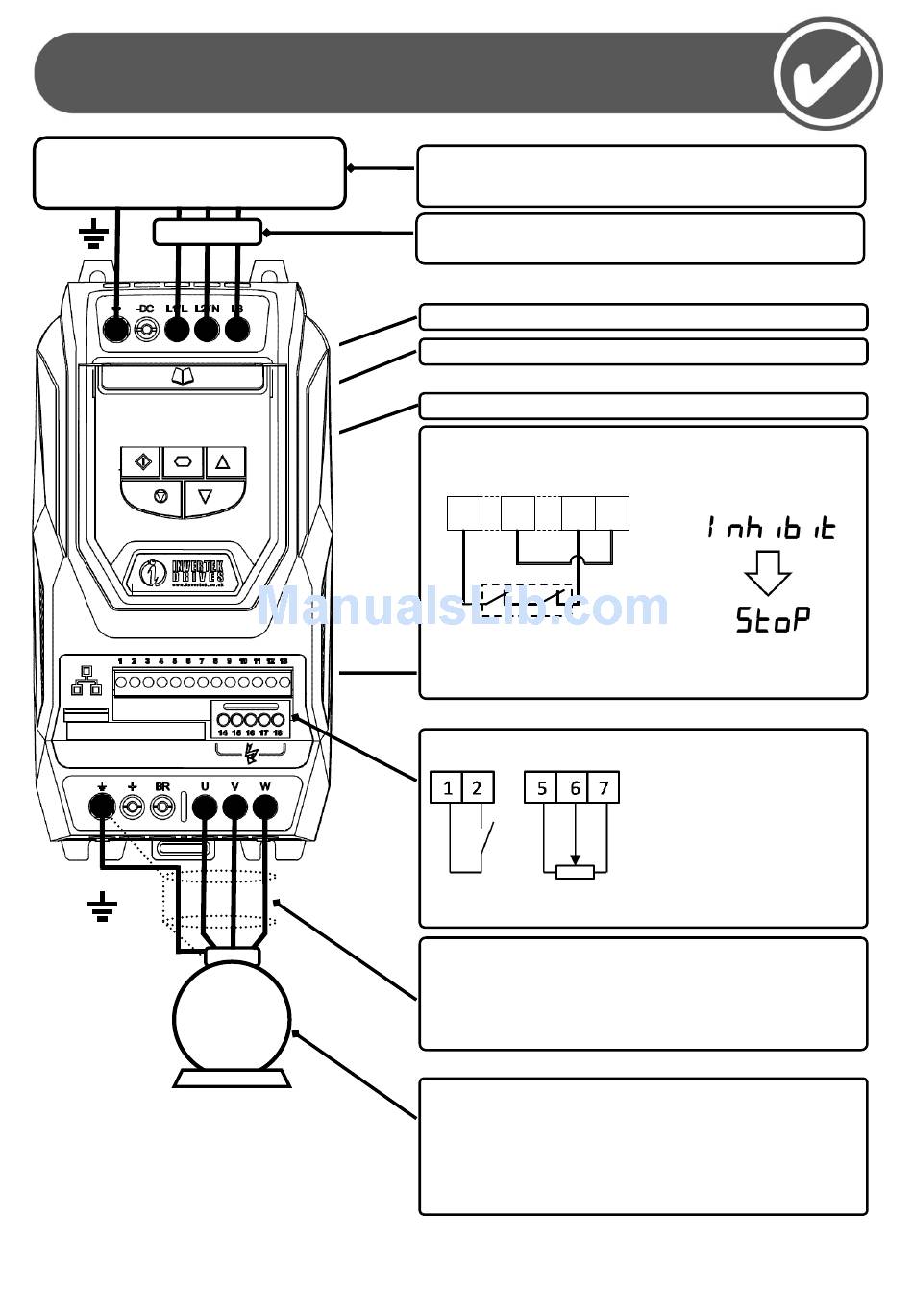

Control Terminals
Based on the factory default parameter settings
Run – Stop 10K Speed Pot
Close the switch to run (enable), open to stop
Motor Cable
o
For correct cable size, see Technical Data on page 48
o
Observe the maximum permissible motor cable length
o
For Motor cable lengths > 50 metres, an output filter is
recommended
o
Use a screened (shielded cable)
Motor Connection
Check for Star or Delta Connection
Enter the Motor Nameplate Data into the drive Parameters as follows
o
Motor Rated Voltage : P1-07
o
Motor Rated Current : P1-08
o
Motor Rated Frequency : P1-09
o
Motor Rated Speed (Optional) : P1-10
