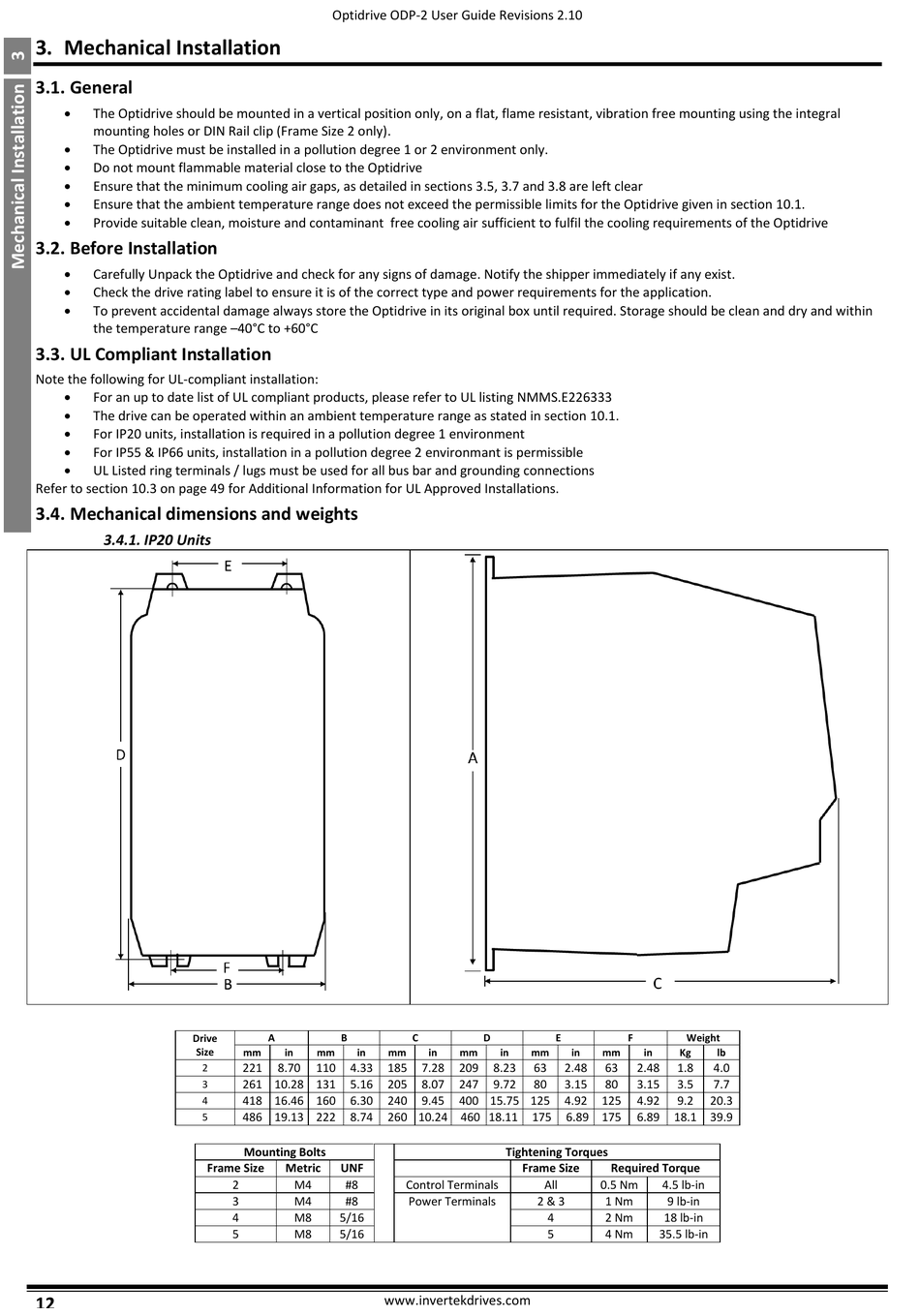

3. Mechanical Installation

3.1. General

The Optidrive should be mounted in a vertical position only, on a flat, flame resistant, vibration free mounting using the integral
mounting holes or DIN Rail clip (Frame Size 2 only).

The Optidrive must be installed in a pollution degree 1 or 2 environment only.

Do not mount flammable material close to the Optidrive

Ensure that the minimum cooling air gaps, as detailed in sections 3.5, 3.7 and 3.8 are left clear

Ensure that the ambient temperature range does not exceed the permissible limits for the Optidrive given in section 10.1.

Provide suitable clean, moisture and contaminant free cooling air sufficient to fulfil the cooling requirements of the Optidrive
3.2. Before Installation

Carefully Unpack the Optidrive and check for any signs of damage. Notify the shipper immediately if any exist.

Check the drive rating label to ensure it is of the correct type and power requirements for the application.

To prevent accidental damage always store the Optidrive in its original box until required. Storage should be clean and dry and within
the temperature range –40°C to +60°C
3.3. UL Compliant Installation
Note the following for UL-compliant installation:

For an up to date list of UL compliant products, please refer to UL listing NMMS.E226333

The drive can be operated within an ambient temperature range as stated in section 10.1.

For IP20 units, installation is required in a pollution degree 1 environment

For IP55 & IP66 units, installation in a pollution degree 2 environmant is permissible

UL Listed ring terminals / lugs must be used for all bus bar and grounding connections
Refer to section 10.3 on page 49 for Additional Information for UL Approved Installations.
3.4. Mechanical dimensions and weights
3.4.1. IP20 Units
Drive
Size
2
3
4
5
Frame Size
12
Optidrive ODP-2 User Guide Revisions 2.10
A B
mm in mm in mm
221 8.70 110 4.33 185
261 10.28 131 5.16 205
418 16.46 160 6.30 240
486 19.13 222 8.74 260 10.24 460 18.11
Mounting Bolts
Metric UNF
2 M4 #8
3 M4 #8
4 M8 5/16
5 M8 5/16
www.invertekdrives.com
C D E
in mm in mm in
7.28 209 8.23 63 2.48
8.07 247 9.72 80 3.15
9.45 400 15.75 125 4.92
175 6.89 175
Tightening Torques
Frame Size
Control Terminals All
Power Terminals 2 & 3
4
5
F Weight
mm in Kg lb
63 2.48 1.8 4.0
80 3.15 3.5 7.7
125 4.92 9.2 20.3
6.89 18.1 39.9
Required Torque
0.5 Nm 4.5 lb-in
1 Nm 9 lb-in
2 Nm 18 lb-in
4 Nm 35.5 lb-in
