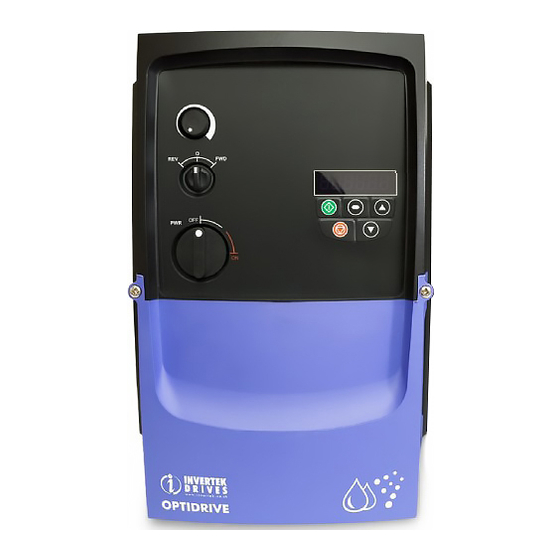

- Page 1 Optidrive ODE-2 User Guide Revision 3.30 User Guide IP20 & IP66 (NEMA 4X) AC Variable Speed Drive 0.37 – 11kW (0.5 – 15HP) 110 – 480V Installation and Operating Instructions www.invertekdrives.com...
- Page 2 Optidrive ODE-2 User Guide Revision 3.30 Easy Start Up Guide Supply Voltage AC Supply Voltage 110 – 115, 200 – 240, 400 – 480 VAC + / - 10% (50 / 60 Hz) 1 or 3 Phase Check the drive rating information on page 26 L1 L2 Earth Fuses or MCB...
- Page 3 Optidrive ODE-2 User Guide Revision 3.30 Easy Start Up Guide Mechanical Mounting Information can be found on page 10 Control Terminals Based on the factory default (out of box) settings Connect a Start / Stop switch between terminals 1 & 2 Close the switch to Start (Enable) the drive Open the switch to Stop (Disable)
- Page 4 Optidrive ODE-2 User Guide Revision 3.30 Easy Start Up Guide Local Speed Potentiometer The local speed potentiometer Mechanical Mounting will adjust the output frequency Information can be found from minimum (Parameter P-02, on page 10 default setting = 0Hz) to maximum (Parameter P-01, default setting = 50 / 60 Hz) Run Reverse / Off / Run...
- Page 5 User Guide Revision 3.30 Invertek Drives Ltd adopts a policy of continuous improvement and whilst every effort has been made to provide accurate and up to date information, the information contained in this User Guide should be used for guidance purposes only and does not form the part of any contract.
-
Page 6: Table Of Contents
Optidrive ODE-2 User Guide Revision 3.30 Introduction ..................................7 1.1. Important Safety Information General Information and Ratings ............................8 2.1. Identifying the Drive by Model Number 2.2. Drive Model Numbers Mechanical Installation ...............................9 3.1. General 3.2. Before Installation 3.3. UL Compliant Installation 3.4. -
Page 7: Introduction
Ensure that all terminals are tightened to the appropriate torque setting Do not attempt to carry out any repair of the Optidrive. In the case of suspected fault or malfunction, contact your local Invertek Drives Sales Partner for further assistance. -
Page 8: General Information And Ratings
Optidrive ODE-2 User Guide Revision 3.30 2. General Information and Ratings This chapter contains information about the Optidrive E2 including how to identify the drive 2.1. Identifying the Drive by Model Number Each drive can be identified by its model number, as shown in the table below. The model number is on the shipping label and the drive nameplate. -
Page 9: Mechanical Installation
The enclosure design and layout should ensure that the adequate ventilation paths and clearances are left to allow air to circulate through the drive heatsink. Invertek Drives recommend the following minimum sizes for drives mounted in non-ventilated metallic enclosures:- www.invertekdrives.com... -
Page 10: Mechanical Dimensions - Ip66 (Nema 4X) Enclosed Units
Optidrive ODE-2 User Guide Revision 3.30 Drive Recommended Size Above & Either Between airflow Below Side CFM (ft /min) 1.97 1.97 1.30 2.95 1.97 1.81 3.94 1.97 2.05 Note : Dimension Z assumes that the drives are mounted side-by-side with no clearance. -
Page 11: Gland Plate And Lock Off
Optidrive ODE-2 User Guide Revision 3.30 3.8. Gland Plate and Lock Off The use of a suitable gland system is required to maintain the appropriate IP / Nema rating. The gland plate has pre moulded cable entry holes for power and motor connections suitable for use with glands as shown in the following table. Where additional holes are required, these can be drilled to suitable size. -
Page 12: Power Wiring
Grounding the Drive This manual is intended as a guide for proper installation. Invertek Drives Ltd cannot assume responsibility for the compliance or the non-compliance to any code, national, local or otherwise, for the proper installation of this drive or associated equipment. -
Page 13: Incoming Power Connection
Optidrive ODE-2 User Guide Revision 3.30 4.3. Incoming Power Connection For 1 phase supply, power should be connected to L1/L, L2/N. For 3 phase supplies, power should be connected to L1, L2, and L3. Phase sequence is not important. ... -
Page 14: Motor Thermal Overload Protection
Optidrive ODE-2 User Guide Revision 3.30 4.6. Motor Thermal overload Protection. 4.6.1. Internal Thermal Overload Protection. The drive has an in-built motor thermal overload function; this is in the form of an “I.t-trP” trip after delivering >100% of the value set in P-08 for a sustained period of time (e.g. -
Page 15: Using The Rev/0/Fwd Selector Switch (Switched Version Only)
Optidrive ODE-2 User Guide Revision 3.30 4.9. Using the REV/0/FWD Selector Switch (Switched Version Only) By adjusting the parameter settings the Optidrive can be configured for multiple applications and not just for Forward or Reverse. This could typically be for Hand/Off/Auto applications (also known and Local/Remote) for HVAC and pumping industries. Parameters to Set Switch Position Notes... -
Page 16: Operation
Optidrive ODE-2 User Guide Revision 3.30 5. Operation 5.1. Managing the Keypad The drive is configured and its operation monitored via the keypad and display. Used to display real-time information, to access and exit NAVIGATE parameter edit mode and to store parameter changes Used to increase speed in real-time mode or to increase parameter values in parameter edit mode Used to decrease speed in real-time mode or to decrease... -
Page 17: Parameters
Optidrive ODE-2 User Guide Revision 3.30 6. Parameters 6.1. Standard Parameters Par. Description Minimum Maximum Default Units P-01 Maximum Frequency / Speed Limit P-02 500.0 50.0 (60.0) Hz / Rpm Maximum output frequency or motor speed limit – Hz or rpm. If P-10 >0, the value entered / displayed is in Rpm P-02 Minimum Frequency / Speed Limit P-01... -
Page 18: Extended Parameters
Optidrive ODE-2 User Guide Revision 3.30 6.2. Extended Parameters Par. Description Minimum Maximum Default Units P-15 Digital Input Function Select Defines the function of the digital inputs depending on the control mode setting in P-12. See section 8, Analog and Digital Input Configurations for more information. - Page 19 Optidrive ODE-2 User Guide Revision 3.30 Par. Description Minimum Maximum Default Units P-30 Terminal Mode Restart function Auto-0 Defines the behaviour of the drive relating to the enable digital input and also configures the Automatic Restart function. : Following Power on or reset, the drive will not start if Digital Input 1 remains closed. The Input must be closed after a power on or reset to start the drive.
-
Page 20: Adjusting The Voltage / Frequency (V/F) Characteristics
Optidrive ODE-2 User Guide Revision 3.30 Par. Description Minimum Maximum Default Units P-44 PI Reference (Setpoint) Source Select Selects the source for the PID Reference / Setpoint 0 : Digital Preset Setpoint. P-45 is used 1 : Analog Input 1 Setpoint P-45 PI Digital Setpoint 100.0... -
Page 21: Read Only Status Parameters
Optidrive ODE-2 User Guide Revision 3.30 6.4. P-00 Read Only Status Parameters Description Display range Explanation 1st Analog input value 0 … 100% 100% = max input voltage 2nd Analog input value 0 … 100% 100% = max input voltage ... -
Page 22: Analog And Digital Input Configurations
Optidrive ODE-2 User Guide Revision 3.30 7. Analog and Digital Input Configurations 7.1. Terminal Mode (P-12 = 0) P-15 Digital input 1 (T2) Digital input 2 (T3) Digital input 3 (T4) Analog input (T6) Comments Open: Stop (disable) Open : Forward run Open : Analog speed ref Analog input 1 reference Closed: Run (enable) -
Page 23: Keypad Mode (P-12 = 1 Or 2)
Optidrive ODE-2 User Guide Revision 3.30 Terminal Mode P-12=0, P-15=3 Terminal Mode P-12=0, P-15=4 Terminal Mode P-12=0, P-15=11 +24 Volt +24 Volt +24 Volt Run (Enable) Run (Enable) Run Forward Local / Remote Analog / Preset 1 Stop (Hand / Auto) Remote (Auto) External Trip Run Reverse... -
Page 24: Modbus Control Mode (P-12 = 4)
Closed : keypad speed ref Open: Trip, Closed: Run setting For further information on the MODBUS RTU Register Map information and communication setup; please contact your Invertek Drives Sales Partner. 7.4. User PI Control Mode (P-12 = 5 or 6) -
Page 25: Modbus Rtu Communications
The Register number for each parameter P-04 to P-047 is defined as 128 + Parameter number, e.g. for parameter P-15, the register number is 128 + 15 = 143. Internal scaling is used on some parameters, for further details, please contact your Invertek Drives Sales Partner. -
Page 26: Technical Data
Optidrive ODE-2 User Guide Revision 3.30 9. Technical Data 9.1. Environmental Operational ambient temperature range Open Drives -10 … 50°C (frost and condensation free) Enclosed Drives -10 ... 40°C (frost and condensation free) Storage ambient temperature range -40 … 60°C Maximum altitude 2000m. -
Page 27: Additional Information For Ul Compliance
All Optidrive E2 units have phase imbalance monitoring. A phase imbalance of > 3% will result in the drive tripping. For input supplies which have supply imbalance greater than 3% (typically the Indian sub- continent & parts of Asia Pacific including China) Invertek Drives recommends the installation of input line reactors. Frequency 50 –... -
Page 28: Trouble Shooting
The drive has activated to prevent damage to the brake resistor. tripped to prevent damage If an Invertek standard braking resistor is being used, P-34 MUST be 1 to the brake resistor Increase the deceleration time (P-04) or 2 deceleration time (P-24).
