5. Operation

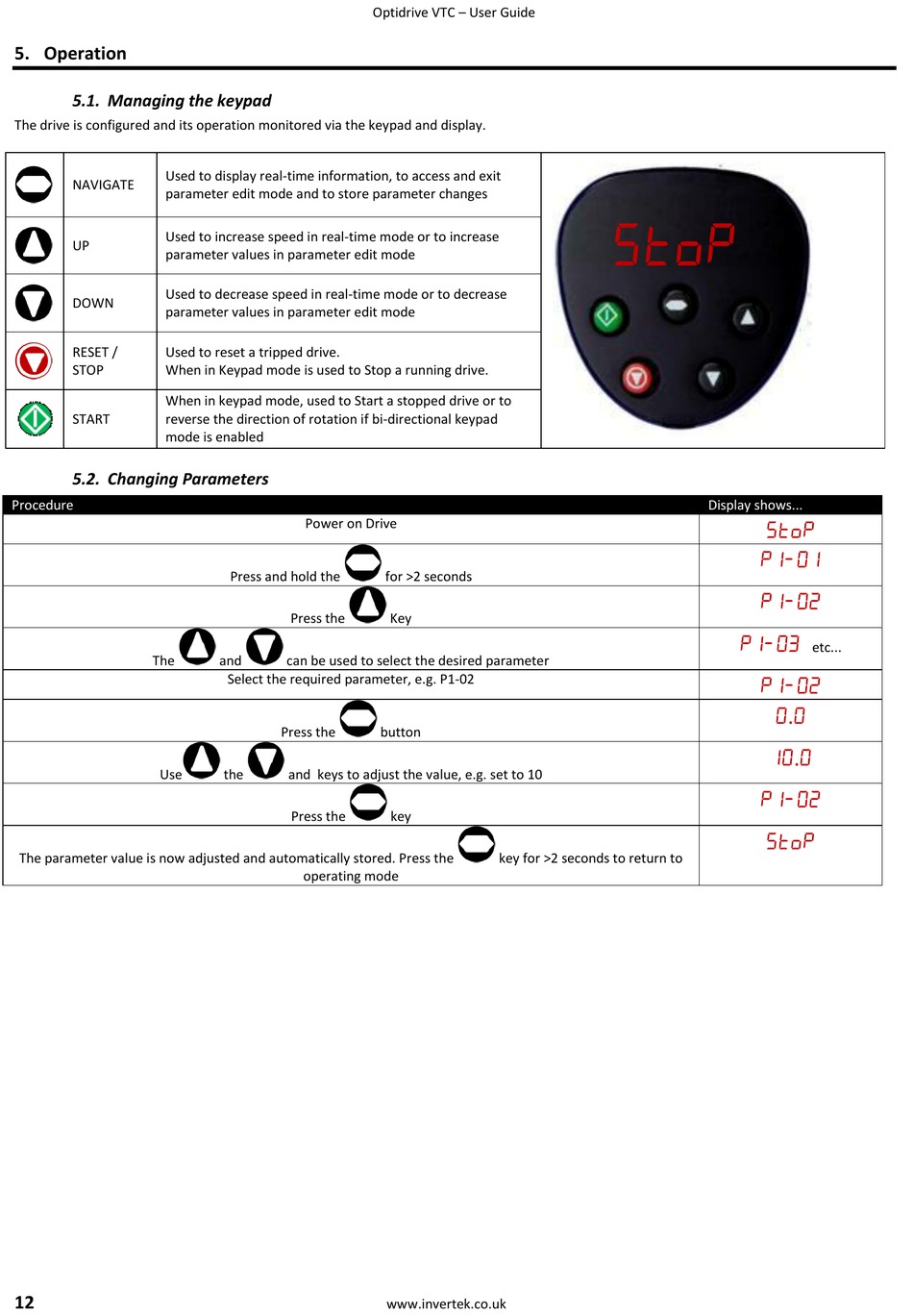

5.1. Managing the keypad

The drive is configured and its operation monitored via the keypad and display.
Used to display real-time information, to access and exit
NAVIGATE
parameter edit mode and to store parameter changes
Used to increase speed in real-time mode or to increase
UP
parameter values in parameter edit mode
Used to decrease speed in real-time mode or to decrease
DOWN
parameter values in parameter edit mode
RESET / Used to reset a tripped drive.
STOP When in Keypad mode is used to Stop a running drive.
When in keypad mode, used to Start a stopped drive or to
START reverse the direction of rotation if bi-directional keypad
mode is enabled

5.2. Changing Parameters

Procedure
The
Use
The parameter value is now adjusted and automatically stored. Press the
12
Optidrive VTC – User Guide
Power on Drive
Press and hold the for >2 seconds
Press the Key
and can be used to select the desired parameter
Select the required parameter, e.g. P1-02
Press the button
the and keys to adjust the value, e.g. set to 10
Press the key
operating mode
