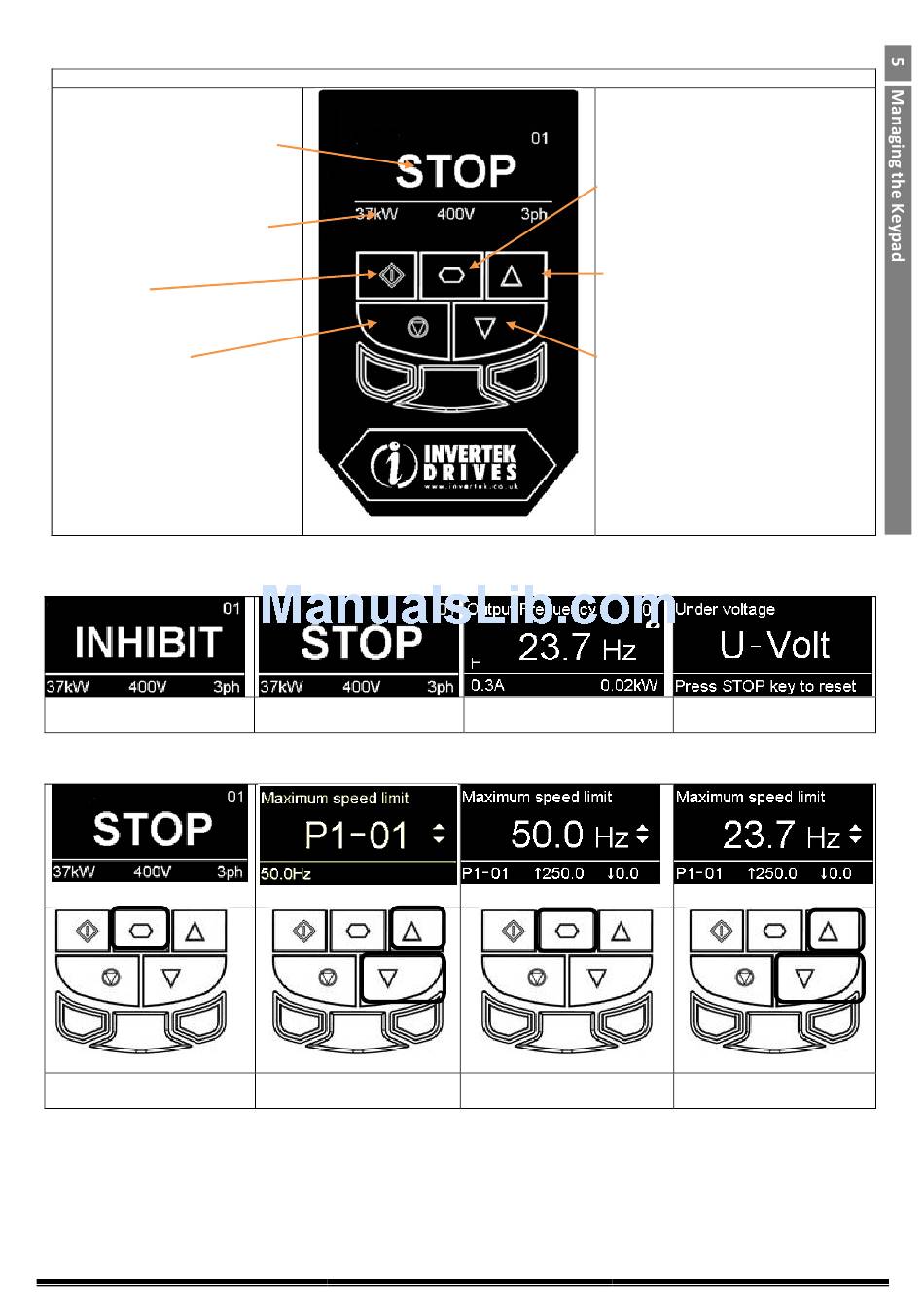

5.5. Keypad Layout and Function –OLED Keypad
Main Displayed Parameter
Shows which of the selectable
parameters is currently being shown on
the main display, e.g. Motor Speed,
Motor Current etc.
Operating Information
Provides a real time display of key
operating information, e.g. output
current and power
Start Button
When in Hand mode, used to Start the
drive.
Stop / Reset Button
Used to reset a tripped drive.
When in Hand mode, used to Stop the
drive.

5.6. Drive Operating Displays

Displayed when the hardware
enable circuit is open
5.7. Accessing and Changing Parameter Values
Hold navigate button in for >1
sec
Optidrive ODP-2 User Guide Revision 2.10
OLED Display
Displayed when the drive power
is applied, motor stopped
Use up and down keys to scroll
to required parameter.
www.invertekdrives.com
Control Keypad
Provides access to the drive parameters, and
also allows control of the drive when Hand
operation is selected.
Navigate Button
Used to display real-time information, to
access and exit parameter edit mode and to
store parameter changes
Up Button
Used to increase speed in real-time mode or
to increase parameter values in parameter
edit mode
Down Button
Used to decrease speed in real-time mode or
to decrease parameter values in parameter
edit mode
Drive operating, display showing
output information
Presss / release navigate button
when required parameter shown
Drive trip display showing trip
condition
Use up and down keys to edit
parameter value.
