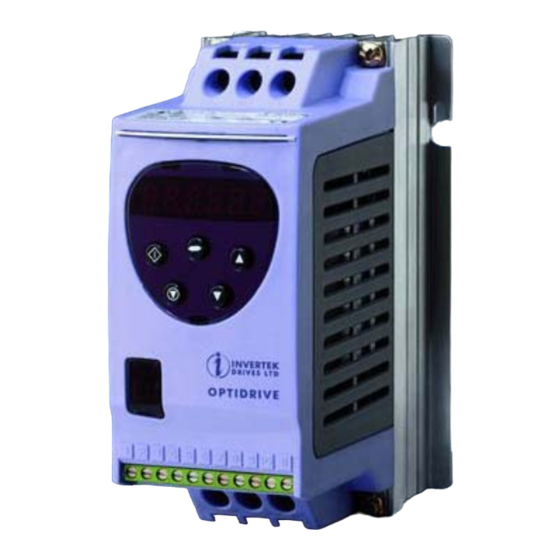

Invertek OPTIDRIVE User Manual

STANDARD PARAMETER SET
Par. Description Range
P-01 Maximum speed P-02 to 5*P-09 (max 500Hz)
P-02 Minimum speed 0 to P-01 (max 500Hz)
P-03 Accel ramp time (s) 0 to 3,000s
P-04 Decel ramp time (s) 0 to 3,000s
0, 2: Ramp stop
P-05 Stop mode select
1: Coast to stop
0: Constant torque, INDUSTRIAL
P-06 V/F characteristic
1: Pump/fan, HVAC
P-07 Fast stop (s) 0.0 to 25s. (Disabled when 0.0s)
P-08 Motor rated current 25% -100% of drive current rating
P-09 Motor rated frequency 25Hz to 500Hz
0, P-09*12 to P-09*60
P-10 Motor rated speed eg for 50Hz motor, range is 600 to
3000 rpm
P-11 Voltage boost 0 to 25% of max output voltage
0: Terminal control
1: Keypad control – fwd only
2: Keypad control − fwd and rev
P-12 Terminal or Keypad control
3: Terminal control
4: Not used
P-13 Trip log Last four trips stored
P-14 Extended menu access Code 0 to 9999
EXTENDED PARAMETER SET
Par. Description Range
230V product: 40V to 250V
P-15 Motor rated voltage
400V product: 40V to 500V
Voltage: 0-10V, 10-0V, -10-10V
P-16 Analog input format (V / mA)
Current: 4-20mA, 0-20mA, 20-4mA
8, 16, 32 kHz (Sizes 1, 2)
Effective Power stage
P-17
4, 8, 16 kHz (Sizes 3, 4)
Switching frequency
4, 8 kHz (Sizes 5, 6)
0: Drive enabled 1: Drive healthy
2: At set speed 3: Speed > zero
P-18 Relay output function
4: Motor at max speed (P-01)
5: Motor overload (current > P-08)
P-19 Digital inputs function select 0 to 12
P-20 Preset / Jog speed 1 -P-01 (reverse) to P-01
P-21 Preset / Jog speed 2 -P-01 (reverse) to P-01
P-22 Preset / Jog speed 3 -P-01 (reverse) to P-01
P-23 Preset / Jog speed 4 -P-01 (reverse) to P-01
P-24 Slip compensation 20% to 250%
P-25 Analog output function (A) 0:Motor Speed 1:Motor current
(D) 2:Drive enabled 3: Set speed
V/F characteristic adjustment
P-26 20% to 250%
factor
P-27 Skip freq / speed 0 to P-01 (max)
P-28 Skip freq / speed band 0 to100% of rated speed/freq. P-09
V/F characteristic adjustment 0 to base frequency (P-09)
P-29
frequency (Function disabled when set to zero)
Edge-r: Close Digital input 1 after
power up to start drive
Auto-0: drive runs whenever Digital
P-30 Drive start mode input 1 closed.
Auto-1..4: as Auto-0, except 1..4
Attempts to restart after a
trip
P-31 DC injection voltage 0.1 to 20% of max voltage
P-32 DC injection braking time 0 to 250s
P-33 DC injection on enable 0: Inactive 1: Enabled
0: No brake resistor fitted
P-34 External Brake Resistor 1: Optidrive braking resistor
2: Customer specified resistor
Speed reference scaling factor
P-35 1% to 500%
(analog or digital)
P-36 Drive address (s-comms) 0 to 63
P-37 Access code definition 0 to 9999
0: Parameters can be changed, auto-
saved on power down
P-38 Parameter access lock 1: Parameter changes not saved on
power down
2: Read-only. No changes allowed.
P-39 Hours run meter 0 to 99999 hours
P-40 Drive identifier Drive rating / Software version
P-06 = 0,Constant Torque, INDUSTRIAL Default P-06 = 1 Fan/ Pump, HVAC
Voltage Voltage
Adjusted
P-15 P-15
P-15/2
P-26
P-11
P-11
Boost
Boost
P-09/2 P-29 P-09 P-01
Frequency
Default Explanations
50Hz Maximum speed limit – Hz or rpm. See P-10
0Hz Minimum speed limit – Hz or rpm. See P-10
5s Acceleration ramp time from 0 to base speed (P-9) in seconds
5s Deceleration ramp time from base speed (P-9) to 0 in seconds
If the supply is lost and P-05=0 then the drive will try to continue running by reducing the
0 speed of the load using the load as a generator.
If P-05=2, the drive ramps at P-07 to stop.
2
Either V = kf (linear) or V = kf (pumps / fans with HVAC rating). Note when P-06 is set to 1 the
0
ramps are automatically set to 60 s.
Deceleration ramp time after mains loss (P-05 = 0 or 2) or when fast stop activated (see P-19).
0.0s When P-05 = 2 and P-07 = 0, activating the fast stop disables the drive without braking
(effectively coasting to stop).
Rated (nameplate) current of the motor (Amps). In HVAC (P-06 = 1) mode, the rated motor
Drive rating
current limit is increased, allowing P-08 to be set to a higher level
50 Hz Rated (nameplate) frequency of the motor. Changing P-09 resets P-02, P-10, P-26 & P-28 to 0,
& P-01=P-09.
When non-zero, speed is displayed in rpm in parameters P-01, P-02, P-20...P-23,
0
P-27 and P-28
Applies an adjustable boost to the Optidrive voltage output at low speed to assist with
3% starting 'sticky' loads. For continuous applications at low speed use a forced ventilated
motor.
When P-12 = 2, the keypad START key toggles between forward and reverse. When stopped,
0 (Terminal
target speed can be accessed / changed using the STOP & ,
control)
3: Terminal control
Most recent 4 trips stored in order of occurrence, ie on entry, display shows most recent first.
Read only
Press or to step through all four
Set to "101" (default) for extended menu access. Change code in
0
unauthorised access to the Extended Parameter Set
Default Explanations
0V When P-15 is non-zero, the applied motor voltage is controlled and scaled so that the
400V specified voltage is achieved at rated freq (P-09)
0-10V Analog input format (on terminal 6). Set to "–10 -10" for bipolar analog input
16 kHz Effective power stage switching frequency. Improvements in acoustic noise and output
4 kHz current waveform occur with increasing switching frequency at the expense of increased
4 kHz losses within the drive
Relay output function. Contacts closed if selected condition is true.
1 : (Drive When P-18= 3, (zero speed), the relay contacts close when the output frequency is greater
healthy) than 5% of base frequency.
The drive is in overload when the motor current exceeds P-08
0 Defines function of digital inputs (see also P-16 and Digital Inputs table)
50Hz Defines Preset / Jog speed 1
0 Hz Defines Preset / Jog speed 2
0 Hz Defines Preset / Jog speed 3
0 Hz Defines Preset / Jog speed 4
Slip correction factor. Value defines the percentage of the internally calculated slip
100%
compensation value to be applied. See also P-10.
Analog output select. When P-25 = 0 then 10V = 100% of P-01, or if P-25 =1 then 10V = 200% of
0
P-08.
P-25 = 2 or 3 gives a 10V digital output.
Used with P-29 to adjust the V/F characteristic. When P-26 > 100%, motor voltage is increased,
100%
when P-26 < 100%, voltage is reduced
Centre point for skip frequency band. The skip frequency band defined by P-27, P-28 is
0 Hz
mirrored around zero for negative speeds.
0 Hz Width of skip frequency band, the centre of which is defined by P-27.
Sets the frequency at which the V/F adjustment factor in P-26 has full effect. This allows the
0 Hz motor voltage applied at the frequency in P-29 to be increased or decreased by the factor set
in P-26.
When set to Edge-r, if drive is powered up with Digital Input 1 closed (enabled), drive will not
run. The switch must be opened & closed after power up or after a clearing a trip for the drive
to run.
When set to Auto-0, drive will run whenever digital input 1 is closed (if not tripped). Auto-1..4
Auto-0
makes 1..4 attempts to automatically restart after a trip (25s between attempts). If fault has
cleared drive will restart. Drive must be powered down, reset on the keypad or reset by re-
enabling the drive to reset auto-reset counter.
When P-12 is set to 1 or 2, P-30 changes automatically to Edge-r.
If P-05 selection is 'ramp to stop', P-31 sets the level of DC braking applied when the ramp
10%
reaches zero
If P-05 selection is 'ramp to stop', P-32 sets the duration of DC braking applied when the ramp
0s
reaches zero
0 When 1, DC injection is applied whenever the drive is enabled
Activates the internal braking transistor. When P-34 =1 the braking resistor is protected by the
0 drive against overload. When P-34 = 2, a thermal overload relay must be used to protect the
resistor and drive.
Scales the analog input at control terminal 6 up or down, or the digital reference in keypad (or
100%
Slave) mode up or down (see P-12).
1 Distinct drive address for serial comms. 0 = comms disabled
101 Defines Extended Parameter Set access code, P-14
0 (write Controls user access to parameters. WhenP-38 = 0, all parameters can be changed and these
access and changes will be stored automatically. When P-38 = 1, changes may be made but these will not
auto-save are be stored when the Optidrive powers down. When P-38 = 2, parameters are locked and cannot
enabled) be changed thus preventing unauthorised access.
Read only Not affected by reset-to-default command
Read only Drive rating, drive type and software version codes
Default
Voltage / Frequency (V/f) Characteristic
Adjusted
The V/f characteristic is defined by several parameters as shown.
Reducing the voltage at a particular frequency reduces the current in
the motor and hence the torque and power; for fans and certain types
of pump which require very little torque at low speed use fan/ pump
curve, P-06=1, HVAC.
The V/f curve can be further modified by using P-26 and P-29, where
P-26 determines the percentage increase or decrease of the voltage
P-26 applied to the motor at the frequency specified in P-29. This can be
useful if motor instability is experienced at certain frequencies, if this
is the case increase or decrease the voltage (P-26) at the speed of
P-29 P-09 P-01 instability (P-29).
Frequency
DIGITAL INPUTS – TERMINAL MODE (P-12 = 0, 3 or 4)
P-19 Input 1 function
Set to
Open: Stop (disable) Open: Analog speed reference
0
Closed: Run (enable) Closed: Preset / Jog Speed 1
Open: Analog speed reference
Open: Stop (disable)
1 Closed: Preset / Jog Speed 1 or 2,
Closed: Run (enable)
selected by Digital Input 3
Open: Stop (disable) Digital Input 2 Closed + Digital Input 3 Open = Preset / Jog Speed 2
2
Closed: Run (enable) Digital Input 2 Open + Digital Input 3 Closed = Preset / Jog Speed 3
Digital Input 2 Closed + Digital Input 3 Closed = Preset / Jog Speed 4
Open: Stop (disable) External trip input:
3
Closed: Run (enable) Open: TRIP; Closed: no trip.
Open: Stop (disable) Open: Run forward
4
Closed: Run (enable) Closed: Run reverse
Open: Fwd Stop (disable) Open: Reverse Stop (disable)
5
Closed: Fwd Run (enable) Closed: Reverse Run (enable)
Open: Stop (disable) Open: Run forward
6
Closed: Run (enable) Closed: Run reverse
Open: Fwd Stop (disable) Open: Reverse Stop (disable)
7
Closed: Fwd Run (enable) Closed: Reverse Run (enable)
Open: Stop (disable) Open: Run forward
8
Closed: Run (enable) Closed: Run reverse
Open: Fwd Stop (disable) Open: Reverse Stop (disable)
9
Closed: Fwd Run (enable) Closed: Reverse Run (enable)
Normally Open (N.O.) Normally Closed (N.C.)
10
buttons.
Momentary close to run fwd Momentary open to Stop (disable)
Normally Open (N.O.) Normally Closed (N.C.)
11
Momentary close to run fwd Momentary open to Stop (disable)
Open: Stop (disable) Close to run
12
Closed: Run (enable) Open to activate fast stop (P-07)
P-37 to prevent
DIGITAL INPUTS – KEYPAD MODE (P-12 = 1 or 2)
Input 1
P-19 Input 2 function
function
Set to
Open: Stop
0,1,2,4, (disable) Closed: remote
5,8..12 Closed: Run up pushbutton
(enable)
Open: Stop External trip
(disable) input:
3
Closed: Run Open: TRIP;
(enable) Closed: no trip
Open: Stop Open: Run
(disable) forward
6
Closed: Run Closed: Run
(enable) reverse
Open: Stop Open: Reverse
(disable) Stop (disable)
7
Closed: Run Closed: Reverse
(enable) Run (enable)
Digital inputs are active high (positive logic) – active >8 volts, maximum 30 volts
TROUBLESHOOTING
TO CLEAR A TRIP CONDITION
key or re-enable the drive. The drive will restart according to the mode selected by P-30.If the motor is stopped and
the display shows STOP, there is no fault; the drive output is disabled and the drive is ready to run.
Fault
What has happened
Code
P-deF Default parameters loaded
Over current on drive
output.
O-I
Excess load on the motor.
Over temperature on the
heatsink
O-Uolt Over voltage on DC bus
U-Uolt Under voltage on DC bus
The drive has tipped on
overload after delivering
I.t-trP
greater than 100% load for a
period of time.
Faulty thermistor on
th-Flt
heatsink.
External trip (on dig. input 2
E-triP
or 3)
EEPROM fault. Parameters
EE-F not saved, defaults
reloaded.
PS-Trp Internal power stage fault
O-t Heatsink over temperature
Current analog input out of
Iin-F
range
FURTHER OPTIDRIVE DIMENSIONS -
INFORMATION
The Website,
www.invertek.co.uk,
Length/mm
contains:
Width/mm
General
information, inc Depth/mm
Weight/kg
Product & Options
Manuals A / mm
B / mm
App.notes &
S/ware upgrade C / mm
D / mm
files
Fixings
Company and IDL
Terminal
authorised dealer
torque setting
information
ENCLOSURE ENCLOSURE
- NON VENTED DIMENSIONS – VENTED DIMENSIONS
VENTED UNIT
SEALED UNIT
DRIVE POWER
W
DRIVE POWER
RATING
W H D
RATING
Size 1 (1.5kW)
300
Size 2 (4kW)
400
Size 1 0.75kW 250 300 200
Size 3 (15kW)
200V / 400V 600
Size 1 1.5kW 300 400 250
Size 4 (22kW)
600
200V / 400V
Size 4 (37kW)
N/A
Size 2 1.5kW 300 400 300
200V/ 2.2kW 400V Size 5 (90kW)
N/A
Size 2 2.2kW 450 600 300
Size 6 (160kW) N/A
200V / 4kW 400V
Input 2 function Input 3 function
Open: Voltage analog input The format of the current analog input is defined by P-16, if P-16 is set
Closed: Current analog input to 0-10V a 4-20mA format will be assumed when input 3 closed
Open: Preset / Jog Speed 1
Closed: Preset / Jog Speed 2
Digital Input 2 Open + Digital Input 3 Open = Preset / Jog Speed 1
Analog voltage input used as 4
5V<Vin<30V then preset speed is reversed
Open: Analog speed reference
Closed: Preset / Jog Speed 1
Open: Analog speed reference
Closed: Preset / Jog Speed 1
Open: Analog speed reference Wire break mode. Fast stop (P-07) activated when input 1 & input 2
Closed: Preset / Jog Speed 1 closed at same time.
External trip input:
Open: TRIP; Closed: no trip.
External trip input: Wire break mode. Fast stop (P-07) activated when input 1 & input 2
Open: TRIP; Closed: no trip. closed at same time.
Open: Preset / Jog Speed 1
Closed: Preset / Jog Speed 2
Wire break mode. Fast stop (P-07) activated when input 1& 2 closed
Open: Preset / Jog Speed 1
together. Analog input is 4
Closed: Preset / Jog Speed 2
3 / 4 selected.
Open: Analog speed reference
Closed: Preset / Jog Speed 1
Normally Open (N.O.)
Momentary close to run reverse
Open: Analog speed reference
Fast stop (P-07) activated when input 2 opened
Closed: Preset / Jog Speed 1
OPTIDRIVE SIZE 1
Input 3 function Additional Information
Model
Closing inputs 2 & 3 at same
Supply voltage
Closed: remote
time starts the drive.
Phases
down
If P-12=2, closing inputs 2 & 3
Motor output
pushbutton
reverses drive.
rating
Open: Keypad
Output current
Allows use of motor thermistor
speed reference
Fuse or MCB
in keypad mode. Speed
Closed: Preset /
Max ambient
reference is set by pushbuttons.
Jog Speed 1
temperature
External trip
Allows use of motor thermistor
input:
in keypad mode. Speed Motor cable size, Cu 75C
Open: TRIP;
reference is set by pushbuttons. Max motor cable length
Closed: no trip
OPTIDRIVE SIZE 2 (INTEGRAL BRAKING TRANSISTOR)
External trip Allows use of motor thermistor
Model
input: in keypad mode. Fast stop (P-
Supply voltage
Open: TRIP; 07) activated when input 1 &
Phases
Closed: no trip input 2 closed at same time.
Motor output
rating
Output current
Fuse or MCB rating
Remove the condition which caused the trip and press the STOP Max ambient
temperature
Motor cable size,Cu 75C
What to do
Max motor cable length
Press STOP key, drive is ready to configure for particular Min brake resistor
application OPTIDRIVE SIZE 3 (INTEGRAL BRAKING TRANSISTOR)
Motor at constant speed: investigate overload or Model
malfunction. Motor starting: load stalled or jammed.
Supply voltage
Check for star-delta motor wiring error.
Phases
Motor accelerating/decelerating: The accel/decel time too
Motor O/P rating
short requiring too much power. If P-03 or P-04 cannot
(industrial 150% )
be increased, a bigger drive is needed
Output Amps (industrial)
Supply problem, or increase decel ramp time P-04.
Motor output (HVAC 110%)
Output Amps (HVAC)
This occurs routinely when power is switched off. If it
Fuse or MCB rating
occurs during running, check power supply voltage.
Max ambient
Check to see when the decimal points are flashing (drive
temperature
in overload) and either decrease acceleration rate or
load. Check cable length is within specification.
Motor cable size,Cu 75C
Max motor cable length
Refer to your IDL Authorised Distributor.
Min brake resistor
External trip on digital input – see P-19 (motor
thermistor?)
OPTIDRIVE SIZE 4 (INTEGRAL LINE CHOKE, RFI FILTER & BRAKING TRANSISTOR)
Model
Try again. If problem recurs, refer to your IDL Authorised
Supply voltage
Distributor.
Phases
Check wiring to motor, look for ph-ph or ph-Earth short
Motor O/P rating
circuit.
(industrial 150%)
Check drive ambient temp, additional space or cooling
Output Amps (industrial)
needed?
Motor output (HVAC 110%)
Check drive is not forced into overload.
Output Amps (HVAC)
Check drive ambient temp. Additional space or cooling
Fuse or MCB rating
needed?
Max ambient
Check input current in range defined by P-16 temperature
Motor cable size,Cu 75C
Max motor cable length
Min brake resistor
Control terminal torque settings : 0.5Nm
OPTIDRIVE SIZE 5 (INTEGRAL LINE CHOKE, RFI FILTER & BRAKING TRANSISTOR)
Size Size Size Size Size Size S6
1 2 3 4 5 6 Input
Model
Choke
Supply voltage
155 260 260 520 1045 280
Phases
80 100 171 340 340 280
Motor O/P rating
130 175 175 220 330 280
(industrial 150%)
1.1 2.6 5.3 28 68 25
Output Amps (industrial)
72 92 163 320 160
4 9.5 - Motor output (HVAC 110%)
25 50 - Output Amps (HVAC)
105 210 210 420 945 105
Fuse or MCB rating
2 * M4 4*M4 4 * M8 -
Max ambient
1 1 1 4 8 8
temperature
8Nm
Nm Nm Nm Nm Nm Nm
Motor cable size,Cu 75C
Max motor cable length
Min brake resistor
OPTIDRIVE SIZE 6 (INTEGRAL LINE CHOKE, RFI FILTER & BRAKING TRANSISTOR)
Model
FORCE VENTED (WITH FAN)
Supply voltage
H D W H D Air Flow Phases
Motor O/P rating
3
400 150 200 300 150 > 15m / h
(industrial 150%)
3 Output Amps (industrial)
600 250 300 400 250 > 45m / h
Motor output (HVAC 110%)
3
800 300 400 600 250 > 80m / h
Output Amps (HVAC)
3
300 600 800 300 > 300m / h
1000 Fuse or MCB rating
3 Max ambient
N/A N/A 600 800 300 > 300m / h
temperature
3
N/A N/A 800 1600 300 > 900m / h
Motor cable size,Cu 75C
N/A N/A 800 300 > 1000m 3 / h Max motor cable length
2000
Min brake resistor
OPTIDRIVE OPTIONS
Additional Information The following additional products are
available:
EMC filters to meet EN 61000-6-3 &
EN 61000-6-4 for conducted
emissions
Optiwand: multi-language LCD IR
remote control and programming unit
th digital input: if
Optistore: PC based program for
storing, editing and printing
parameter sets
Braking resistor (Sizes 2 to Size 6).
RS232/485 serial communications
interface unit (Optibus protocol)
Optidrive Fieldbus Gateway for
connection to Profibus DP, DeviceNet,
& Modbus communication systems
Optiport: remote keypad and LED
display, with scalable display and PI
for feedback control systems
Optilink: fibre optic cable used to
connect drive networks.
Dual relay output and dual analog
th
digital input. When Vin > 5V, preset speeds input
Enclosed (IP55) Optidrives
Optidrive Coolplate with heatsink
removed for mounting to a cooled
surface
Optidrive sizes 4, 5 & 6 for 525V
supplies
Optidrive for control of single phase
motors
ELECTRICAL DATA
OD-xxxxx-IN 12037 12075 12150 14075 14150
+/- 10% 220-240 380-480
1 3
kW 0.37 0.75 1.5 0.75 1.5
HP 0.5 1.0 2.0 1.0 2.0
A 2.3 4.3 7.0 2.2 4.1
A 10 10 20 5 10
o
C 8kHz 50 50 50 50 50
o
C 16kHz 50 40 40 40 40
o
C 32kHz 50 30 30 30 30
2
mm 1.0
m 25 10
OD-xxxxx-IN 22150 22220 24075 24150 24220 24400
+/- 10% 220-240 380-480
1 or 3 3
kW 1.5 2.2 0.75 1.5 2.2 4
HP 2 3 1 2 3 5.5
A 7 10.5 2.2 4.1 5.8 9.5
A 20 30 5 10 10 16
o
C 8kHz 50 50 50 50 50 50
o
C 16kHz 50 40 50 40 50 40
o
C 32kHz 40 30 50 30 40 40
2
mm 1.5 1.5 1.0 1.0 1.5 1.5
m 100 100 50 100 100 100
Ω
33 22 47 47 47 33
OD-xxxxx-IN 32030 32040 32055 34055 34075 34110* 34150*
+/- 10% 220-240 380-480
1 (50% derating) or 3 3
kW 3.0 4.0 5.5 5.5 7.5 11 15
HP 4 5.5 7.5 7.5 10 15 20
A 14 18 25 14 18 25 29.5
kW 4.0 5.5 7.5 7.5 11 15 -
A 18 25 29.5 18 25 29.5 -
A 20 32 40 20 32 40 40
o C 4kHz 50 50 50 50 50 40 40
o
C 8kHz 40 30 30 40 30 30 30
o
C 16kHz 30 20 - 30 20 - -
2
mm 2.5 2.5 4 2.5 2.5 4 6
m 100
Ω
15 22
o
* UL approval applies for supply voltage of 440 –480V with 75 C copper wire
OD-xxxxx-IN 42075 42110 42150 42185 44185 44220 44300 44370
+/- 10% 220-240 380-480
1 (50% derating) or 3 3
kW 7.5 11 15 18.5 18.5 22 30
HP 10 16 20 25 25 30 40
A 39 46 61 72 39 46 61
kW 11 15 18.5 22 22 30 37
A 46 61 72 89 46 61 72
A 50 60 80 100 50 60 80
o
C 4kHz 50 50 50 40 50 50 50
o
C 8kHz 40 30 - - 40 30 -
2
mm 10 10 16 16 10 10 16
m 100
Ω
6 12
OD-xxxxx-IN 52220 52300 52370 52450 54450 54550 54750 54900
+/- 10% 220-240 380-480
1 (50% derating) or 3 3
kW 22 30 37 45 45 55 75
HP 30 40 50 60 60 75 100
A 89 110 150 180 89 110 150
kW 30 37 45 - 55 75 90
A 110 150 180 - 110 150 180
A 150 180 220 220 150 180 220
o
C 4kHz 50 50 50 40 50 50 50
o
C 8kHz 50 40 30 20 50 40 30
2
mm 25 35 55 70 25 55 55
m 100
Ω
3 6
OD-xxxxx-IN 64110 64132 64160
+/- 10% 380-480
3
kW 110 132 160
HP 145 175 210
A 202 240 300
kW 132 160 -
A 240 300 -
A 400 400 400
o
C 4kHz 50 50 40
o C 8kHz 50 40 30
mm 2 90 120 170
m 100
Ω 6
37
50
72
45
89
100
40
-
16
90
120
180
-
-
220
40
20
70
