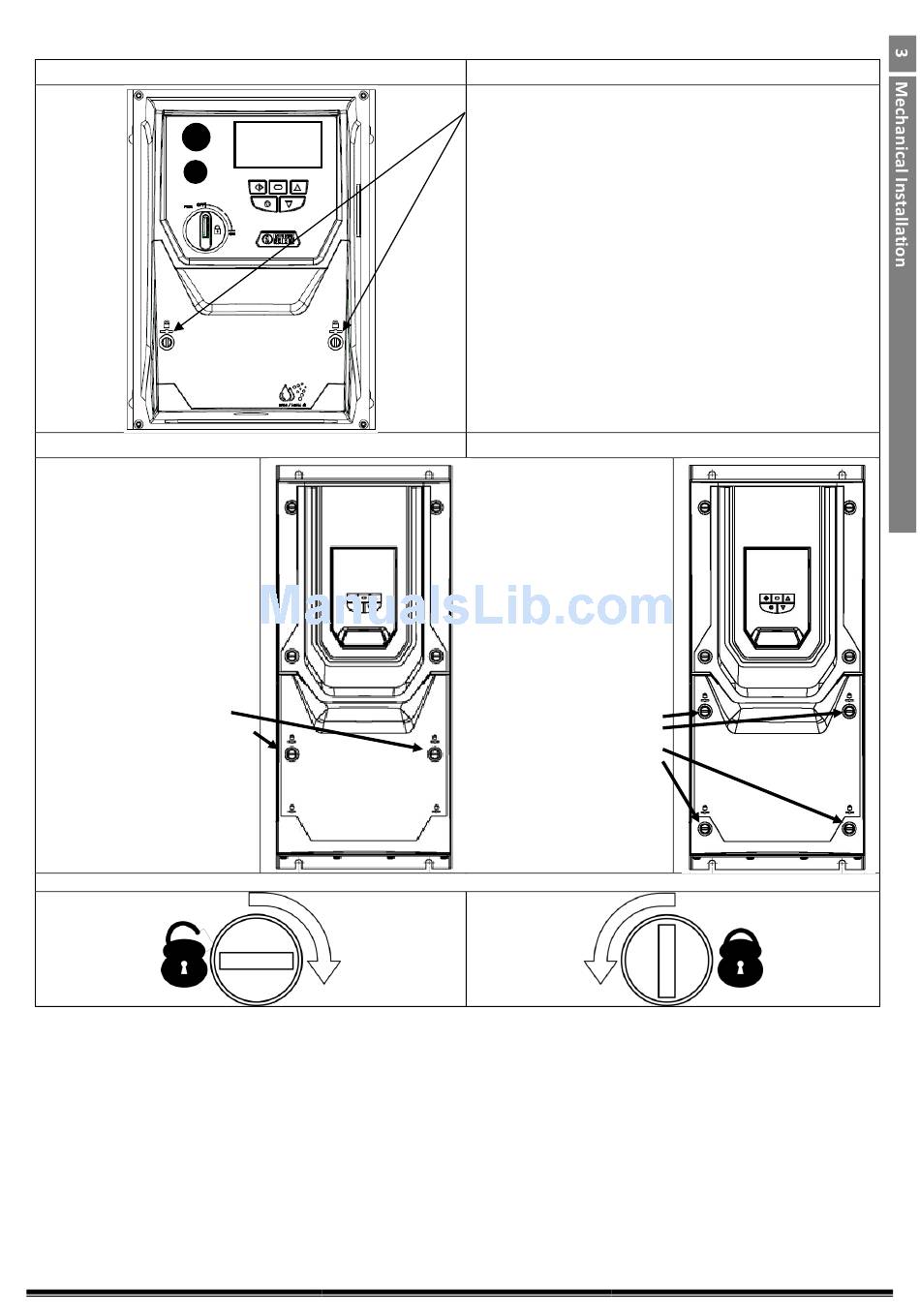

3.9. Removing the Terminal Cover
3.9.1. Frame Sizes 2 & 3
3.9.2. Frame Size 4
Using a suitable flat blade
screwdriver, rotate the two
retaining screws indicated until the
screw slot is vertical.
Optidrive ODP-2 User Guide Revision 2.10
Using a suitable flat blade screwdriver, rotate the two retaining
screws indicated until the screw slot is vertical.
Using a suitable flat blade
screwdriver, rotate the four
retaining screws indicated until
the screw slot is vertical.
Terminal Cover Release Screws
www.invertekdrives.com
