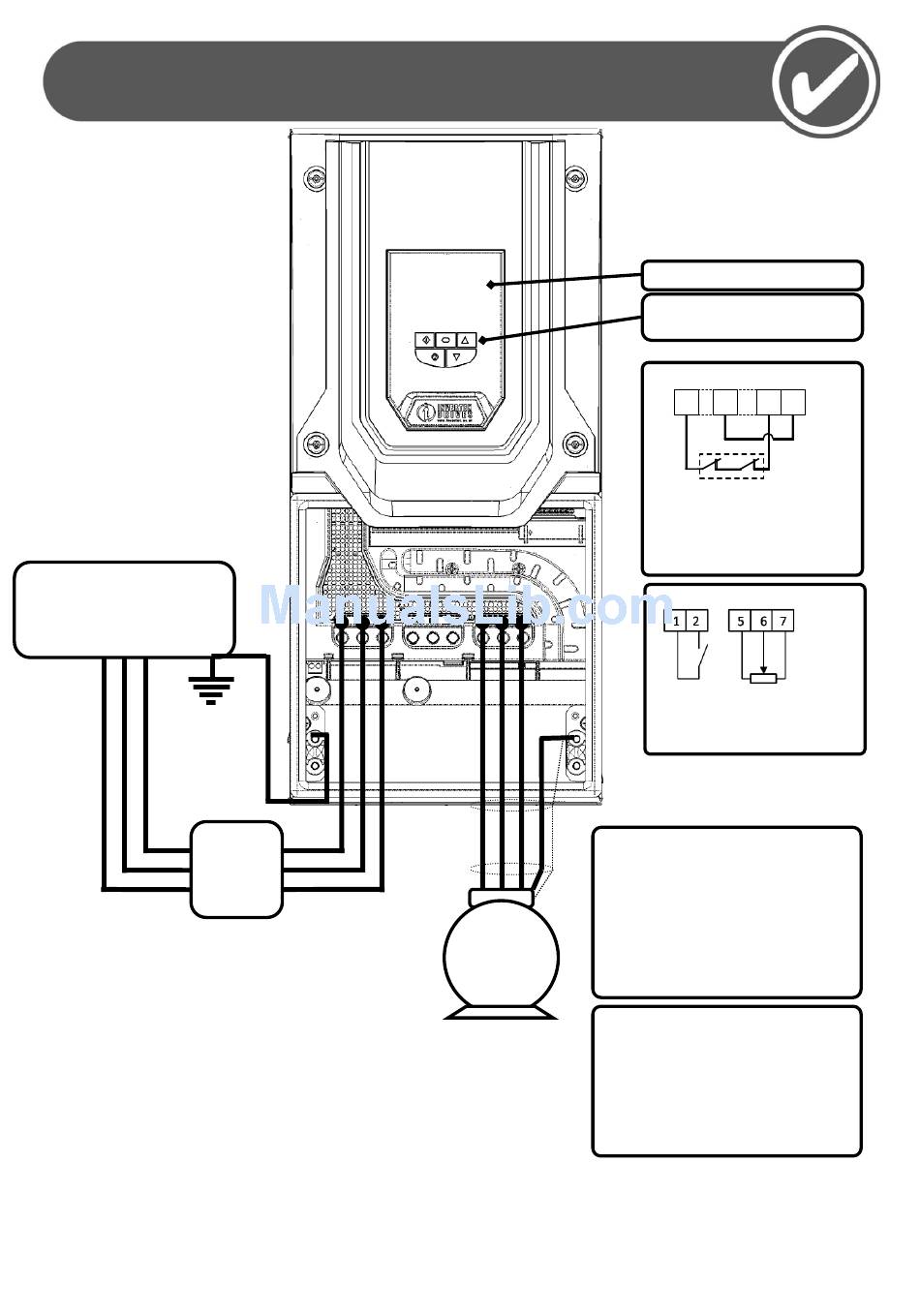

Optidrive P2 IP55 Easy Start Up Guide
AC Supply Connection
200 – 240 Volts + / - 10%
380 – 480 Volts + / - 10%
L3 L2 L1
Optidrive ODP-2 User Guide Revision 1.30
PE
Fuses or MCB
Check drive
Rating info on
Page 48
M
www.invertekdrives.com
Display
Keypad Operation can be found
on page 27
IMPORTANT
HARDWARE ENABLE
1 9 12 13
Link the terminals as shown
above, optionally through switch
contacts to enable the drive
Control Terminals
Run / Stop 10K Pot
Close the switch to run (enable)
Open the switch to stop
Motor Cable
For correct cable size, see
Technical Data on page 48
Observe the maximum permissible motor
cable length
For Motor cable lengths > 50 metres, an
output filter is recommended
Use a screened (shielded) cable. The shield
should be bonded to earth at both ends
Motor Connection
Check for Star or Delta Connection
Enter the Motor Nameplate Data into the
drive Parameters as follows
Motor Rated Voltage : P1-07
Motor Rated Current : P1-08
Motor Rated Frequency : P1-09
Motor Rated Speed (Optional) : P1-10
3
