SnapSAN S2000 User Guide

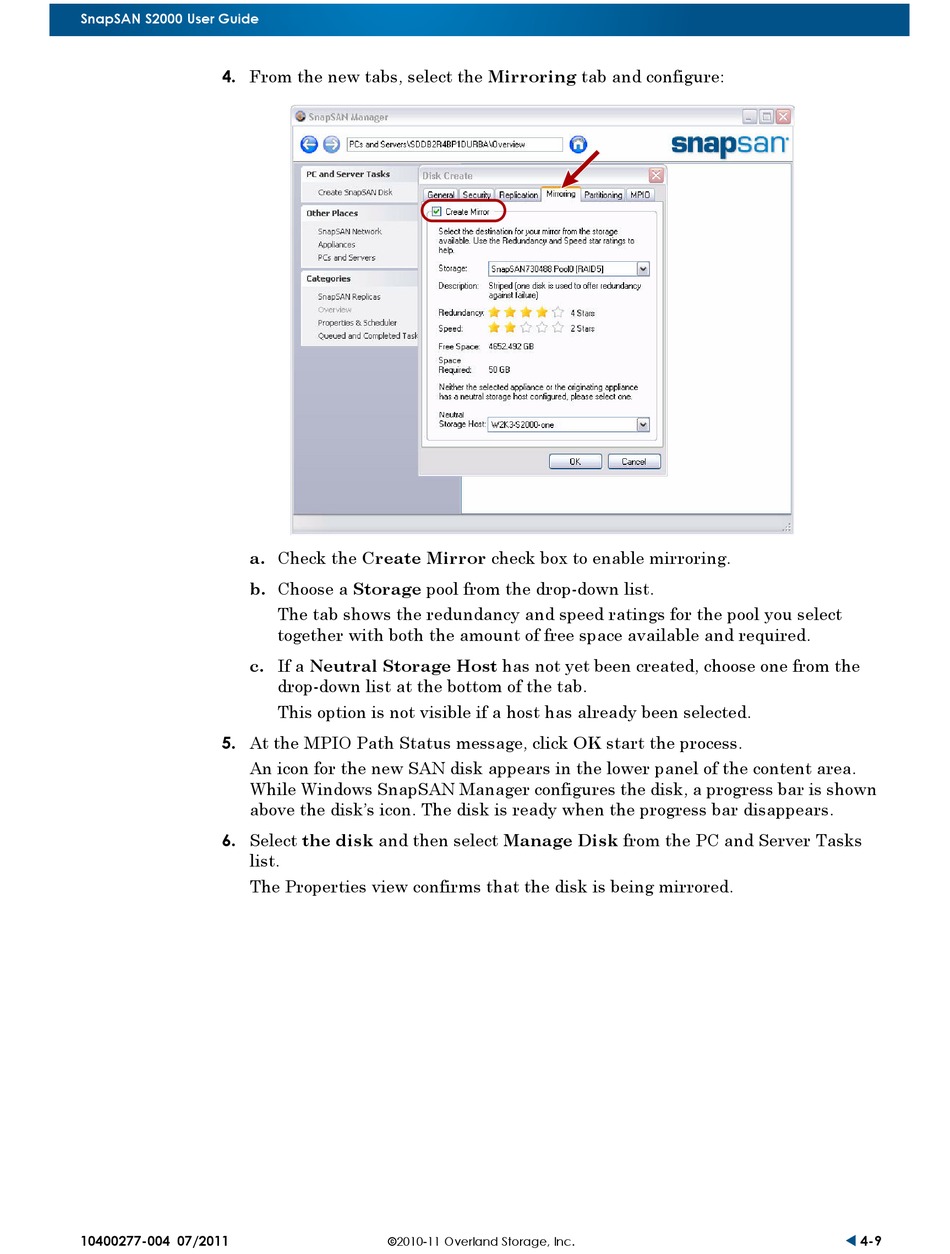

4. From the new tabs, select the Mirroring tab and configure:
a. Check the Create Mirror check box to enable mirroring.
b. Choose a Storage pool from the drop-down list.
c. If a Neutral Storage Host has not yet been created, choose one from the
5. At the MPIO Path Status message, click OK start the process.
An icon for the new SAN disk appears in the lower panel of the content area.
While Windows SnapSAN Manager configures the disk, a progress bar is shown
above the disk's icon. The disk is ready when the progress bar disappears.
6. Select the disk and then select Manage Disk from the PC and Server Tasks
list.
The Properties view confirms that the disk is being mirrored.
10400277-004 07/2011
The tab shows the redundancy and speed ratings for the pool you select
together with both the amount of free space available and required.
drop-down list at the bottom of the tab.
This option is not visible if a host has already been selected.
