SnapSAN S2000 User Guide

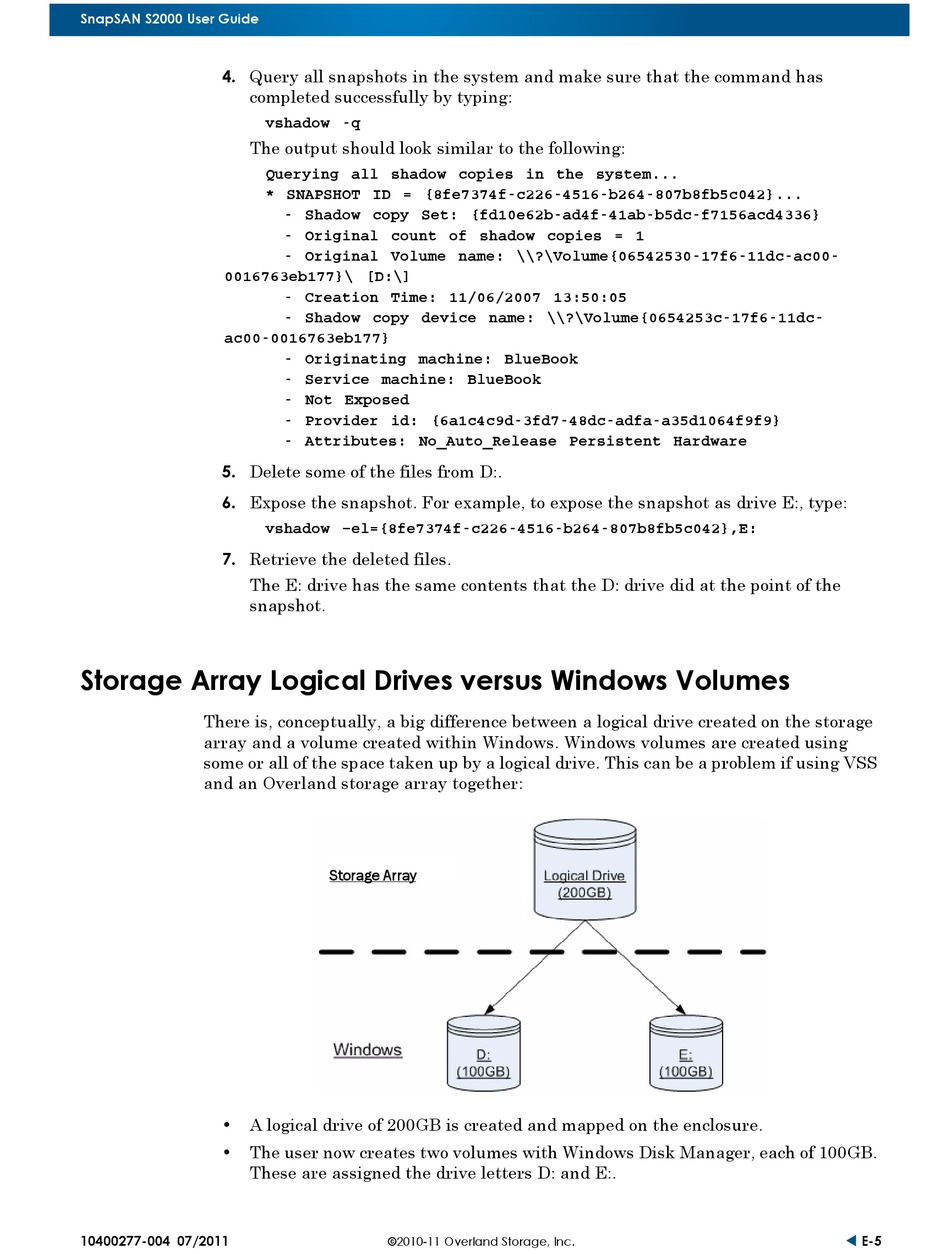

4. Query all snapshots in the system and make sure that the command has
completed successfully by typing:
The output should look similar to the following:
0016763eb177}\ [D:\]
ac00-0016763eb177}
5. Delete some of the files from D:.
6. Expose the snapshot. For example, to expose the snapshot as drive E:, type:
7. Retrieve the deleted files.
The E: drive has the same contents that the D: drive did at the point of the
snapshot.

Storage Array Logical Drives versus Windows Volumes

There is, conceptually, a big difference between a logical drive created on the storage
array and a volume created within Windows. Windows volumes are created using
some or all of the space taken up by a logical drive. This can be a problem if using VSS
and an Overland storage array together:
• A logical drive of 200GB is created and mapped on the enclosure.
• The user now creates two volumes with Windows Disk Manager, each of 100GB.
These are assigned the drive letters D: and E:.
10400277-004 07/2011
vshadow -q
Querying all shadow copies in the system...
* SNAPSHOT ID = {8fe7374f-c226-4516-b264-807b8fb5c042}...
- Shadow copy Set: {fd10e62b-ad4f-41ab-b5dc-f7156acd4336}
- Original count of shadow copies = 1
- Original Volume name: \\?\Volume{06542530-17f6-11dc-ac00-
- Creation Time: 11/06/2007 13:50:05
- Shadow copy device name: \\?\Volume{0654253c-17f6-11dc-
- Originating machine: BlueBook
- Service machine: BlueBook
- Not Exposed
- Provider id: {6a1c4c9d-3fd7-48dc-adfa-a35d1064f9f9}
- Attributes: No_Auto_Release Persistent Hardware
vshadow –el={8fe7374f-c226-4516-b264-807b8fb5c042},E:
Storage Array
©2010-11 Overland Storage, Inc.
E-5
