SnapSAN S2000 User Guide

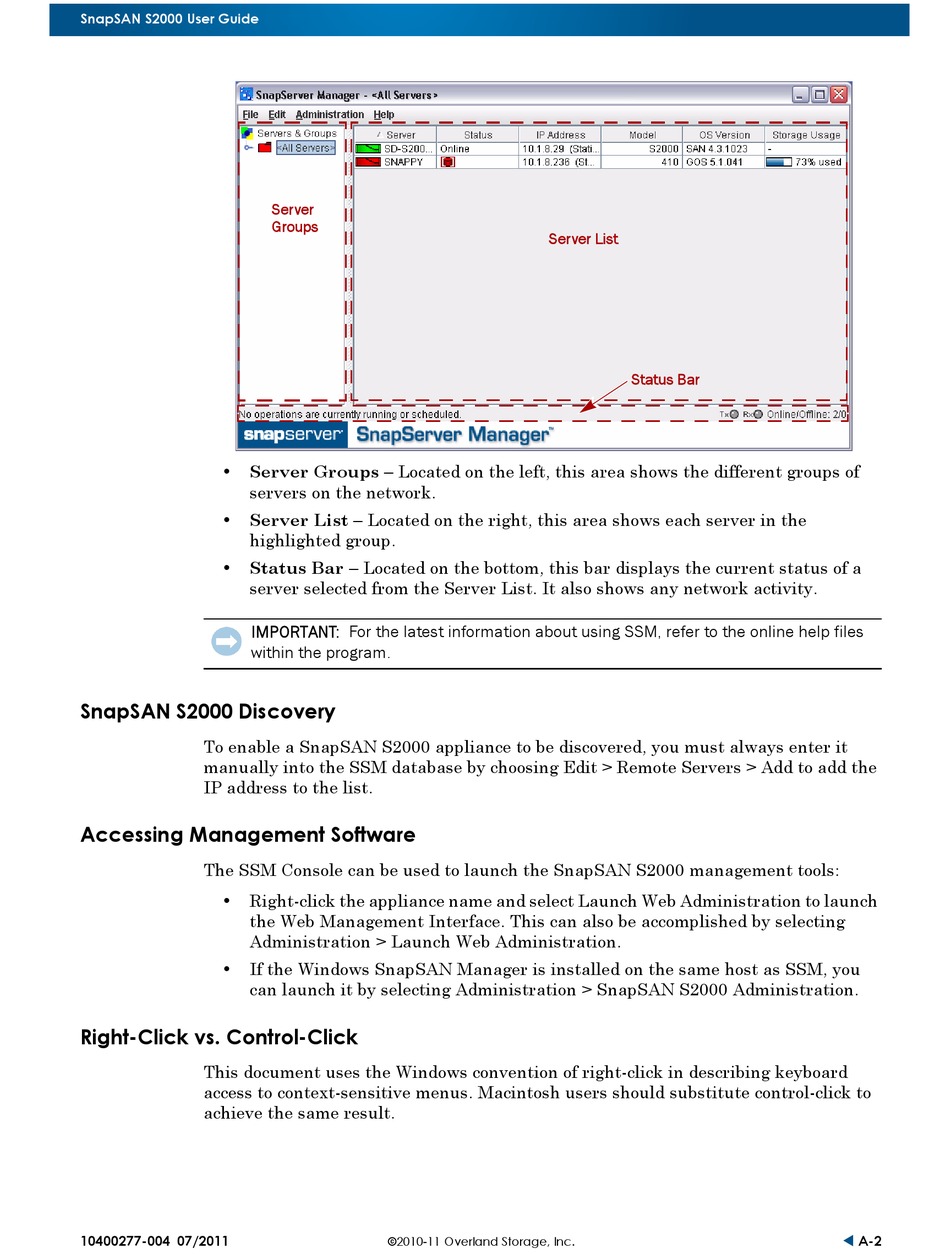

• Server Groups – Located on the left, this area shows the different groups of
servers on the network.
• Server List – Located on the right, this area shows each server in the
highlighted group.
• Status Bar – Located on the bottom, this bar displays the current status of a
server selected from the Server List. It also shows any network activity.
IMPORTANT: For the latest information about using SSM, refer to the online help files
within the program.

SnapSAN S2000 Discovery

To enable a SnapSAN S2000 appliance to be discovered, you must always enter it
manually into the SSM database by choosing Edit > Remote Servers > Add to add the
IP address to the list.

Accessing Management Software

The SSM Console can be used to launch the SnapSAN S2000 management tools:
• Right-click the appliance name and select Launch Web Administration to launch
the Web Management Interface. This can also be accomplished by selecting
Administration > Launch Web Administration.
• If the Windows SnapSAN Manager is installed on the same host as SSM, you
can launch it by selecting Administration > SnapSAN S2000 Administration.

Right-Click vs. Control-Click

This document uses the Windows convention of right-click in describing keyboard
access to context-sensitive menus. Macintosh users should substitute control-click to
achieve the same result.
10400277-004 07/2011
Server
Groups
©2010-11 Overland Storage, Inc.
Server List
Status Bar
A-2
