NEO SERIES Libraries
Fibre Channel Option Card
Quick Start Guide
IMPORTANT:
Overland Storage recommends that all
TM
V.I.A.
cards be removed and replaced by an Overland
Storage authorized service provider. Improper installation
may result in damage which voids existing warranties.
The Virtual Interface Architecture (V.I.A.) Fibre Channel
Option version 3 (FCO3) card is a RoHS (Restriction of
Hazardous Substances) compliant 4 Gbps Fibre Channel
(FC)-to-Small Computer System Interface (SCSI) bridge
that enables connectivity between Overland NEO SERIES
libraries and fibre channel host or SAN.
Electrostatic Discharge (ESD)
A discharge of static electricity can damage micro-circuitry
or static-sensitive devices. To help prevent electrostatic
damage, observe all standard ESD procedures including:
• Use a wrist strap and properly grounded tools.
Ejector
Port 1
Handle/Latch
Activity LED
Port 2
Activity LED
CAUTION:
The right-most option slot in the primary card cage
must ALWAYS contain the Library Controller card. Insertion of
an FCO3 card into this slot will damage the PCI backplane and
render the library inoperable.
The FCO3 card can be added to any available V.I.A. bay
located at the rear of a NEO SERIES library. On the NEO
4000 and NEO 8000, this includes the Expansion or
Secondary card cages
(Figure 2 on page
Part Number 10400046-101 09/2006
TM
Overview & Notes
FC Port
SCSI Port 1
with SFP
SCSI Port 1
Fibre Channel
SCSI Port 2
SCSI Port 2

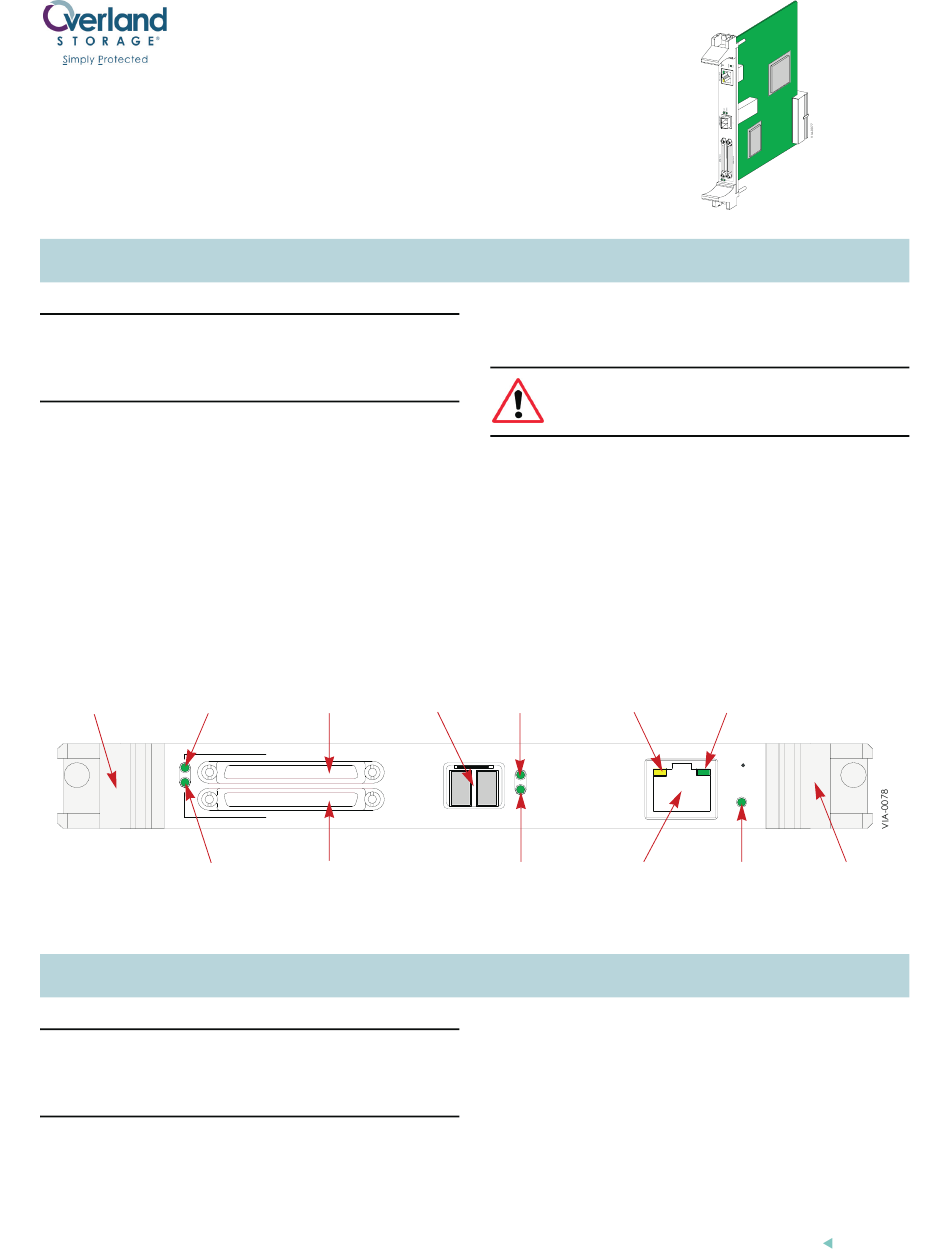

Figure 1. FCO3 Card Connections and Indicators

FCO3 Card Installation

2).
©2006 Overland Storage, Inc.
• Make sure you are always properly grounded.
• Keep the work area free of non-conductive materials.
WARNING: To reduce the risk of electric shock or
damage to equipment, disconnect the power by
unplugging the power cord.

Unpacking

Carefully unpack and verify that you have all the parts:
• FCO3 V.I.A. card
• 4 / 2 / 1 Gbps capable SFP (Small Form-Factor
Plugable) optical transceiver
• Ethernet crossover cable
• FCO3 Software And Documentation CD
• This quick install guide
Activity
Link LED
LED
Ethernet
Link
Activity
Activity LED
Ethernet
Port
1. Before installing the card, make a note of the serial
number for use during configuration.
2. Power down the NEO library.
On the NEO 8000, also open the circuit breakers.
3. Remove all power cords from the library.
4. Using a Phillips screwdriver, remove the cover plate
of the V.I.A. option bay where the FCO3 card will go.
Link
LED
Reset
Ready
Fault
Ejector
Ready or
Handle/Latch
Fault LED
1
Page
of
4
