SnapSAN S2000 User Guide

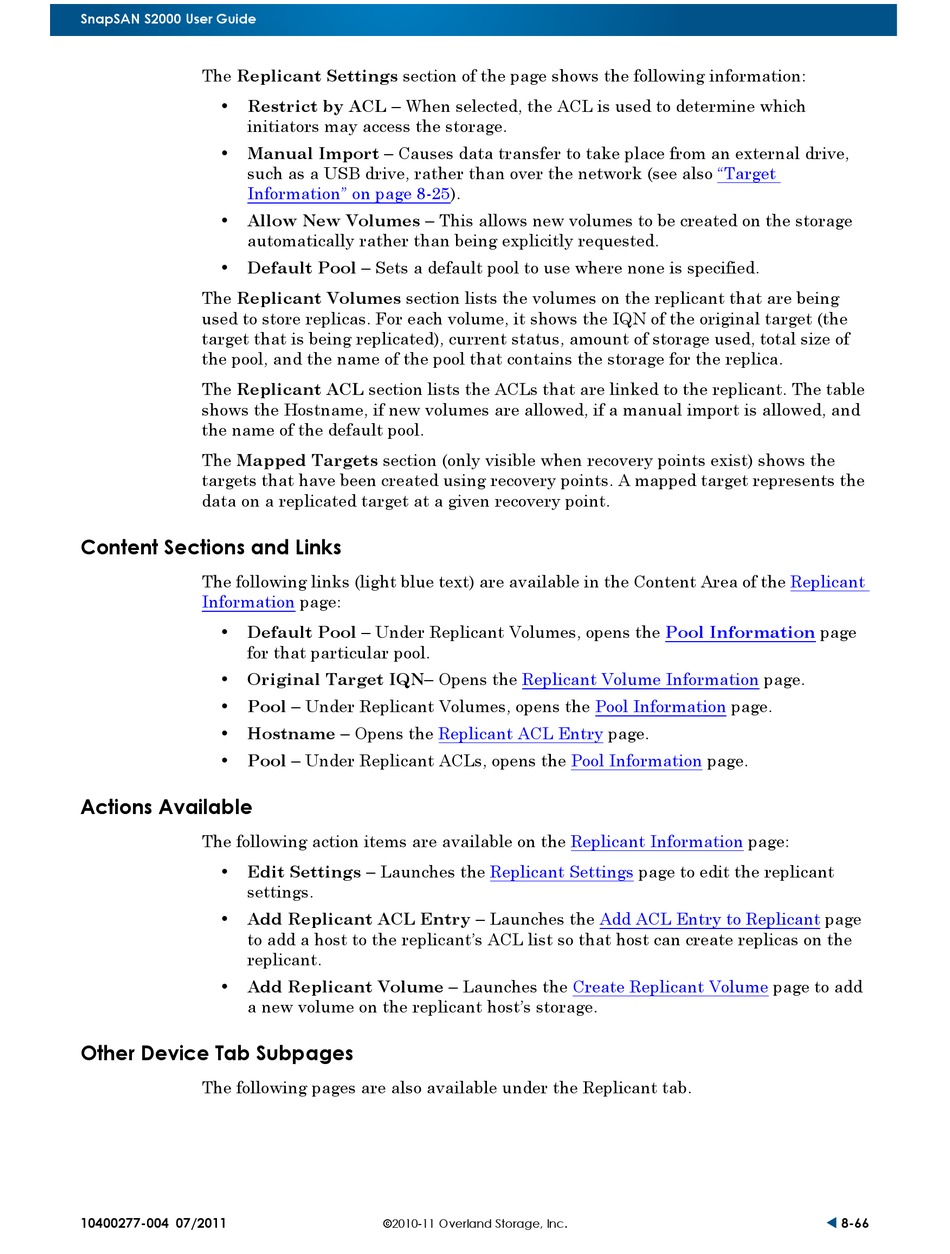

The Replicant Settings section of the page shows the following information:
• Restrict by ACL – When selected, the ACL is used to determine which
initiators may access the storage.
• Manual Import – Causes data transfer to take place from an external drive,
such as a USB drive, rather than over the network (see also
Information" on page
• Allow New Volumes – This allows new volumes to be created on the storage
automatically rather than being explicitly requested.
• Default Pool – Sets a default pool to use where none is specified.
The Replicant Volumes section lists the volumes on the replicant that are being
used to store replicas. For each volume, it shows the IQN of the original target (the
target that is being replicated), current status, amount of storage used, total size of
the pool, and the name of the pool that contains the storage for the replica.
The Replicant ACL section lists the ACLs that are linked to the replicant. The table
shows the Hostname, if new volumes are allowed, if a manual import is allowed, and
the name of the default pool.
The Mapped Targets section (only visible when recovery points exist) shows the
targets that have been created using recovery points. A mapped target represents the
data on a replicated target at a given recovery point.

Content Sections and Links

The following links (light blue text) are available in the Content Area of the
Information
• Default Pool – Under Replicant Volumes, opens the
for that particular pool.
• Original Target IQN– Opens the
• Pool – Under Replicant Volumes, opens the
• Hostname – Opens the
• Pool – Under Replicant ACLs, opens the

Actions Available

The following action items are available on the
• Edit Settings – Launches the
settings.
• Add Replicant ACL Entry – Launches the
to add a host to the replicant's ACL list so that host can create replicas on the
replicant.
• Add Replicant Volume – Launches the
a new volume on the replicant host's storage.

Other Device Tab Subpages

The following pages are also available under the Replicant tab.
10400277-004 07/2011
8-25).
page:
Replicant ACL Entry
©2010-11 Overland Storage, Inc.
Pool Information
Replicant Volume Information
Pool Information
page.
Pool Information
Replicant Information
Replicant Settings page to edit the replicant
Add ACL Entry to Replicant
Create Replicant Volume
"Target
Replicant
page
page.
page.
page.
page:
page
page to add
8-66
