SnapSAN S2000 User Guide

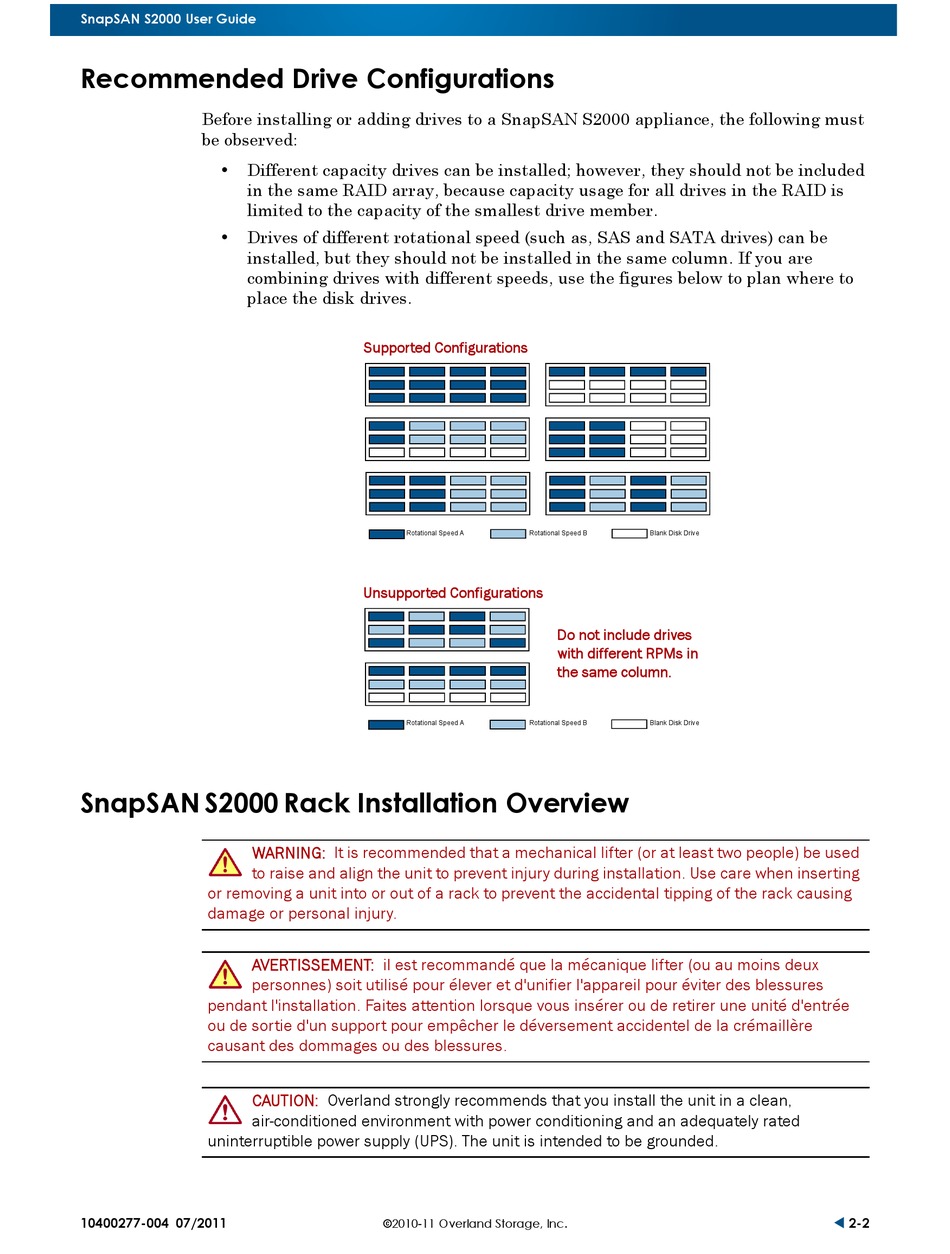

Recommended Drive Configurations

Before installing or adding drives to a SnapSAN S2000 appliance, the following must
be observed:
• Different capacity drives can be installed; however, they should not be included
in the same RAID array, because capacity usage for all drives in the RAID is
limited to the capacity of the smallest drive member.
• Drives of different rotational speed (such as, SAS and SATA drives) can be
installed, but they should not be installed in the same column. If you are
combining drives with different speeds, use the figures below to plan where to
place the disk drives.

SnapSAN S2000 Rack Installation Overview

WARNING: It is recommended that a mechanical lifter (or at least two people) be used
to raise and align the unit to prevent injury during installation. Use care when inserting
or removing a unit into or out of a rack to prevent the accidental tipping of the rack causing
damage or personal injury.
AVERTISSEMENT: il est recommandé que la mécanique lifter (ou au moins deux
personnes) soit utilisé pour élever et d'unifier l'appareil pour éviter des blessures
pendant l'installation. Faites attention lorsque vous insérer ou de retirer une unité d'entrée
ou de sortie d'un support pour empêcher le déversement accidentel de la crémaillère
causant des dommages ou des blessures.
CAUTION:
air-conditioned environment with power conditioning and an adequately rated
uninterruptible power supply (UPS). The unit is intended to be grounded.
10400277-004 07/2011
Supported Configurations
Rotational Speed A
Unsupported Configurations
Rotational Speed A
Overland strongly recommends that you install the unit in a clean,
©2010-11 Overland Storage, Inc.
Rotational Speed B Blank Disk Drive
Do not include drives
with different RPMs in
the same column.
Rotational Speed B Blank Disk Drive
2-2
