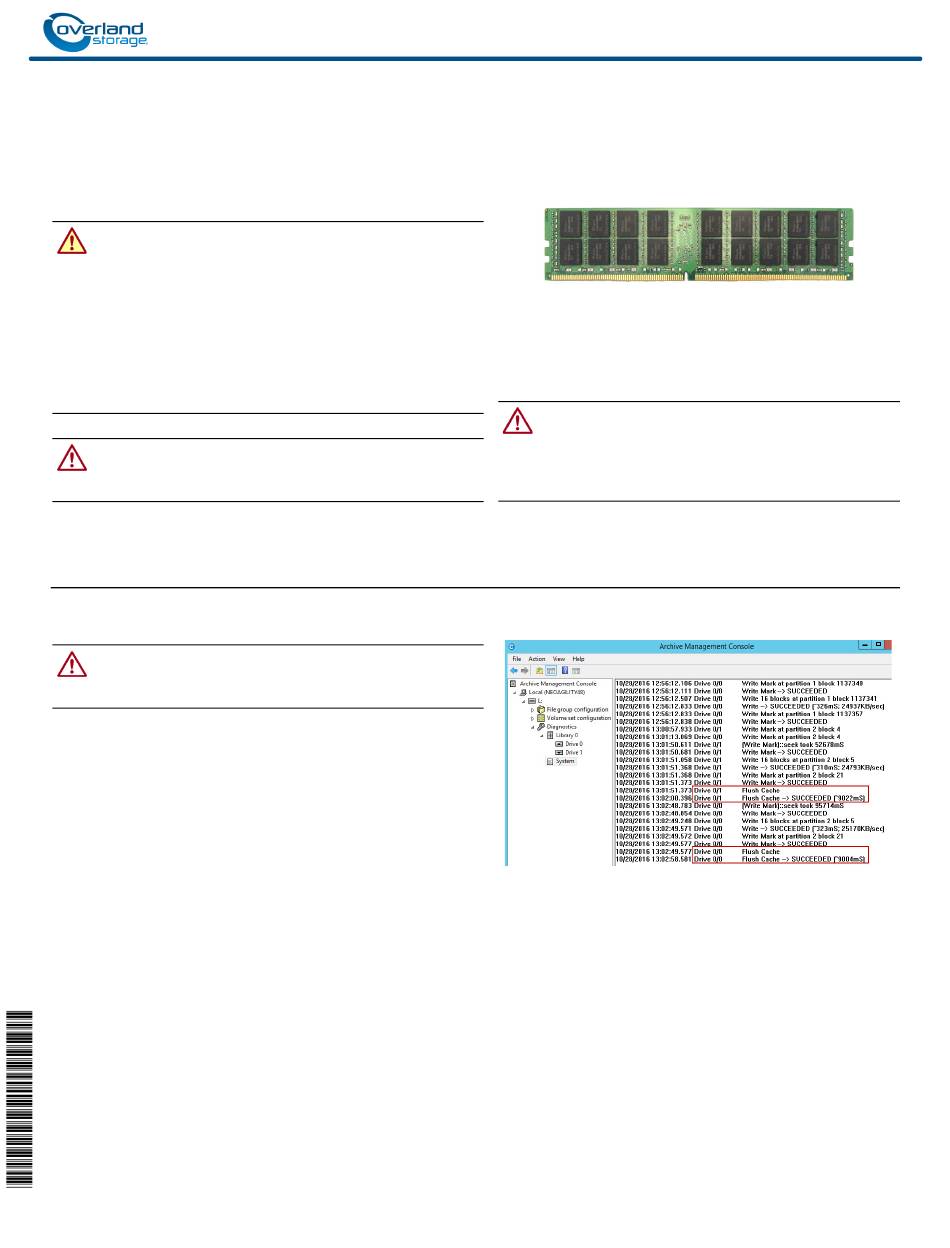

Add-on/Spare DIMM Instructions
This document describes how to either add an additional
DIMM (Dual In-line Memory Module) to or remove and replace
an existing DIMM in a NEO Agility appliance from Overland
Storage.
WARNING:
To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working with
the appliance.
WARNUNG:
Um das Risiko eines elektrischen Schlags oder
Schäden am Gerät zu vermeiden, ziehen Sie stets den
Netzstecker, bevor Sie an der Einheit arbeiten.
AVERTISSEMENT:
Pour réduire le risque de choc électrique
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the appliance, observe
standard Electrostatic Discharge (ESD) precautions to prevent
damage to micro-circuitry or static-sensitive devices.
Prepare the Appliance
Power Appliance Off
CAUTION:
Make sure all processes are inactive and idle
before shutting down the NEO Agility appliance before
continuing to prevent data corruption and loss.
1. Log into the appliance as an administrator.
Use either console or remote desktop as appropriate.
2. Verify that all host processes are idle.
3. From the Agility Management Console, verify that all
queued tape write operations have completed.
Review the last entries in the Diagnostics > System log for
the Flush Cache > SUCCEEDED events for all tape
drives.
4. Right-click the Windows logo in the lower-left corner and
select Shutdown or sign out > Shutdown.
10400769-001
CAUTION:
Overland Storage will void your warranty. Overland
Storage DIMMs have been tested and verified to operate
properly with Overland appliances. Failure to use qualified
DIMMs may impact data availably or lead to data loss.
©2016 Overland Storage, Inc.
NEO
Agility Appliances
®
Installing DIMMs that are not supplied by
Page 1 of 5
