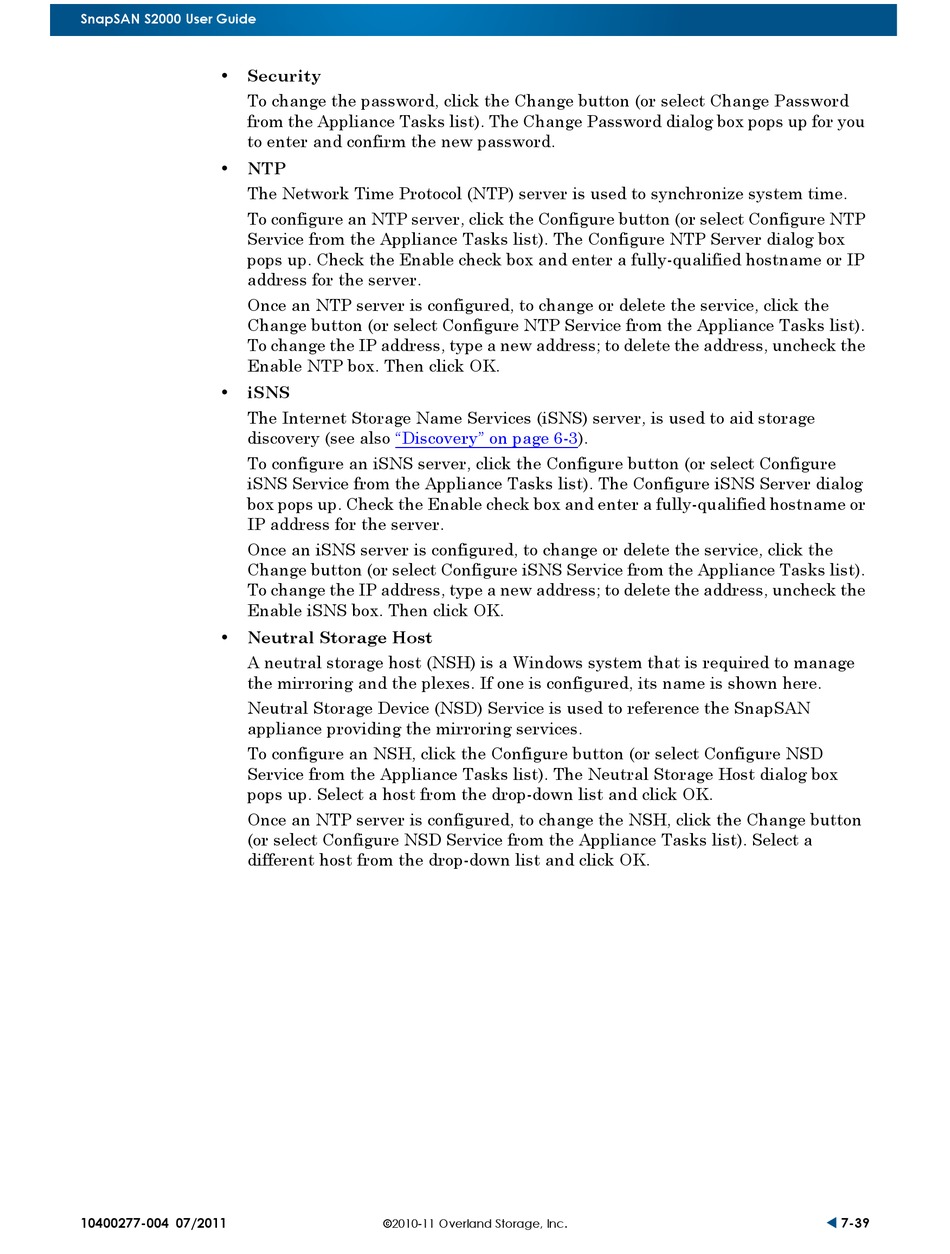

Overland Storage SnapSAN S2000 User Manual page 112

SnapSAN S2000 User Guide
• Security
To change the password, click the Change button (or select Change Password
from the Appliance Tasks list). The Change Password dialog box pops up for you
to enter and confirm the new password.
• NTP
The Network Time Protocol (NTP) server is used to synchronize system time.
To configure an NTP server, click the Configure button (or select Configure NTP
Service from the Appliance Tasks list). The Configure NTP Server dialog box
pops up. Check the Enable check box and enter a fully-qualified hostname or IP
address for the server.
Once an NTP server is configured, to change or delete the service, click the
Change button (or select Configure NTP Service from the Appliance Tasks list).
To change the IP address, type a new address; to delete the address, uncheck the
Enable NTP box. Then click OK.
• iSNS
The Internet Storage Name Services (iSNS) server, is used to aid storage
discovery (see also
To configure an iSNS server, click the Configure button (or select Configure
iSNS Service from the Appliance Tasks list). The Configure iSNS Server dialog
box pops up. Check the Enable check box and enter a fully-qualified hostname or
IP address for the server.
Once an iSNS server is configured, to change or delete the service, click the
Change button (or select Configure iSNS Service from the Appliance Tasks list).
To change the IP address, type a new address; to delete the address, uncheck the
Enable iSNS box. Then click OK.
• Neutral Storage Host
A neutral storage host (NSH) is a Windows system that is required to manage
the mirroring and the plexes. If one is configured, its name is shown here.
Neutral Storage Device (NSD) Service is used to reference the SnapSAN
appliance providing the mirroring services.
To configure an NSH, click the Configure button (or select Configure NSD
Service from the Appliance Tasks list). The Neutral Storage Host dialog box
pops up. Select a host from the drop-down list and click OK.
Once an NTP server is configured, to change the NSH, click the Change button
(or select Configure NSD Service from the Appliance Tasks list). Select a
different host from the drop-down list and click OK.
10400277-004 07/2011
"Discovery" on page 6-3).
©2010-11 Overland Storage, Inc.
7-39
