DT7 Desk: Assembly Instructions

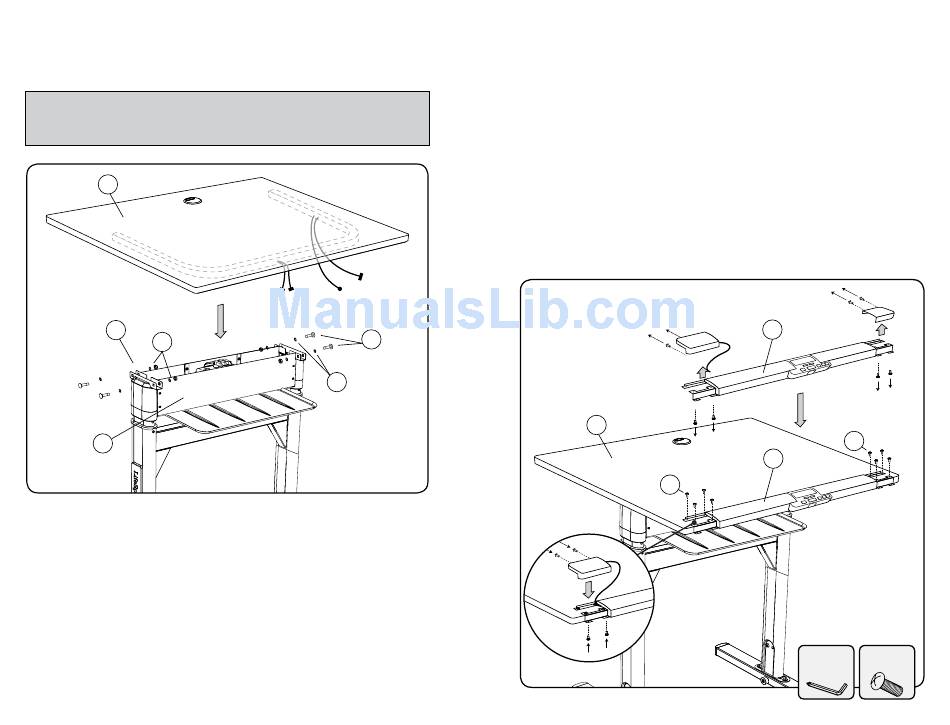

Step 4: Desktop Assembly
NOTE: It is a good idea to use two people for this portion of the
assembly in order to be sure wires are properly routed and do not
get pinched while installing the desktop.
2
C
8
1
A. Remove the Bolts (7), Washers (5), and Nuts (8) pre-installed in the upright
assembly posts.
B. Hold the Desktop (2) over the Lift Frame (1) and place the Desk Height
Control Wire Harness and the Console Wire Harness into the center of the
Lift Frame (1). Place the connector ends towards the center of the tray for
easy access in the next steps of the assembly.
C. Set the Desktop down into the Mounting Brackets (C) on the extension
tubes, align the mounting holes and re-install the hardware removed in
step A.
D. Tighten the Desktop Mounting Bolts/Nuts.
20
Console Wire
Harness
Console Desk Height Control
Wires Wire Harness
7
5
Step 5: Console Assembly
A. Using the 5mm Allen Wrench with Screwdriver (20) take out the two pre-
installed screws from the back and two screws from the bottom of each
console end cap so you can remove the end caps. Notice the difference in
the screws from the back and bottom as you will be replacing them back
into their proper place.
B. Align the screw holes in the Console Bracket (14) with the pre-drilled holes
in the Desktop (2).
C. Using eight #8x5/8L Screws (16) attach the Console (14) to the Desktop (2).
D. Re-install the end caps with the pre-installed screws you removed in
Step A.
Step 5A: Remove End Caps
Step 5B & C:
Attach Console
2
16
Step 5D:
Re-install
End Caps
DT7 Desk:
Assembly Instructions
14
16
14
5mm Allen #8x5/8L
Wrench w/
Screw
Phillips
