LifeSpan DT5 Owner's Manual page 10

DT7 Desk: Assembly Instructions

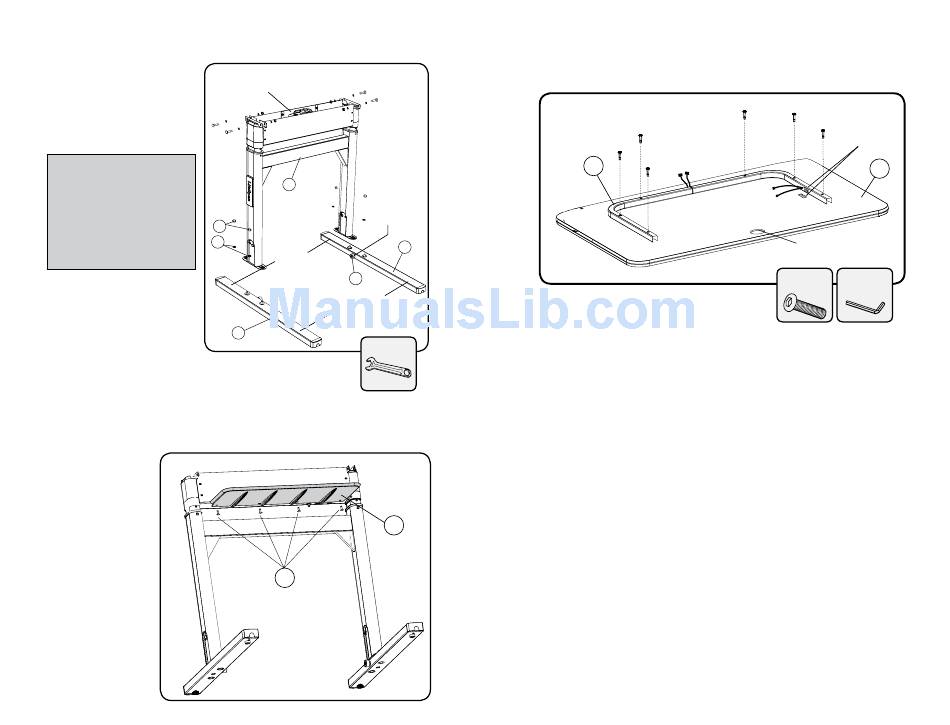

Step 1: Lift Frame Assembly
A. Position the Lift Frame (1),
Left Base Foot (3) and Right
Base Foot (4) as shown in
the figure to the right.
NOTE: The position of the
Desk Position Bumpers (A)
face inward, and the
long side of the Right
and Left Base Feet (3, 4)
are opposite of the
Access Panel
B. Place the lift frame
onto the left and right
base feet mounting
bolts and install the M10
washers (11) and M10
acorn nuts (6).
C. Tighten the four mounting
nuts.
Step 2: Accessory Tray Assembly
A. Remove the four
Screws (9) pre-
installed in the
bottom of the
Upright Assembly
Crossbar.
B. Line the holes in
the accessory tray
(10) with the holes
in the Crossbar.
C. Install four M8
washers and
M8x15 bolts (9) and
tighten.
18
17
16a
15
Access
Panel
Desk
Position
Bumpers
1
face
inward
6
Short
11
Side
A
Long Side
3
Wrench
10
9
14
13
Step 3: Attach U-Frame to Underside of Desk
4
A. Lay the Desktop (2) face down on a smooth clean surface to attach the
U-Frame (13).
B. Position the U-Frame (13) as shown to the underside of the Desktop (2).
Be sure the open part of the frame faces toward the Cable Hole. The
stickers labeled "RRR" on the Desktop and U-Frame should be matched
together when assembled.
C. Attach the U-Frame to the Desktop using the six M6x40L Screws (15) using
the 4mm Allen Wrench (19).
DT7 Desk:
13
Assembly Instructions
"RRR"
Stickers
2
Cable Hole
M6x40L 4mm Allen
Screw Wrench
19
