Icom iC-M605 Instruction Manual page 13

q DISTRESS KEY [DISTRESS] (p. 31)
Hold down for 3 seconds to transmit a Distress call.
w ENTER KEY [ENT]
Push to set the entered data, selected item, and so on.
e LEFT AND RIGHT KEYS [◄]/[►]
z Push to scroll the Software Key functions. (p. 5)
z In the character or number entry mode, push to select
a character or number in the keypad. (p. 20)
r UP AND DOWN/CHANNEL SELECT KEYS [▲]/[▼]
z Push to select an operating channel, (p. 14), Menu
items, Menu settings, (p. 13) and so on.
z While scanning, push to check the Favorite channels,
change the scanning direction or manually resume a
scan. (p. 23)
t KEYPAD
Push to enter numbers, letters or symbols.
For channel number entry, see page 14.
For channel name entry, see page 20
y POWER KEY [ ]
Hold down for 1 second to turn the transceiver ON or
OFF.

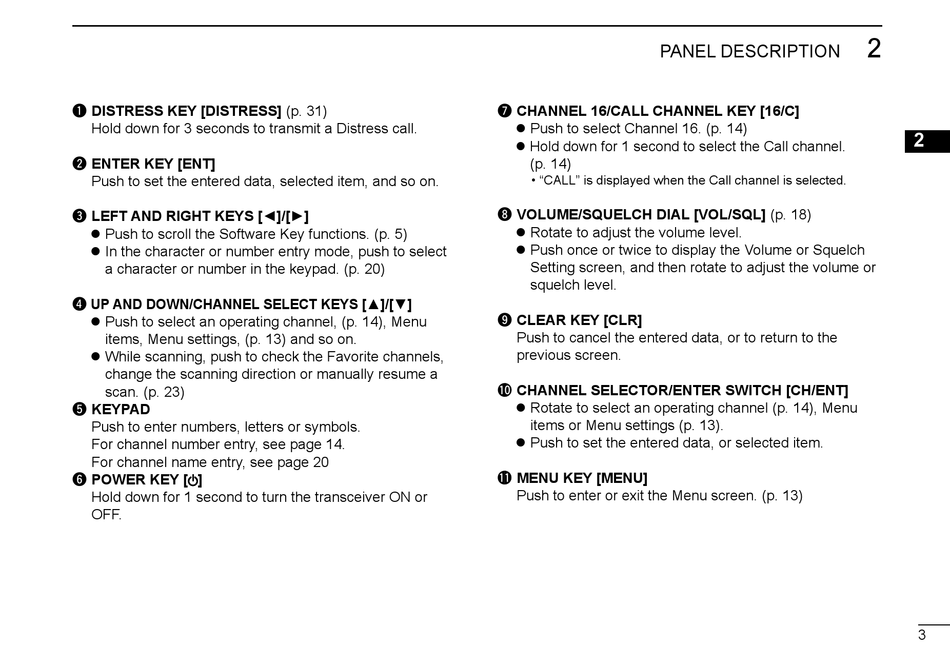

PANEL DESCRIPTION
u CHANNEL 16/CALL CHANNEL KEY [16/C]
z Push to select Channel 16. (p. 14)
z Hold down for 1 second to select the Call channel.
(p. 14)
• "CALL" is displayed when the Call channel is selected.
i VOLUME/SQUELCH DIAL [VOL/SQL] (p. 18)
z Rotate to adjust the volume level.
z Push once or twice to display the Volume or Squelch
Setting screen, and then rotate to adjust the volume or
squelch level.
o CLEAR KEY [CLR]
Push to cancel the entered data, or to return to the
previous screen.
!0 CHANNEL SELECTOR/ENTER SWITCH [CH/ENT]
z Rotate to select an operating channel (p. 14), Menu
items or Menu settings (p. 13).
z Push to set the entered data, or selected item.
!1 MENU KEY [MENU]
Push to enter or exit the Menu screen. (p. 13)
