You can use the Menu screen to
set infrequently changed values or
function settings.

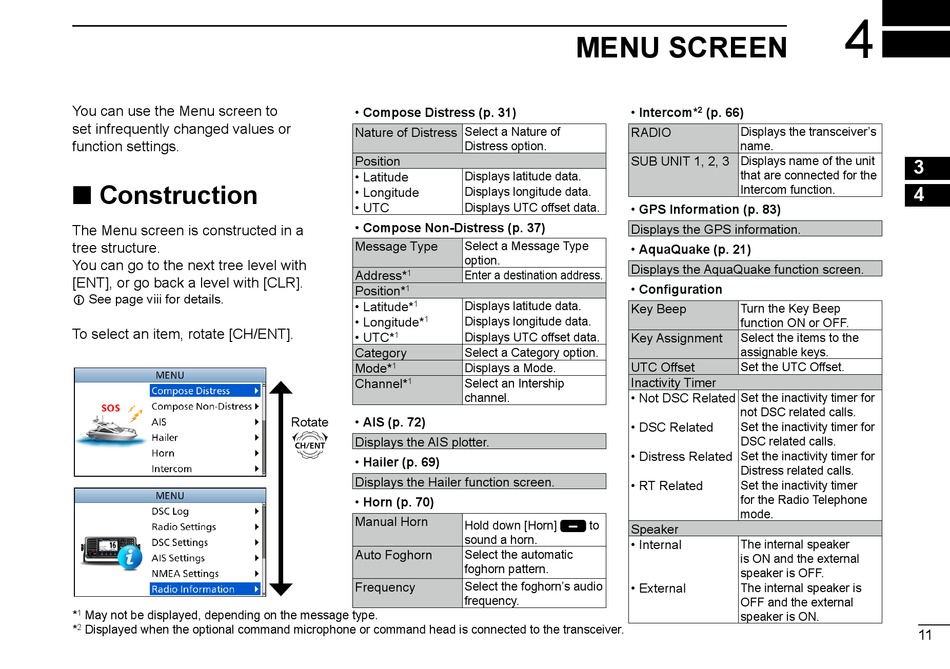

■ Construction

The Menu screen is constructed in a
tree structure.
You can go to the next tree level with
[ENT], or go back a level with [CLR].
L See page viii for details.
To select an item, rotate [CH/ENT].
* May not be displayed, depending on the message type.
1
* 2 Displayed when the optional command microphone or command head is connected to the transceiver.
• Compose Distress (p. 31)
Nature of Distress Select a Nature of
Distress option.
Position
• Latitude Displays latitude data.
• Longitude Displays longitude data.
• UTC Displays UTC offset data.
• Compose Non-Distress (p. 37)
Message Type Select a Message Type
option.
Address* 1 Enter a destination address.
Position* 1
• Latitude* 1 Displays latitude data.
• Longitude* 1 Displays longitude data.
• UTC* 1 Displays UTC offset data.
Category
Select a Category option.
Mode* 1 Displays a Mode.
Channel* 1
Select an Intership
channel.
Rotate • AIS (p. 72)
Displays the AIS plotter.
• Hailer (p. 69)
Displays the Hailer function screen.
• Horn (p. 70)
Manual Horn
Hold down [Horn]
sound a horn.
Auto Foghorn Select the automatic
foghorn pattern.
Frequency Select the foghorn's audio
frequency.

MENU SCREEN

• Intercom* 2 (p. 66)
RADIO Displays the transceiver's
name.
SUB UNIT 1, 2, 3 Displays name of the unit
that are connected for the
Intercom function.
• GPS Information (p. 83)
Displays the GPS information.
• AquaQuake (p. 21)
Displays the AquaQuake function screen.
• Configuration
Key Beep Turn the Key Beep
function ON or OFF.
Key Assignment Select the items to the
assignable keys.
UTC Offset Set the UTC Offset.
Inactivity Timer
• Not DSC Related Set the inactivity timer for
not DSC related calls.
• DSC Related Set the inactivity timer for
DSC related calls.
• Distress Related Set the inactivity timer for
Distress related calls.
• RT Related Set the inactivity timer
for the Radio Telephone
mode.
to
Speaker
• Internal The internal speaker
is ON and the external
speaker is OFF.
• External The internal speaker is
OFF and the external
speaker is ON.
