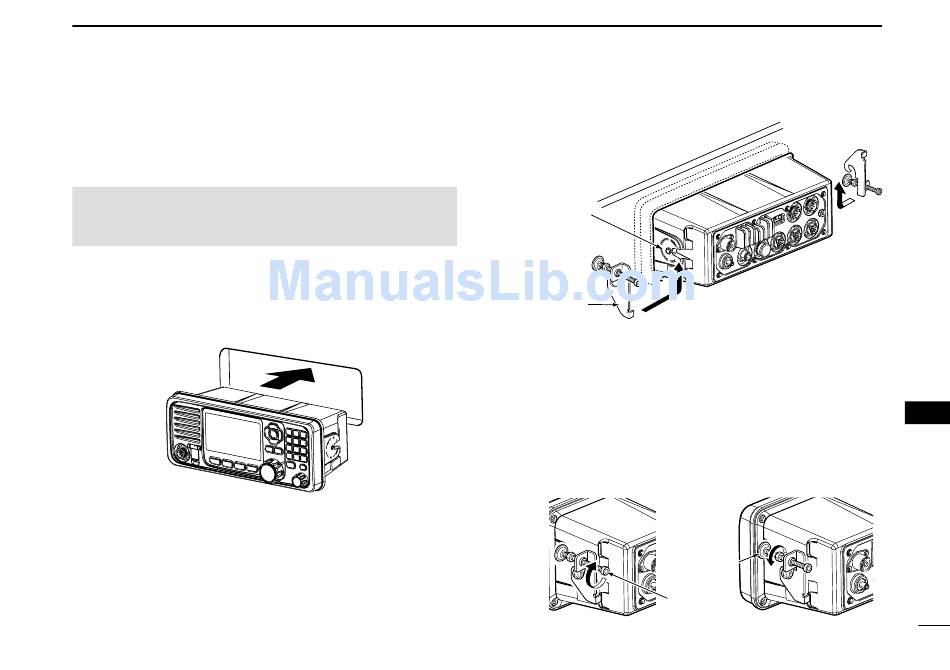

■ MB-75 installation

An optional MB-75
flush mount kit
transceiver to a flat surface such as an instrument panel.
CAUTION: Keep the transceiver and microphone at least
1 meter (3.3 feet) away from your vessel's magnetic
navigation compass.
1. Using the template comes with the transceiver,
carefully cut a hole in the instrument panel, or wherever
you plan to mount the transceiver.
2. Slide the transceiver through the hole, as shown below.
3. Attach the 2 supplied (M5 × 8 mm) bolts on both sides
of the transceiver.
4. Attach the clamps on both sides of the transceiver.
5. Make sure that the clamps align parallel to the
transceiver's body.
is used to mount the
CONNECTIONS AND MAINTENANCE
Supplied
bolt
Clamp
6. Tighten the end bolts on the clamps (rotate clockwise)
so that they press firmly against the inside of the
instrument control panel. (Torque: 0.6 N•m)
7. Tighten the locking nuts (rotate counterclockwise) so
that the transceiver is securely mounted in position, as
shown below.
8. Connect the antenna and power cable, then return the
instrument control panel to its original place.
End bolt
12
Locking
nut
