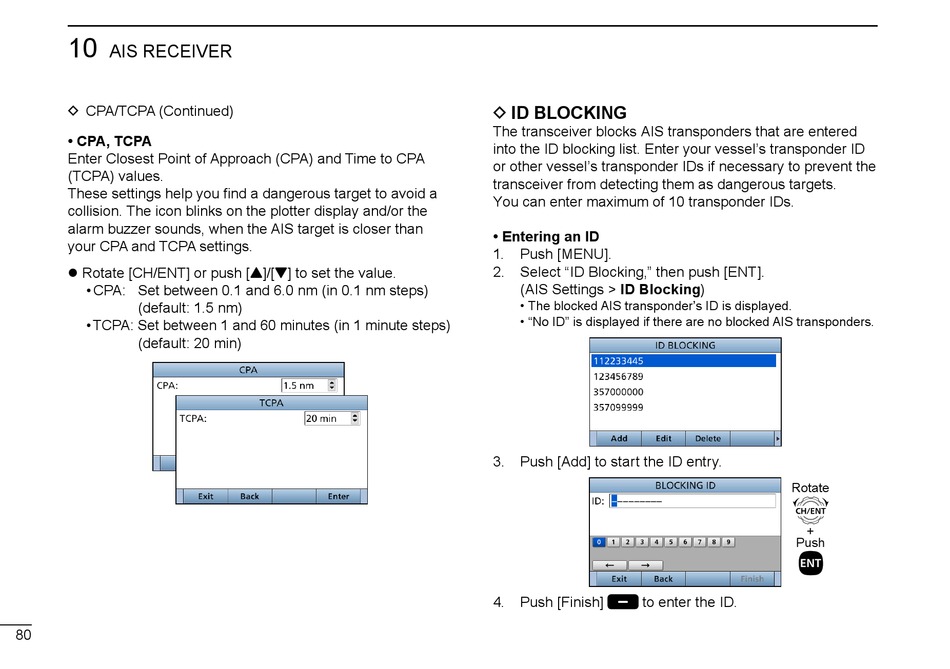

Icom iC-M605 Instruction Manual page 90

10
AIS RECEIVER
D CPA/TCPA (Continued)
• CPA, TCPA
Enter Closest Point of Approach (CPA) and Time to CPA
(TCPA) values.
These settings help you find a dangerous target to avoid a
collision. The icon blinks on the plotter display and/or the
alarm buzzer sounds, when the AIS target is closer than
your CPA and TCPA settings.
z Rotate [CH/ENT] or push [Y]/[Z] to set the value.
• CPA: Set between 0.1 and 6.0 nm (in 0.1 nm steps)
(default: 1.5 nm)
• TCPA: Set between 1 and 60 minutes (in 1 minute steps)
(default: 20 min)
80
D ID BLOCKING
The transceiver blocks AIS transponders that are entered
into the ID blocking list. Enter your vessel's transponder ID
or other vessel's transponder IDs if necessary to prevent the
transceiver from detecting them as dangerous targets.
You can enter maximum of 10 transponder IDs.
• Entering an ID
1. Push [MENU].
2. Select "ID Blocking," then push [ENT].
(AIS Settings > ID Blocking)
• The blocked AIS transponder's ID is displayed.
• "No ID" is displayed if there are no blocked AIS transponders.
3. Push [Add] to start the ID entry.
4. Push [Finish] to enter the ID.
Rotate
+
Push
