How to Install

3.2 System Overview

This is only relevant if the MCO 305 is delivered as an
option for upgrading an existing VLT AutomationDrive.
When ordered with the frequency converter, MCO 305 is
preinstalled from factory. For retrofit, a mounting kit must
3 3
be purchased.
There is a different mounting kit for different frames. MCO
305 is to be used in slot C0 but can be combined with
another option in slot C1.

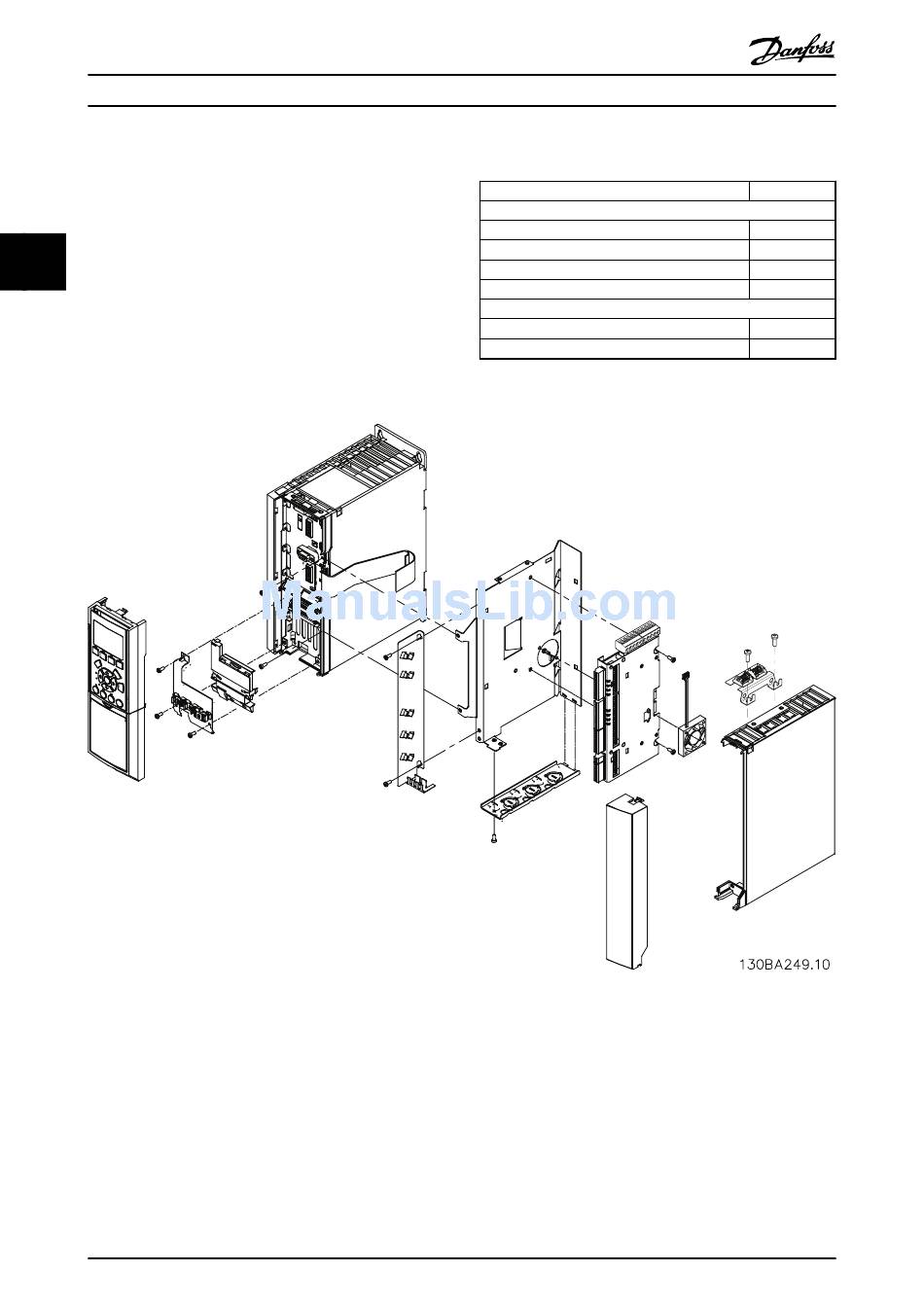

Illustration 3.1 Bookstyle - A2, A3, B3
8
MCO 305 Operating Instructions
Mounting kit depending on frame
Bookstyle
A2 and A3 (40 mm for one C option)
A2 and A3 (60 mm for C0 + C1 option)
B3 (40 mm for one C option)
B3 (60 mm for C0 + C1 option)
Compact
A5
B, C, D, E and F (except B3)
Do not mount the small fan for B4, C3, C4, D, E and F
®
MG.33.K3.02 - VLT is a registered Danfoss trademark
Order no.
130B7530
130B7531
130B1413
130B1414
130B7532
130B7533
