1.0 Installation Guide

Please Note:
This product should only be installed by a qualifi ed electrician or
competent heating installer and should be in accordance with the
current edition of the IEEE wiring regulations.

2.0 System Overview

GB
Specifi cation
Power supply
Switching action
Switch rating
Battery back-up
Timing Accuracy
Setting/Running Accuracy
Max. Ambient Temperature
Dimensions, mm (W, H, D)
Design standard
Control Pollution Situation
Rated Impulse Voltage
Ball Pressure Test

3.0 Installation

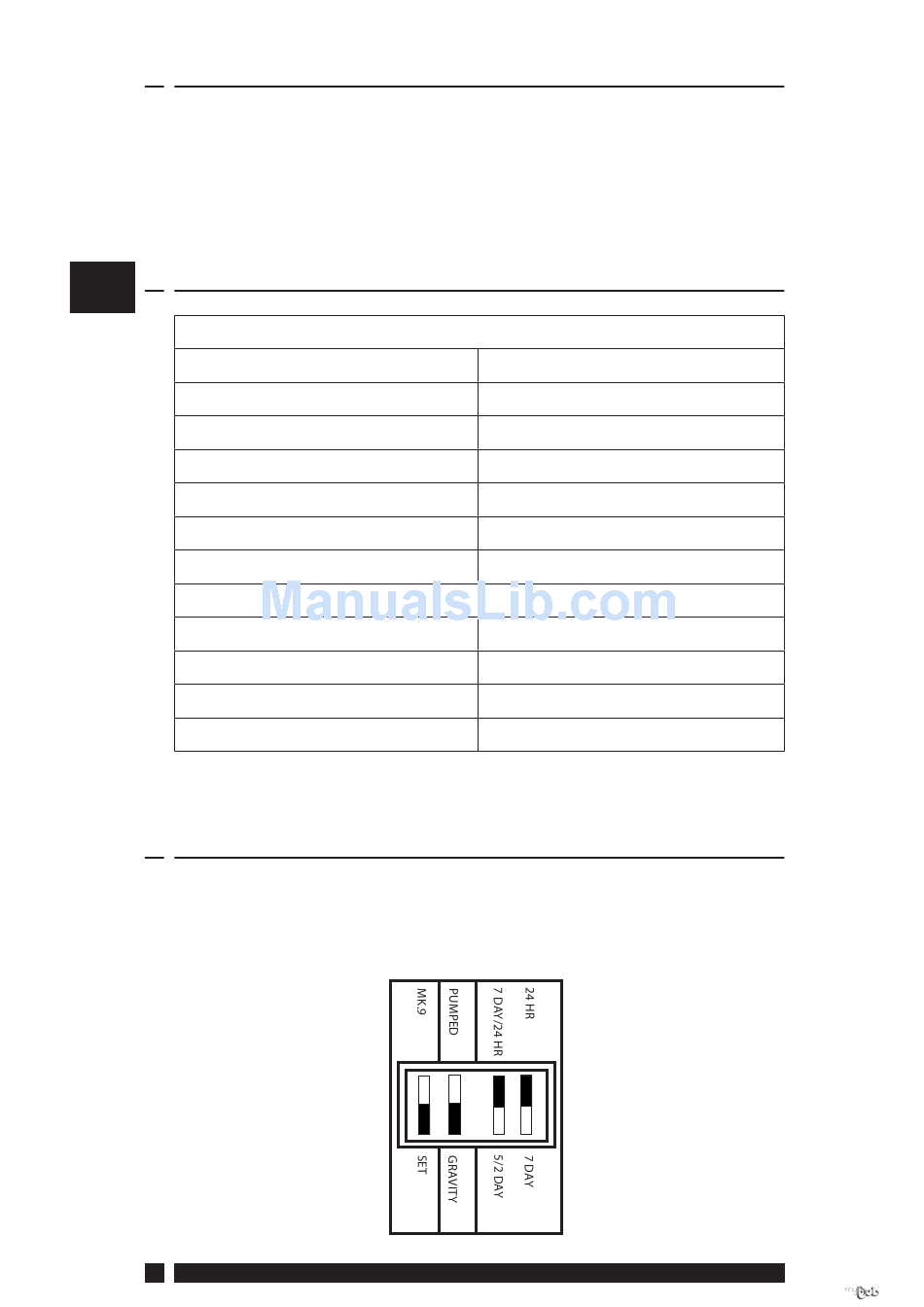

3.1 DIL Switch Settings

Before mounting the unit, ensure the 4 DIL switches on the rear of
the unit have been moved to the required settings.
4
